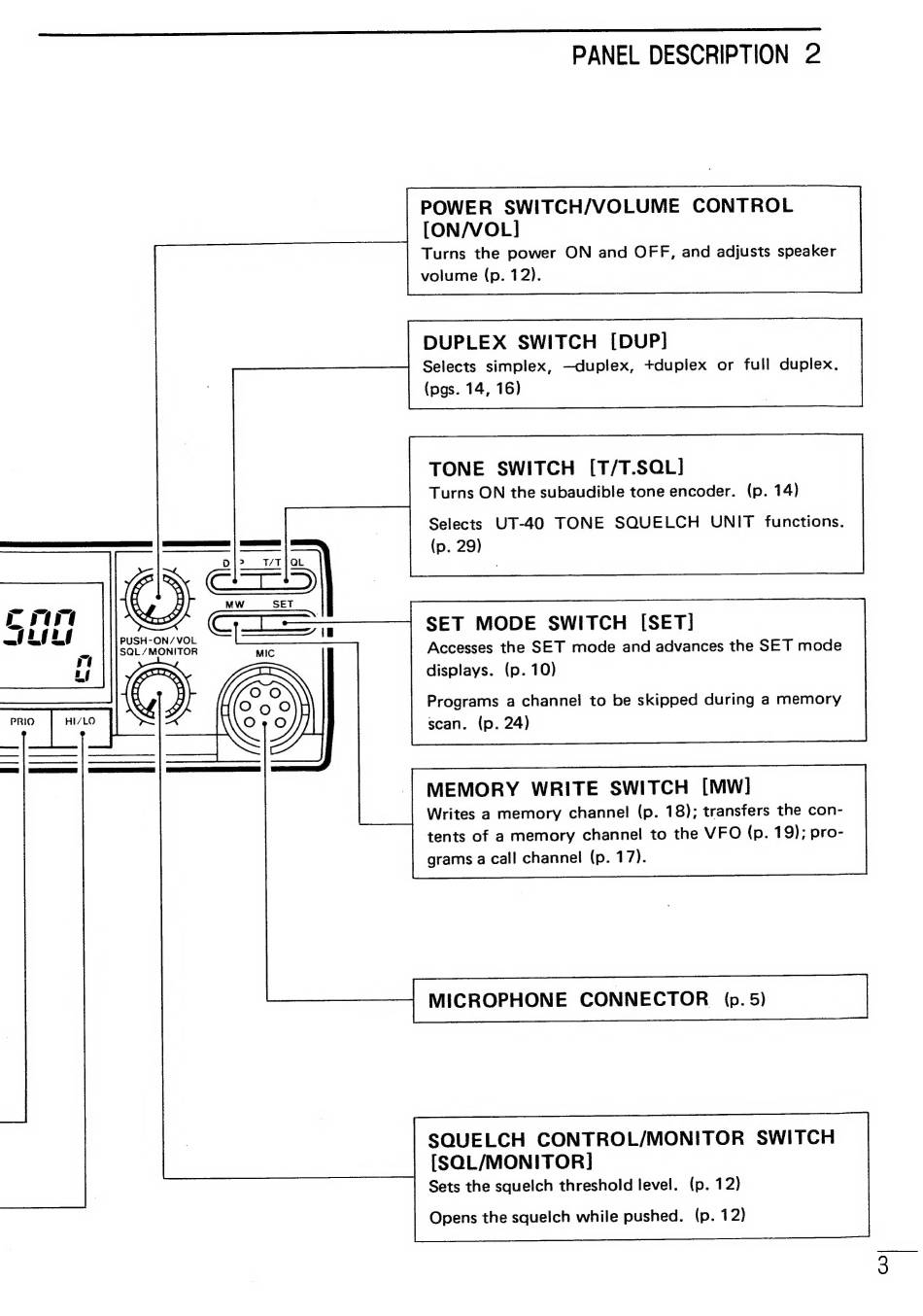

PANEL DESCRIPTION 2
POWER SWITCH/VOLUME CONTROL
[ON/VOL]
Turns
the power
ON and OFF, and adjusts speaker
volume (p. 12).
DUPLEX SWITCH [DUP]
Selects simplex, —duplex, +duplex or full duplex.
(pgs. 14, 16)
TONE SWITCH [T/T.SOL]
Turns ON the subaudible tone encoder.
(p. 14)
Selects UT-40 TONE SQUELCH UNIT functions.
(p. 29)
SET MODE SWITCH [SET]
Accesses the SET mode and advances the SET mode
displays. (p. 10)
PUSH-ON/ VOL
SQL/MONITOR
Programs a channel to be skipped during a memory
scan. (p. 24)
MEMORY WRITE SWITCH [MW]
Writes a memory channel (p. 18); transfers the con-
tents of a memory channel to the VFO (p. 19); pro-
grams a call channel (p. 17).
MICROPHONE CONNECTOR (p.5)
Opens the squelch while pushed. (p. 12)
"|
