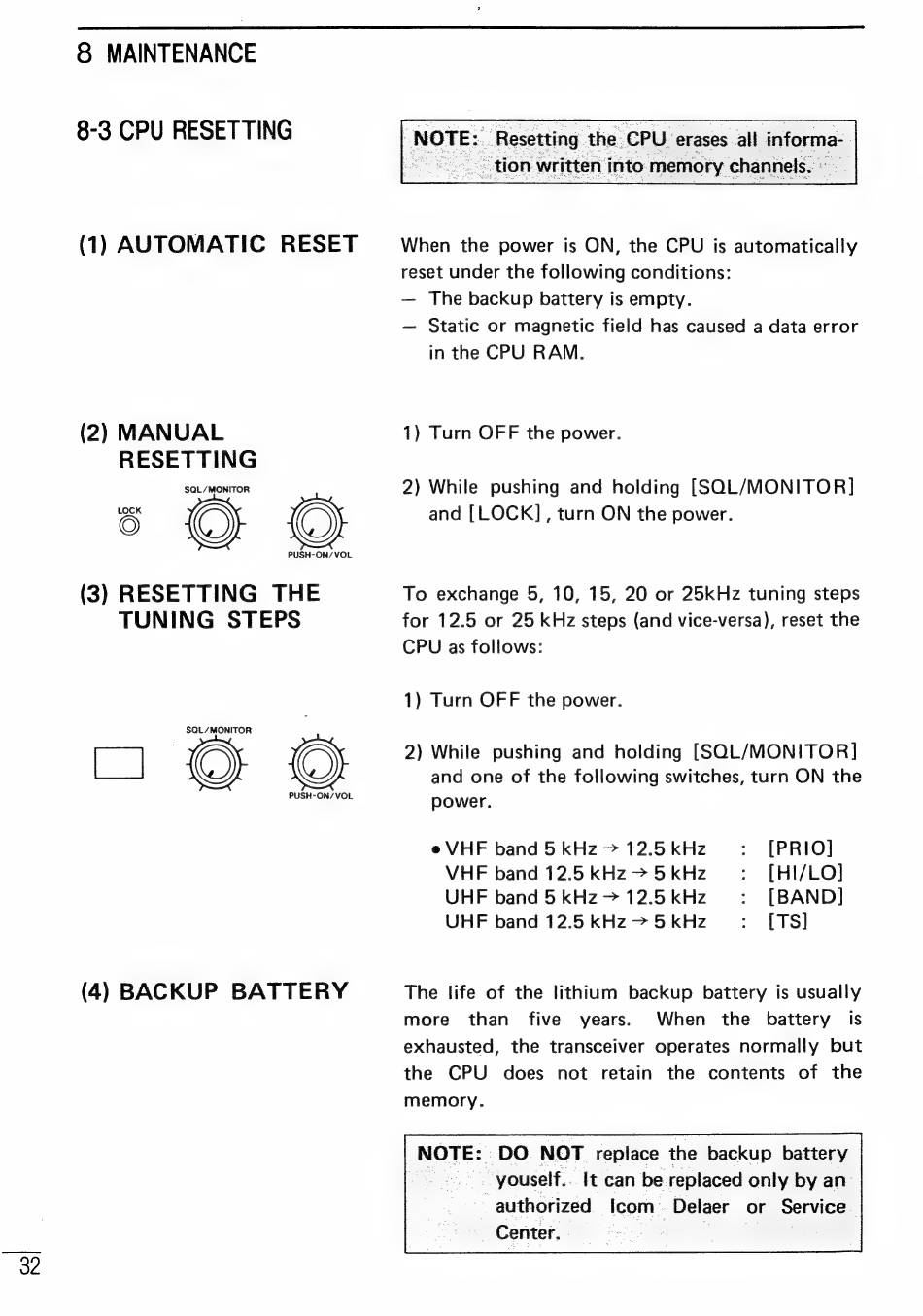

8 MAINTENANCE
8-3 CPU RESETTING
(1) AUTOMATIC RESET
(2) MANUAL
RESETTING
SQL/MONITOR
LOCK
PUSH-ON/ VOL
(3) RESETTING THE
TUNING STEPS
SQL/MONITOR
3268
PUSH-ON/VOL
(4) BACKUP BATTERY
When the power is ON, the CPU is automatically
reset under the following conditions:
— The backup battery is empty.
— Static or magnetic field has caused a data error
in the CPU RAM.
1) Turn OFF the power.
2) While pushing and holding [SOL/MONITOR]
and [LOCK], turn ON the power.
To exchange 5, 10, 15, 20 or 25kHz tuning steps
for 12.5 or 25 kHz steps (and vice-versa), reset the
CPU as follows:
1) Turn OFF the power.
2) While pushing and holding [SOL/MONITOR]
and one of the following switches, turn ON the
power.
e VHF band 5 kHz > 12.5bkHz : [PRIO]
VHF band 12.5 kHz > 5 kHz : [HI/LO]
UHF band 5 kHz ^ 12.5 kHz : [BAND]
UHF band 12.5 kHz ^ 5 kHz : [TS]
The life of the lithium backup battery is usually
more than five years. When the battery is
exhausted, the transceiver operates normally but
the CPU does not retain the contents of the
memory.
NOTE: . DO NOT replace the backup battery.
pe ... youself.. it can be replaced only by | an
