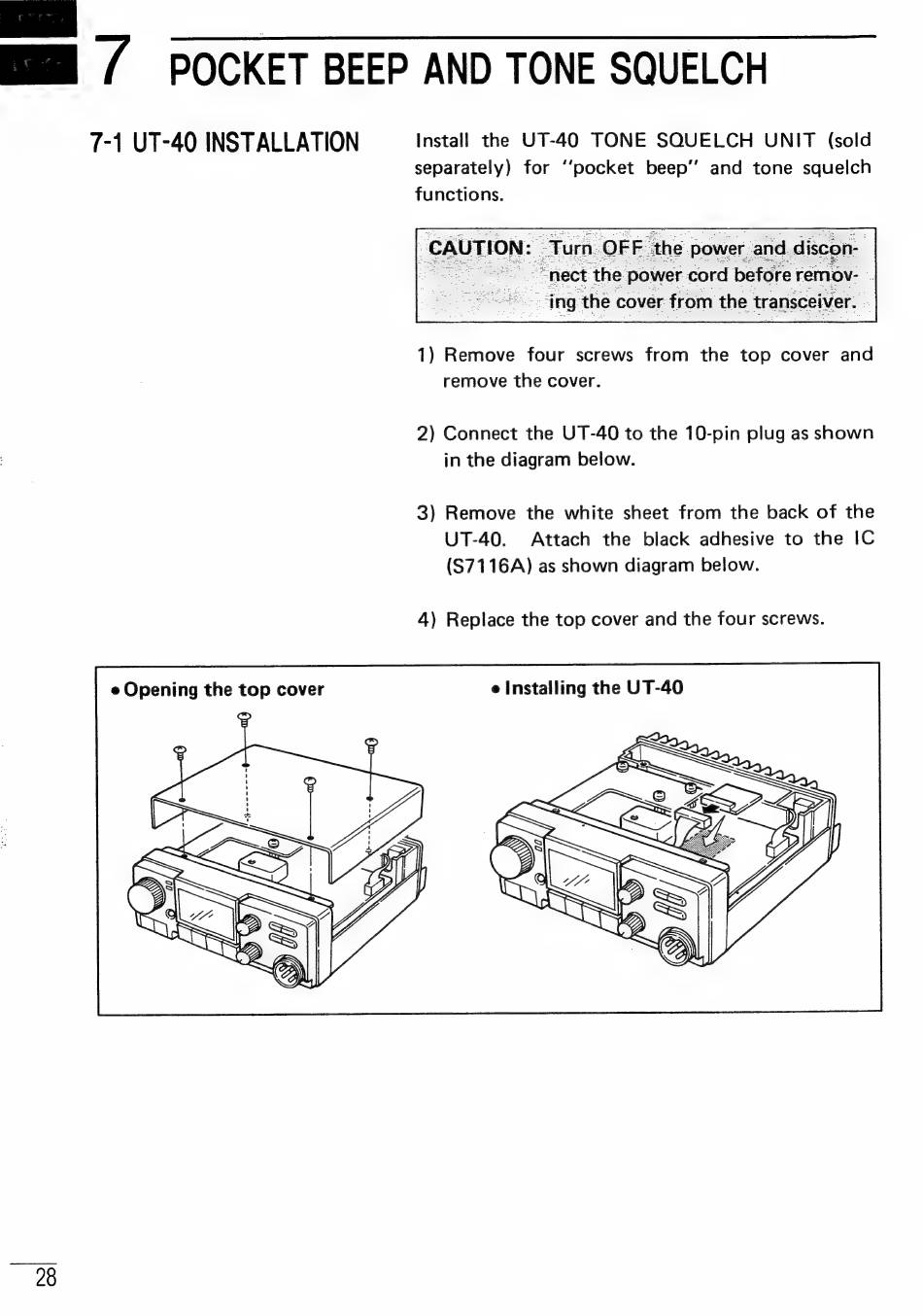

POCKET BEEP AND TONE SQUELCH
7-1 UT-40 INSTALLATION
e Opening the top cover
Install the UT-40
TONE
SQUELCH
UNIT
(sold
separately)
for "pocket
beep"
and tone squelch
functions.
1) Remove
four screws
from
the top cover
and
remove the cover.
2) Connect the UT-40 to the 10-pin plug as shown
in the diagram below.
3) Remove
the white sheet from the back of the
UT-40.
Attach
the
black adhesive
to the IC
(S7116A) as shown diagram below.
4) Replace the top cover and the four screws.
