SmartHandle AX Advanced Metal frame
Area
S
S
S
S
S
S
S
S
M
M
M
M
M
M
M
M
L
L
L
L
L
L
L
L
XL
37
Abbildungen/Images
Door thickness (mm)
38 – <42
38 – <42
42 – <47
42 – <47
47 – <52
47 – <52
52 – <57
57 – 60
58 – <62
58 – <62
62 – <67
62 – <67
67 – <72
67 – <72
72 – <77
77 – 80
78 – <82
78 – <82
82 – <87
82 – <87
87 – <92
87 – <92
92 – <97
97 – 100
98 – 184
Spindle length (mm)
94
104
94
104
94
104
104
104
114
124
114
124
114
124
124
124
134
144
134
144
134
144
144
144

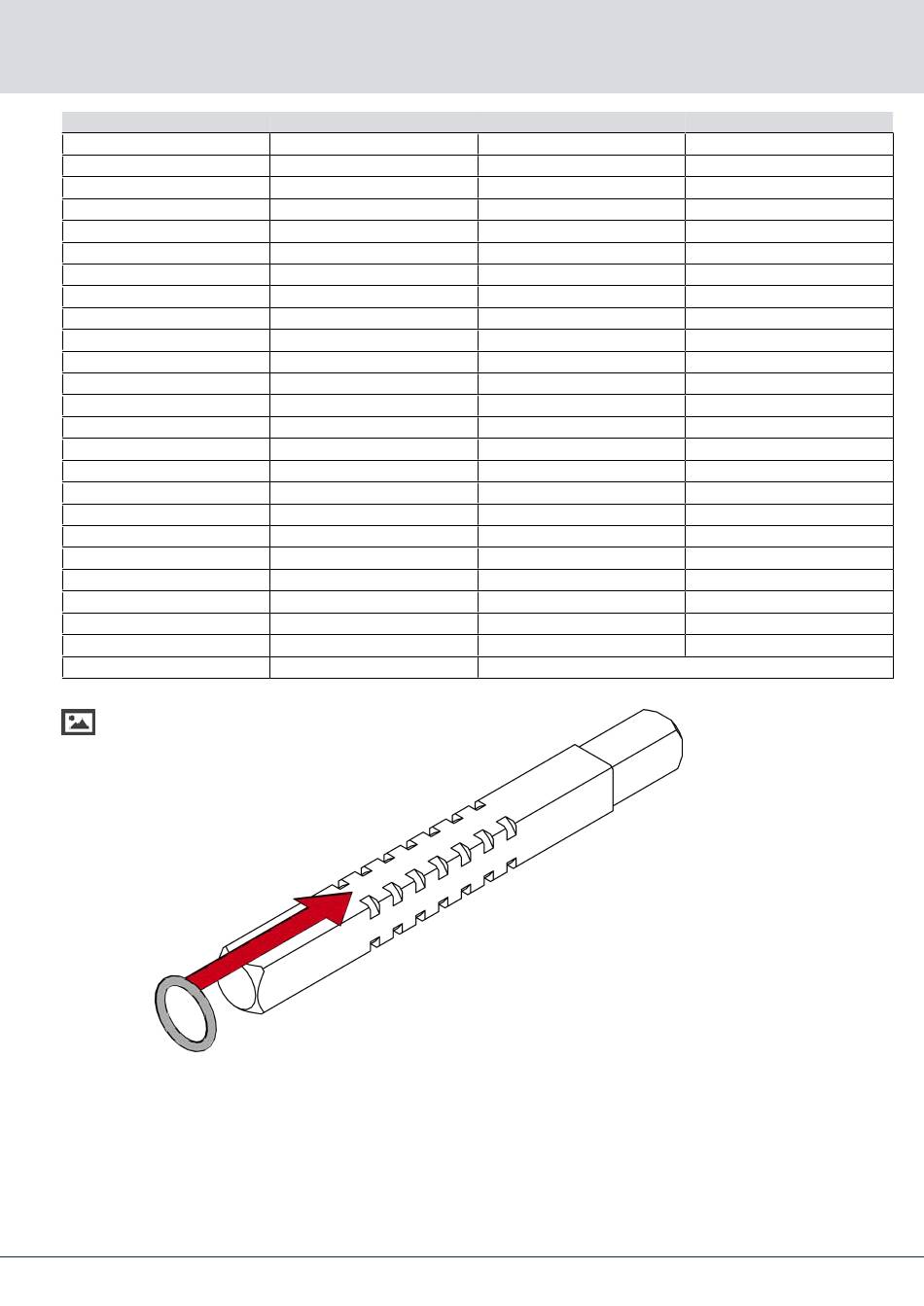

O-ring is 30–35 mm from the cut end of the spindle.
6. Installing the fitting
Ring position
3
5
2
4
1
3
2
1
3
5
2
4
1
3
2
1
3
5
2
4
1
3
2
1
15 / 56
