Configure the Lightweight Collector
IN THIS SECTION
Internal and External Network Requirements | 6
Configure the LWC Manually | 7
The LWC is preconfigured to support IPv4 and Dynamic Host Configuration Protocol (DHCP) on both the internal and
external network ports. When you power on the LWC after completing the required cabling, a zero touch experience
(ZTE) process to provision the device is initiated. Successful completion of the ZTE results in the device establishing IP
connectivity on both the ports. It also results in the external port on the device establishing connectivity to Juniper
Cloud via. discoverable reachability to the Internet. If the device fails to automatically establish IP connectivity and
reachability to the Internet, you must configure the LWC device manually, by using the LWC captive portal.
NOTE: You must connect to the captive portal from a local IP address. Connection to the captive portal from the
browser will fail if the connection request originates from a non-local network.
Before you configure the Lightweight Collector (LWC), refer to the
page 6.

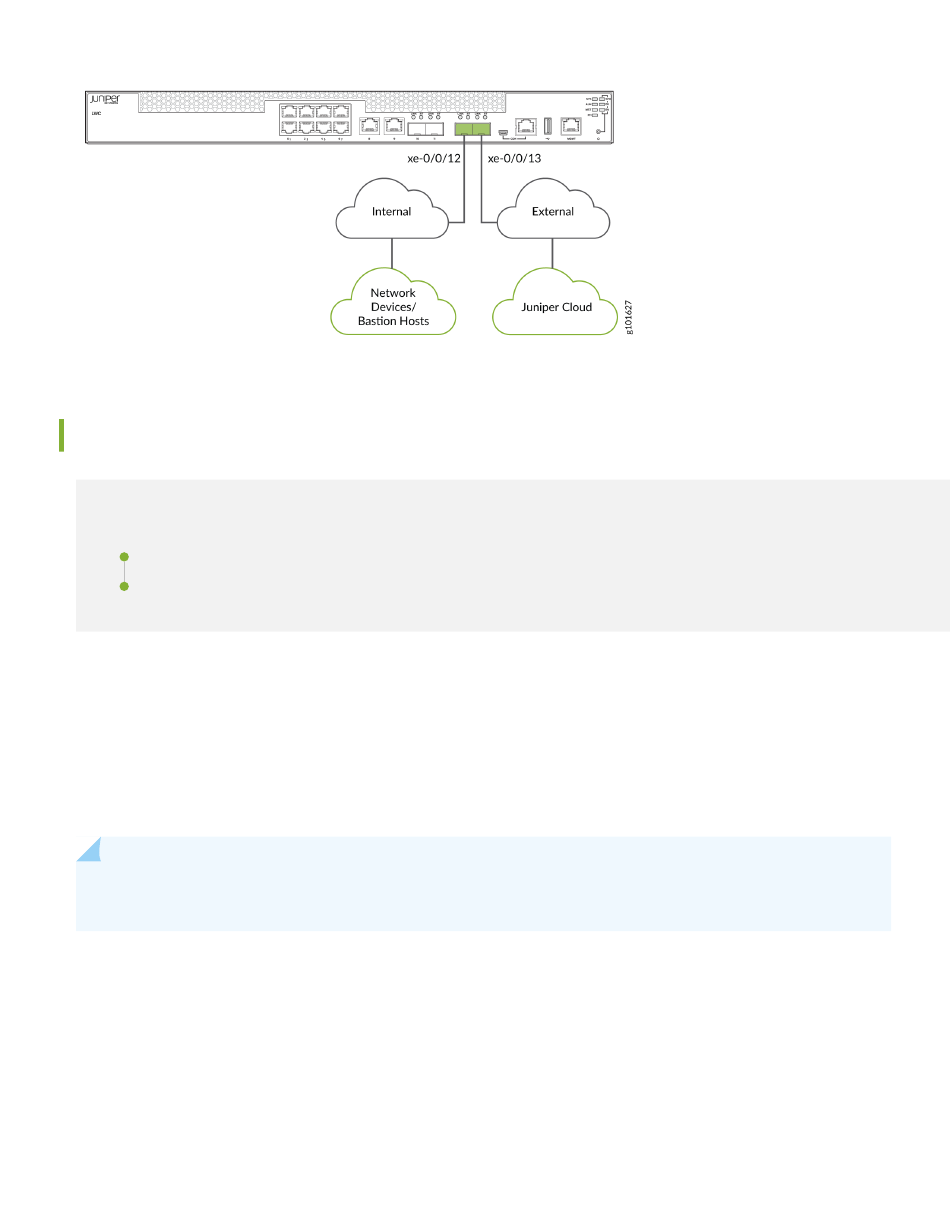

Internal and External Network Requirements
The LWC device requires:
• An internal network port (interface xe-0/0/12) that connects the LWC to the Juniper devices on the network.
• An external network port (interface xe-0/0/13) that connects the LWC to the Juniper Virtual Private Cloud.
"Internal and External Network Requirements" on
6
