JRR200 Route Reflector Quick Start
JRR200 Route Reflector Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Register the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
JRR200 Route Reflector Chassis Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Mount the JRR200 Route Reflector on Four Posts of a Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connect the Grounding Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Power on the JRR200 Route Reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connect to the Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Initial Configuration Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Power Off the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Reset the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Safety Warnings Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
JRR200 Route Reflector Overview

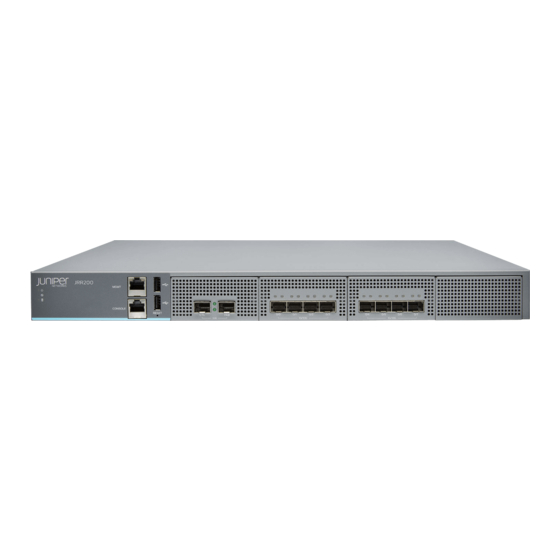

The Juniper Networks JRR200 Route Reflector is a 1U form factor appliance with a multicore x86 CPU and preinstalled vRR
software that can host one route-reflector instance. The JRR200 route reflector is suitable for large enterprises, data centers and
service providers for hosting vRR software to scale up to 30 million routing information base (RIB) entries.
The JRR200 route reflector comes with eight 1/10 Gigabit Ethernet SFP+ ports, 64 GB of DDR4 memory, and two 240-GB
solid-state drives (SSDs) in a RAID1 configuration. The JRR200 route reflector is available in both AC and DC models which
support Zero Touch Provisioning mode (ZTP) to ensure seamless insertion into the network and provide operational simplicity.
For more information about the JRR200 Route Reflector Hardware, see the JRR200 Route Reflector Hardware Guide available
at:
https://www.juniper.net/documentation/en_US/release-independent/junos/information-products/pathway-pages/jrr-series/jrr200/index.html
NOTE:
The JRR200 route reflector shipment package contains a packing list. Check the parts in the shipment against
the items on the packing list. If anything is missing or damaged, contact your Juniper Networks customer service
representative.
Package Contents
The JRR200 route reflector is shipped with the following parts:
Four-post rack-mounting kit
Fourteen flat-head screws to secure the mounting brackets to the chassis
Advertisement
Table of Contents
Related Manuals for Juniper JRR200
Summary of Contents for Juniper JRR200
-
Page 1: Table Of Contents
JRR200 Route Reflector Overview The Juniper Networks JRR200 Route Reflector is a 1U form factor appliance with a multicore x86 CPU and preinstalled vRR software that can host one route-reflector instance. The JRR200 route reflector is suitable for large enterprises, data centers and service providers for hosting vRR software to scale up to 30 million routing information base (RIB) entries. -
Page 2: Register The Product
Register product serial numbers on the Juniper Networks website and update the installation base data if there is any addition or change to the installation base or if the installation base is moved. Juniper Networks will not be held accountable for not meeting the hardware replacement service-level agreement for products that do not have registered serial numbers or accurate installation base data. -
Page 3: Mount The Jrr200 Route Reflector On Four Posts Of A Rack
Mount the JRR200 Route Reflector on Four Posts of a Rack You can mount a JRR200 route reflector in a 19-inch four-post rack configuration. An AC device weighs approximately 29 lb (13.16 kg) and a DC device weighs approximately 28.8 lb (13.06 kg). -
Page 4: Connect The Grounding Cable
JRR200 Route Reflector Quick Start Have one person grasp both sides of the JRR200 route reflector, lift it, and position it in the rack so that the front mounting bracket holes align with the threaded holes in the rack rail and the second person secure the front of the JRR200 route reflector to the rack by using rack-mounting screws (and cage nuts and washers if your rack requires them). -
Page 5: Power On The Jrr200 Route Reflector
Place the grounding cable lug over the grounding point on the rear of the chassis. NOTE: The JRR200 route reflector should be permanently connected to ground during normal operation. A licensed electrician must attach a cable lug to the grounding cable. A cable with an incorrectly attached lug can damage the JRR200 route reflector. - Page 6 AC power supply. If the AC power source outlet has a power switch, set it to on (|) position. Set the power switch on the JRR200 route reflector to the on (|) position and it will power on.
-
Page 7: Connect To The Console
JRR200 Route Reflector Quick Start NOTE: Wait until the Status LED on the front panel of the JRR200 route reflector is solid green before proceeding to the next step. Power Status Connect to the Console To configure the JRR200 route reflector, you must connect a management device to the... -
Page 8: Initial Configuration Using The Cli
( ) is configured with DHCP enabled. If there is a DHCP server on the management network, then the JRR200 management network interface is automatically assigned an IP address. If there is no DHCP server on the management network then you need to configure the management network interface IP address by performing the following steps: a. -
Page 9: Power Off The Device
The JRR200 route reflector weighs approximately 29 lb (13.16 kg). Manually installing the device in a rack requires two persons; one to lift the device and the second to install the mounting screws. To prevent injury while lifting, keep your back straight and lift with your legs, not your back. - Page 10 JRR200 Route Reflector Quick Start Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. and/or its affiliates in the United States and other countries. All other trademarks may be property of their respective owners. Juniper Networks assumes no responsibility for any inaccuracies in this document.
