INSTALLATION

CAUTION! – Connecting the device in the manner inconsistent with the manual can cause injury, death or material damage.
4.1 - Before installation
• Don't power on the device before assembling it fully in the protected environment.
• Check the operating/maintenance manual to make sure the connection is safe and allowed.
• Connect only as shown in Figure 1 below.
• Always use the same power source for L and IN terminals.
• Don't connect devices which aren't compliant with the specifications or relevant safety standards.
• Don't install the device in metal boxes or on metal surfaces for best radio performance.
4.2 - Electrical connection
1. Switch off the mains voltage – disable the fuse or the power supply.
2. Connect as shown in Figure 1 below.
3. Verify if the connection is correct.
4. Tighten the terminal screws using PH1 screwdriver.
5. If the device is fully assembled, switch on the mains voltage or enable the power supply.
6. If the LED indicator lights up, the device is powered.
7. Now add the device to the Z-Wave® network (see chapter 5).
2
100-240V AC
24-30V DC
S1 S2 L N
Q IN
B

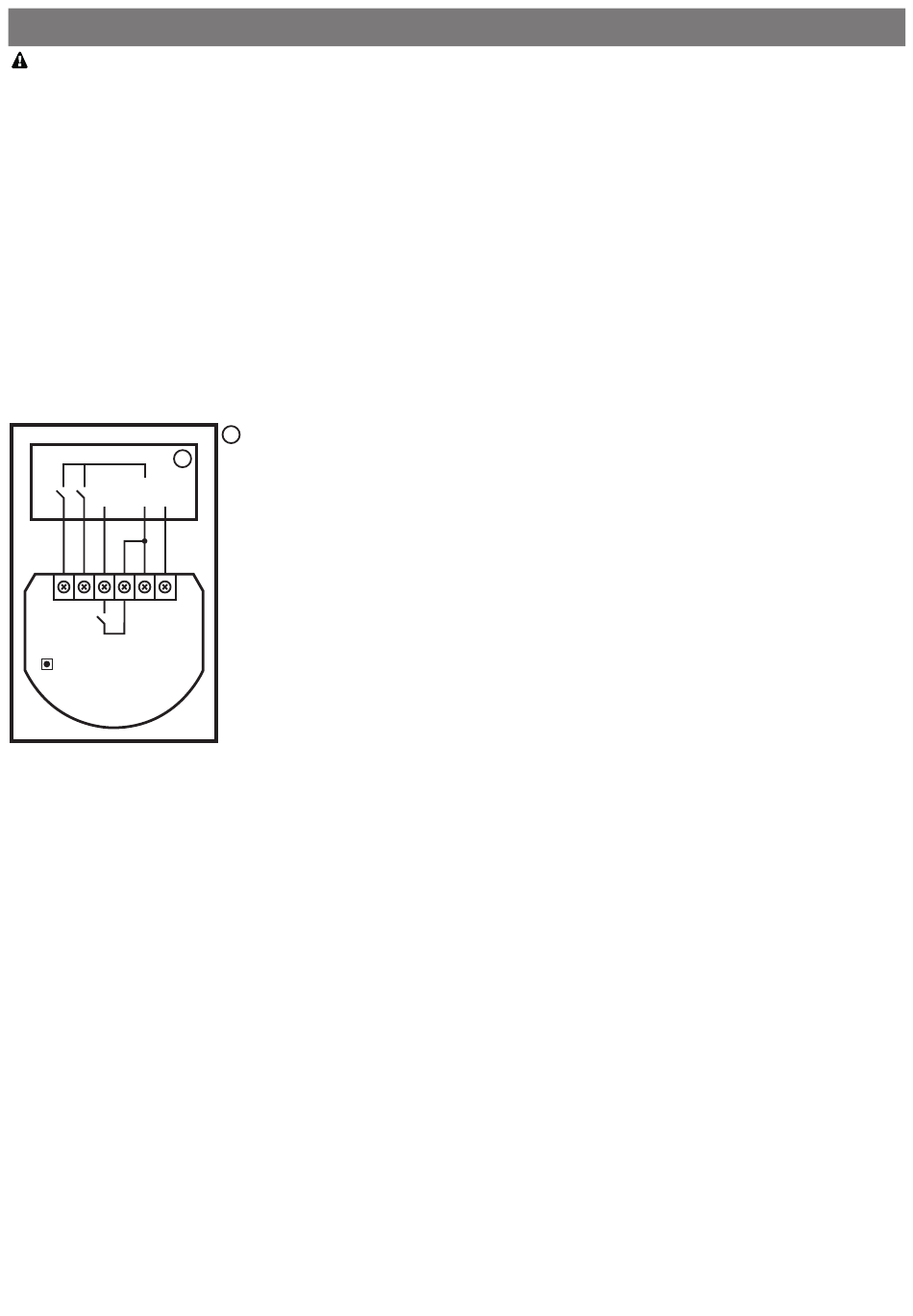

Figure 1: Example connection of SingleSmart-Control
• S1 - 1 button terminal
st
• S2 - 2 button terminal
nd
• L - live lead terminal
• Q - 1 channel output terminal
st
• N - neutral lead terminal
• B - service button (used to add/remove the device and navigate the menu)
• 1 - device/system housing
• 2 - electrical device
