iBoard
READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. REMOVE CONTENTS
FROM BOX AND VERIFY ALL PARTS ARE PRE-
SENT. ASSISTANCE IS RECOMMENDED.
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED

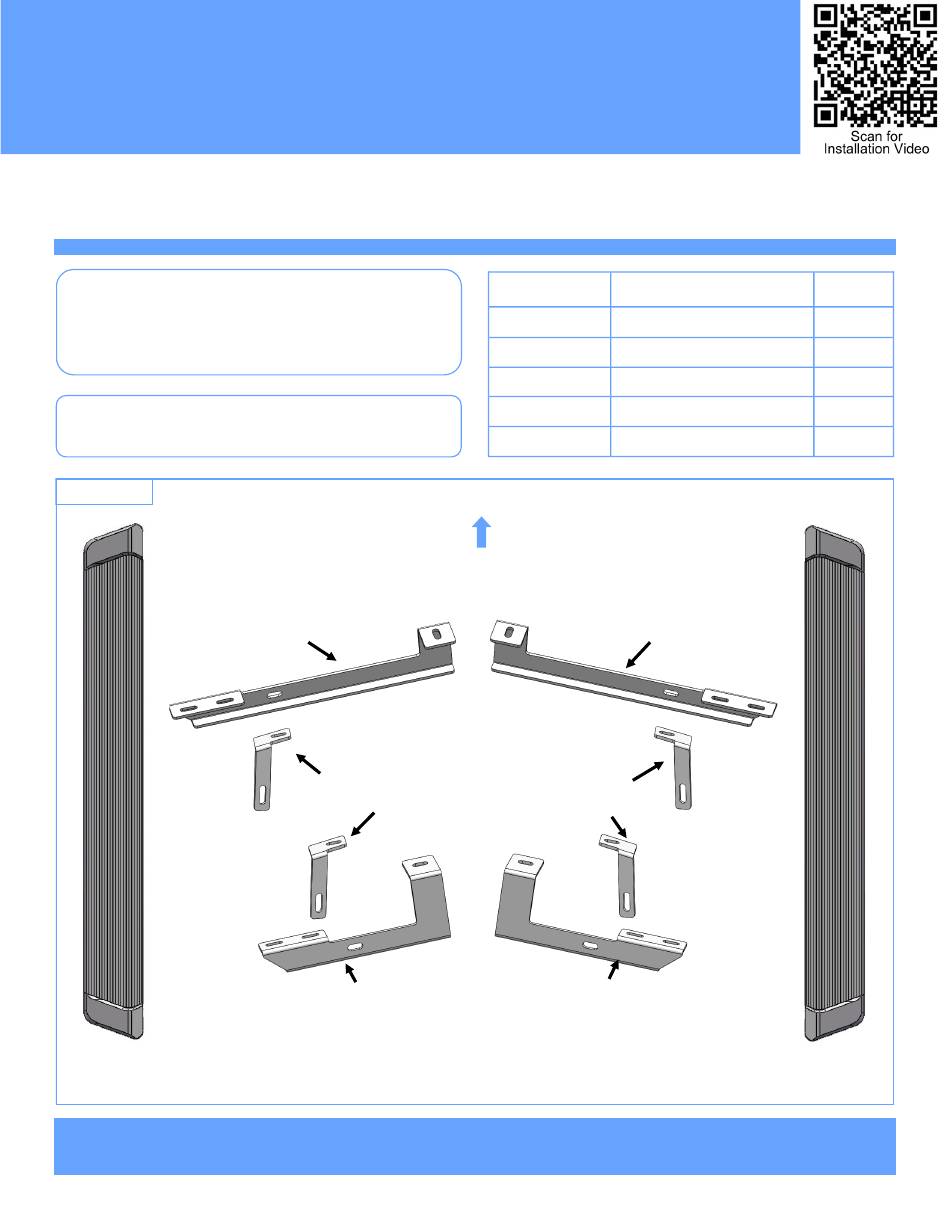

PART LIST
Driver Front Mounting
iBoard
by APS
Bracket (DFM)
Driver Front/Rear Support
Bracket (DFS/DRS)
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iboardauto.com
®
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front Mounting
Bracket (PFM)
Passenger Front/Rear Support
Bracket (PFS/PRS)
Passenger Rear Mounting
Bracket (PRM)
1
PART#: IB-R935
Required
6-7
√
16-18
X
31-32
√
56-58
X
92-94
X
Rev. 20240401
Advertisement
Related Manuals for APS iBoard IB-R935
Summary of Contents for APS iBoard IB-R935
- Page 1 ® ® iBoard by APS PART#: IB-R935 Fastener Size Tightening Torque (ft-lbs) Required READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE CONTENTS √ FROM BOX AND VERIFY ALL PARTS ARE PRE- SENT. ASSISTANCE IS RECOMMENDED. 16-18 10mm 31-32 √ 12mm...
- Page 2 iBoard ® Hardware Package A (For Bracket Installation) Item Description Item Description M10 Large Flat Washers M10X45 Bolt Plates M10 Flat Washers M10X1.5 Nut Plates M10X1.5-30mm Hex Bolts M10 Lock Washers M10X1.5-20mm Hex Bolts M10 Hex Nuts Hardware Package B (For Step Bar Installation) Item Description Item...
- Page 3 iBoard ® STEP 2 STEP 1 Insert (1) M10X45 Bolt Plate into the larger oval hole as shown, (Fig 2). Install Driver Rear Mounting Bracket (DRM) to the vehi- Start installation from the driver side rear of the vehicle. Re- cle using (1) M10 Flat Washer, (1) M10 Lock Washer, (1) move rubber plugs if equipped, ( Fig 1).
- Page 4 iBoard ® Front (1) M10X1.5 Nut Plate (1) M10X1.5-30 Hex Bolt Remove rubber (1) M10X1.5-30 Hex Bolt (1) M10 Flat Washer plugs if equipped (2) M10 Flat Washers (1) M10 Lock Washer (1) M10 Lock Washer (1) M10X1.5 Hex Nut (1) M10X1.5 Hex Nut (Fig 4) Driver Front Mounting Location (Fig 6) Driver Side Front Mounting Brackets Installed...
- Page 5 iBoard ® STEP 6 M6X1-20mm Square Head Bolts Repeat Steps 1-5 for the other side Running Board installation. The installation is completed. Attention Do periodic inspections to the installation to make sure that all hardware is secure and tight. (Fig 7) Slip M6X1-20mm Square Head Bolts Into The Bottom Channels In order to protect your bars/boards, please use mild soap/non-abrasive products for cleaning only.
