READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
* DRILLING IS REQUIRED

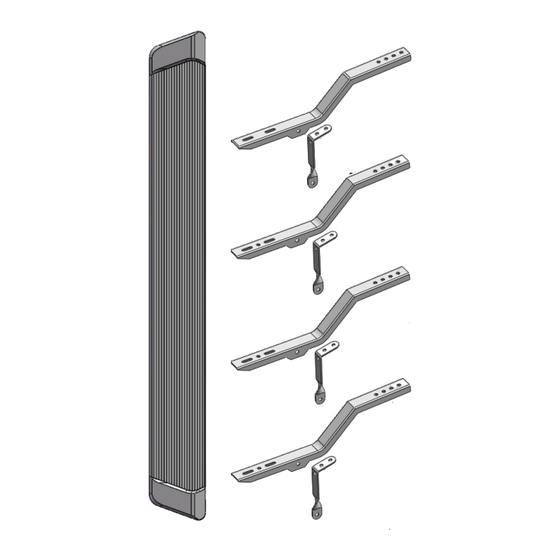

PART LIST
iBoard
by APS
1#
3#
2#
3#
2#
3#
2#
3#
Note: All (8) Support Brackets are Universal
Customer Support: info@iboardauto.com
®
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
1#
2#
2#
2#
1
PART#: IB-R961
Required
6-7
16-18
31-32
56-58
92-94
3#
3#
3#
3#
Rev. 20220901
√
√
