iBoard
by APS
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*DRILLING IS REQUIRED
Driver
1#
1#
1#
1#
iBoard
Front
2#
2#
2#
2#
Customer Support: info@iboardauto.com
1
®
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
2#
2#
2#
2#
PART#: IB-R911
Required
√
6-7
16-18
√
31-32
X
56-58
X
92-94
X
Passenger
1#
1#
1#
1#
Rev. 20220601
Advertisement
Related Manuals for APS iBoard IB-R911
Summary of Contents for APS iBoard IB-R911

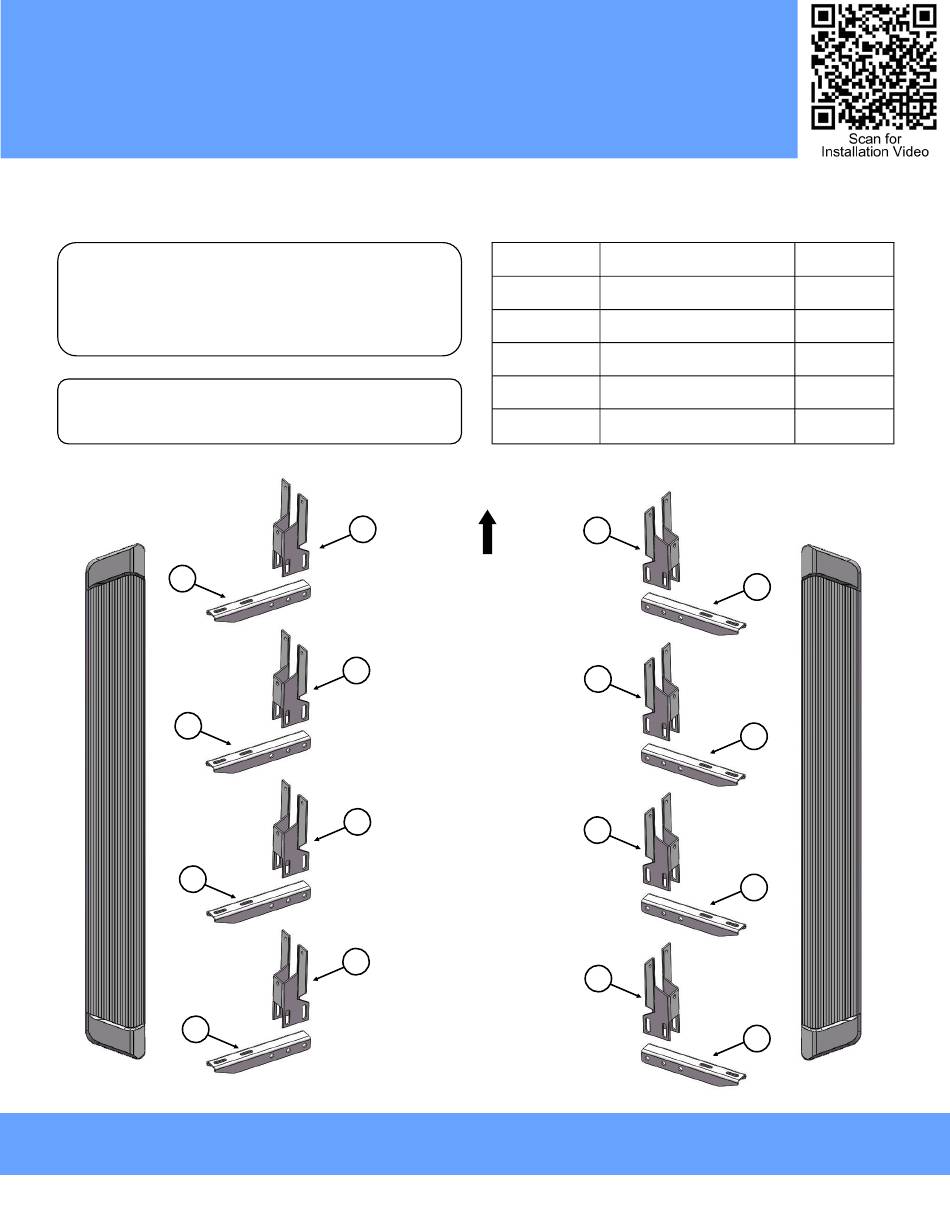

- Page 1 ® ® iBoard by APS PART#: IB-R911 Fastener Size Tightening Torque (ft-lbs) Required READ INSTRUCTIONS CAREFULLY BEFORE START ING INSTALLATION. REMOVE CONTENTS FROM BOX AND √ VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS 16-18 √ RECOMMENDED. 10mm 31-32 12mm...
- Page 2 iBoard ® Hardware Package A (For Bracket Installation) Item Description Item Description Mounting Brackets M8 Large Flat Washers Bar Brackets M8X1.25 Hex Flange Nuts M8X1.25-20mm Hex Bolts M8X1.25 Nylon Lock Nuts M8 Flat Washers ST6.3-22 Hex Self Tapping Screws Hardware Package B (For Step Bar Installation) Item Description Item...
- Page 3 iBoard ® STEP 1 STEP 3 Start the installation under the driver side of the vehicle. Drill (4) M8 holes in pinch weld as shown, (Fig 1). Attach the assembled Brackets to the 5/8” drilled holes on pinch with (1) M8X1.25-20mm Hex Bolt, (2) M8 Flat Washers and (1) M8X1.25 Nylon Lock Nut, (Figs 3 &...
- Page 4 iBoard ® STEP 5 STEP 4 Once all (4) mounting brackets are installed. Select a Running Level and adjust the Running Board and fully tighten all hard- Board. Slide (4) M6X1-20mm Square Head Bolts into each ware. bottom channel (Fig 5). Carefully position the Running Board onto the (4) Mounting Brackets.
