iArmor
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!

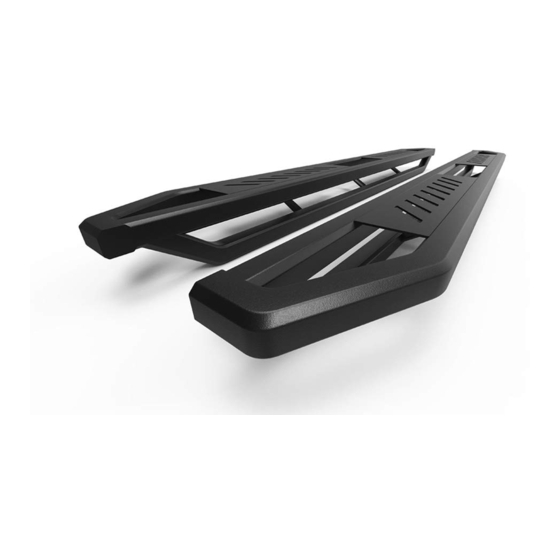

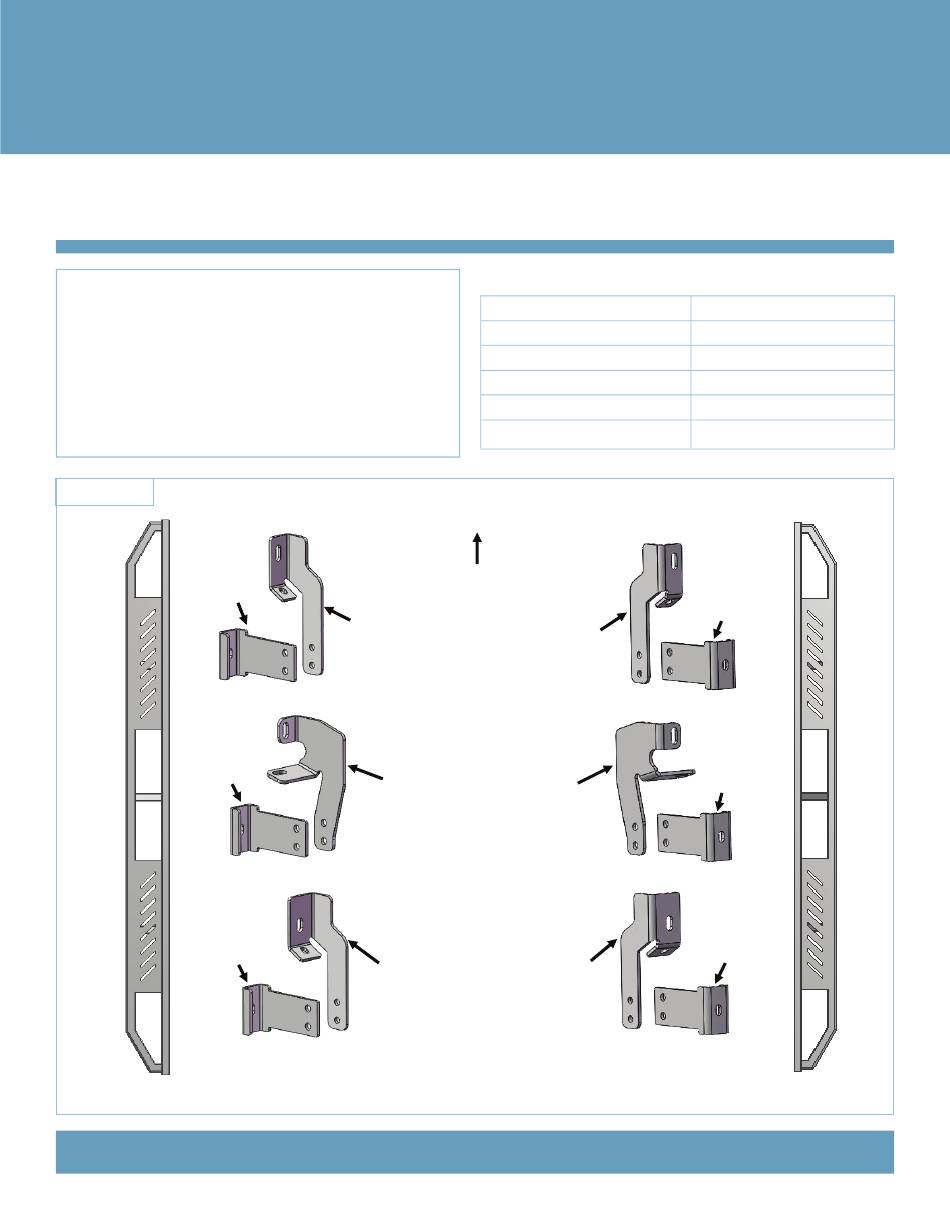

PART LIST
Bar Bracket
X1
Bar Bracket
X1
Bar Bracket
X1
Driver Side Step Bar
iArmor
by APS
X1
Driver Front
Mounting Bracket
(DFM/PFM)
X1
Driver Center
Mounting Bracket
(DCM/PCM)
X1
Driver Rear
Mounting Bracket
(DRM/PRM)
Customer Support: info@iarmorauto.com
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
X1
Passenger Front
Mounting Brack-
et (DFM/PFM)
X1
Passenger Center
Mounting Bracket
(DCM/PCM)
X1
Passenger Rear
Mounting Bracket
(DRM/PRM)
1
®
PART#: IA‐S177
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Bar Bracket
X1
Bar Bracket
X1
Bar Bracket
X1
Passenger Side Step Bar
Rev. 20201201
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for APS iArmor
Summary of Contents for APS iArmor
- Page 1 ® ® iArmor by APS PART#: IA‐S177 BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE 16-18 PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE 10mm 31-32 STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 12mm 56-58 ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® M10 X1.5 Hex M10X1.5-25mm M10 Large Flat M10 Flat Washer Flange Nut Hex Bolt Washer M10X45mm Bolt Plate M10 Lock Washers M8X1.25-25mm Hex Bolt M8 Large Flat Washer M10 X1.5 Hex Nuts Spacer U Bracket M8 Lock Washer M8 Clip Nut M8X1.25 Hex Nut...
- Page 3 ® STEP 3 (1) M8X1.25-25mm Hex Bolt (1) M8 Large Flat Washer (1) M8 Lock Washer Assemble Passenger Mounting Brackets & Bar Brackets with (2) M10X1.5-25mm Hex Bolts, (2) M10 Flat Washers and (2) M10 X1.5 Hex Nuts, as shown (Fig 4a, Fig 4b). Don’t fully tighten at this time.
- Page 4 ® STEP 5 STEP 7 Attach the Assembled Passenger Rear Mounting Bracket by Installation completed (Fig 8). locating the large circular hole in the rocker panel insert (1) M10X45mm Bolt Plate into the hole and attach the rear bracket using (1) M10 Large Flat Washer, (1) M10 Lock Washer, and (1) M10 X1.5 Hex Nut.
