iBoard
by APS
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*DRILLING MAY BE REQUIRED

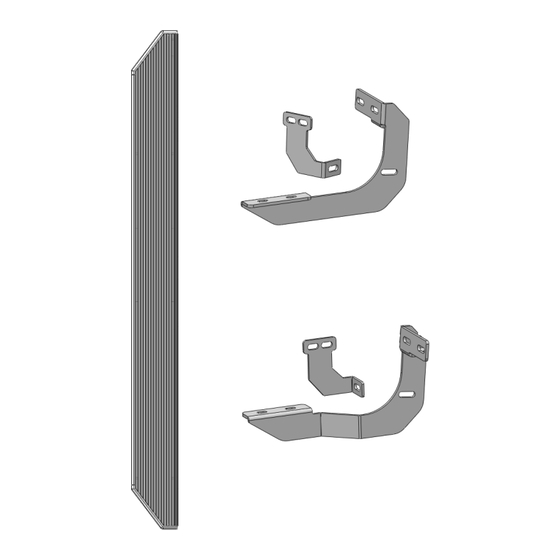

PART LIST
Driver Side Step Bar
Driver Front Support
Bracket (DFS/PRS)
Driver Front Mounting
Bracket (DFM)
Driver Rear Support
Bracket (PFS/DRS)
iBoard
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iboardauto.com
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
Passenger Front Mounting
Bracket (PFM)
Passenger Rear Mounting
Bracket (PRM)
1
®
PART#: IB-P178C&J
6-7
16-18
31-32
56-58
92-94
Passenger Side Step Bar
Passenger Front Support
Bracket (PFS/DRS)
Passenger Rear Support
Bracket (DFS/PRS)
Rev. 20230901
Required
√
√
X
X
X
Advertisement
Related Manuals for APS iBoard IB-P178C
Summary of Contents for APS iBoard IB-P178C
- Page 1 ® ® iBoard by APS PART#: IB-P178C&J Fastener Size Tightening Torque (ft-lbs) Required READ INSTRUCTIONS CAREFULLY BEFORE START ING INSTALLATION. REMOVE CONTENTS FROM BOX AND √ VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS 16-18 √ RECOMMENDED. 10mm 31-32 12mm...
- Page 2 iBoard ® Hardware Package A (For Bracket Installation) Item Description Item Description M8 Bolt/Nut Plates M8 Nylon Lock Nut M8 Plastic Washers M8 Hex Nut M8X1.25-30mm Hex Bolts M6X1-25mm Hex Bolts M8 Large Flat Washers M6 Large Flat Washers M8 Lock Washers M6 Nylon Lock Nuts 10 # Hardware Package B (For Stainless Steel Step Bar Installation)
- Page 3 iBoard ® STEP 1 Flush Start installation from the driver side front of the vehicle, re- move the sealing tapes covering the factory holes on the inner of the body panel, (Fig 1). (1) M8X1.25-30mm Hex Bolt (Fig 3) Thread (1) M8 Hex Bolt Into The Nut On The Plate. Stop When Bolt Reaches End Of Nut As Pictured Front (Fig 1) Driver Side Front Mounting Location...
- Page 4 iBoard ® Rotate M8 Bolt/Nut Plate To (1) M8 Large Flat Washer Line Up the Welded Nut (1) M8 Lock Washer With the Hex Hole on Body (1) M8X1.25 Hex Nut Panel (See Arrow) Front M8 Plastic Welded Bolt on M8 Bolt/Nut Plate (Fig 7) Driver Side Front Mounting Location (Mid 2015-On, An Example Of Models With Factory Threaded Inserts)
- Page 5 iBoard ® (1) M8X1.25-30mm Hex Bolt (2) M8 Large Flat Washers (1) M8X1.25 Nylon Lock Nut Rear (Fig 9) Attach Driver Front Support Bracket To Front Facing Side (Fig 11) Driver Side Rear Mounting Location Of the Driver Front Mounting Bracket (2) M6X1-25mm Hex Bolts (4) M6 Large Flat Washers (2) M6X1 Nylon Lock Nuts...
- Page 6 iBoard ® up the body panel away from the edge. Drill the holes toward the Note: The Sliders are packed with the Mounting Brackets. outside of the marked slots. Level and adjust the Step Bar and fully tighten all hardware. d.
