iBoard
by APS
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*DRILLING IS REQUIRED
Item
QTY
1#
2

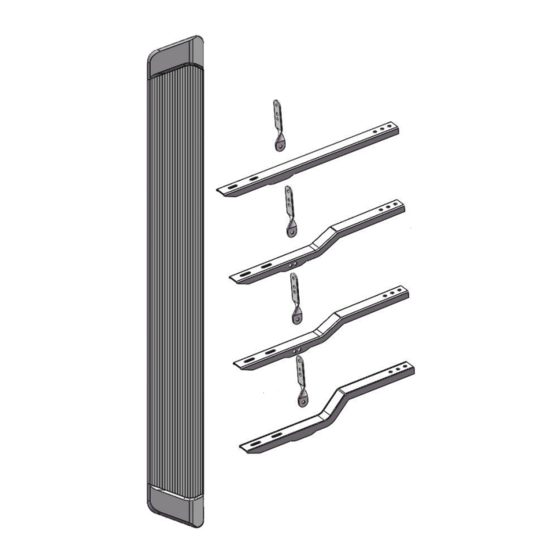

Driver / Passenger Front Mounting Brackets
2#
4
Driver / Passenger Center Mounting Brackets
3#
2
Driver / Passenger Rear Mounting Brackets
4#
8
Support Brackets
5#
16
M8X1.25-20mm Hex Bolts
6#
32
M8 Flat Washers
5 #
iBoard
Description
6 #
7 #
Customer Support: info@iboardauto.com
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Item
QTY
M8 Nylon Lock Nuts
7#
16
ST6.3x22mm Hex Self Tapping Screws
8#
16
M6X1-20mm Square Head Bolts
9#
16
10#
16
M6 Large Flat Washers
11#
16
M6 Nylon Lock Nuts
8 #
9 #
1
®
PART#: IB-R962
Required
6-7
16-18
31-32
56-58
92-94
Description
10 #
11 #
Rev. 20211001
√
√
X
X
X
