iBoard
by APS
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED
Item
QTY
1#
8
Mounting Brackets
2#
16
M8X1.25-20mm Hex Bolts
3#
24
M8 Flat Washers
4#
8
M8 Nylon Lock Nuts
2 #
iBoard
Description
3 #
4 #
Customer Support: info@iboardauto.com
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Item
QTY
5#
16
M6X1-20mm Square Head Bolts
6#
16
M6 Large Flat Washers
7#
16
M6 Nylon Lock Nuts
5 #
1
®
PART#: IB-R921
Required
6-7
16-18
31-32
56-58
92-94
Description
6 #
7 #
Rev. 20211001
√
√
X
X
X
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for APS iBoard IB-R921
Summary of Contents for APS iBoard IB-R921

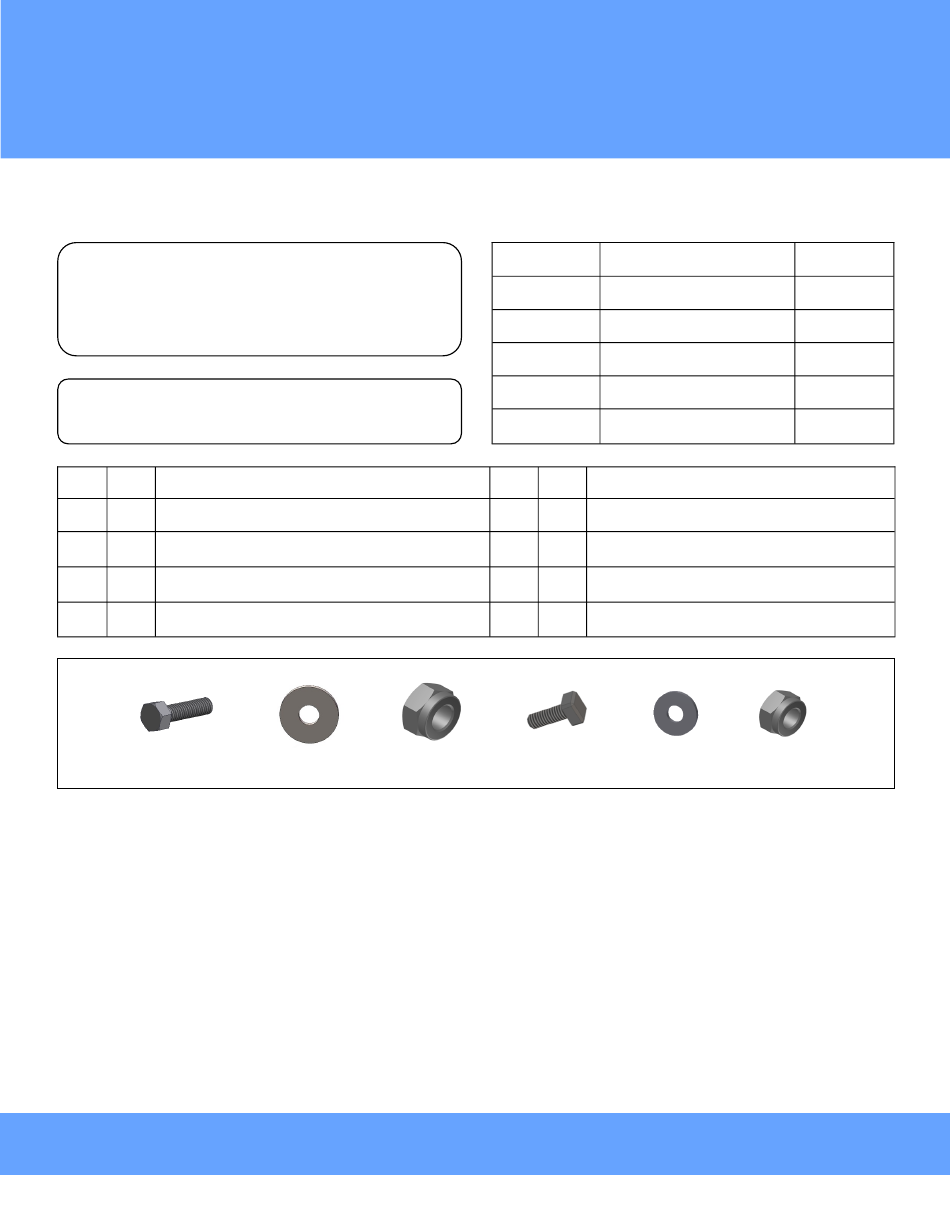

- Page 1 ® iBoard ® iBoard by APS PART#: IB-R921 Fastener Size Tightening Torque (ft-lbs) Required READ INSTRUCTIONS CAREFULLY BEFORE START ING INSTALLATION. REMOVE CONTENTS FROM BOX AND √ VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS 16-18 √ RECOMMENDED. 10mm 31-32 12mm...
