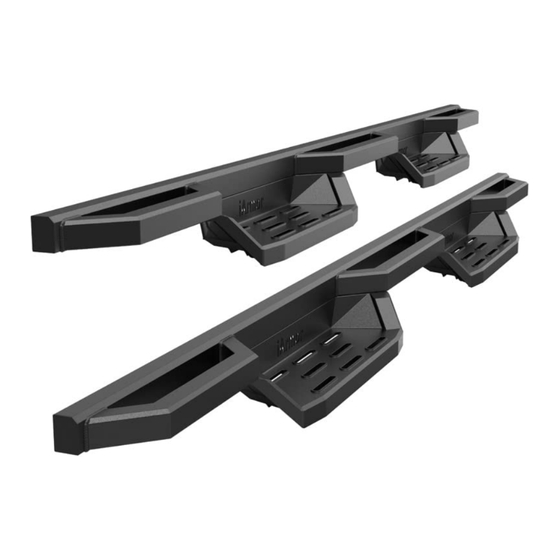

Stainless steel pocket steps running boards side bars compatible with chevy silverado gmc sierra 1500 2007-2018 crew cab & 2500 3500 hd 2019 crew cab

Advertisement

Quick Links

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*TRIMMING IS REQUIRED

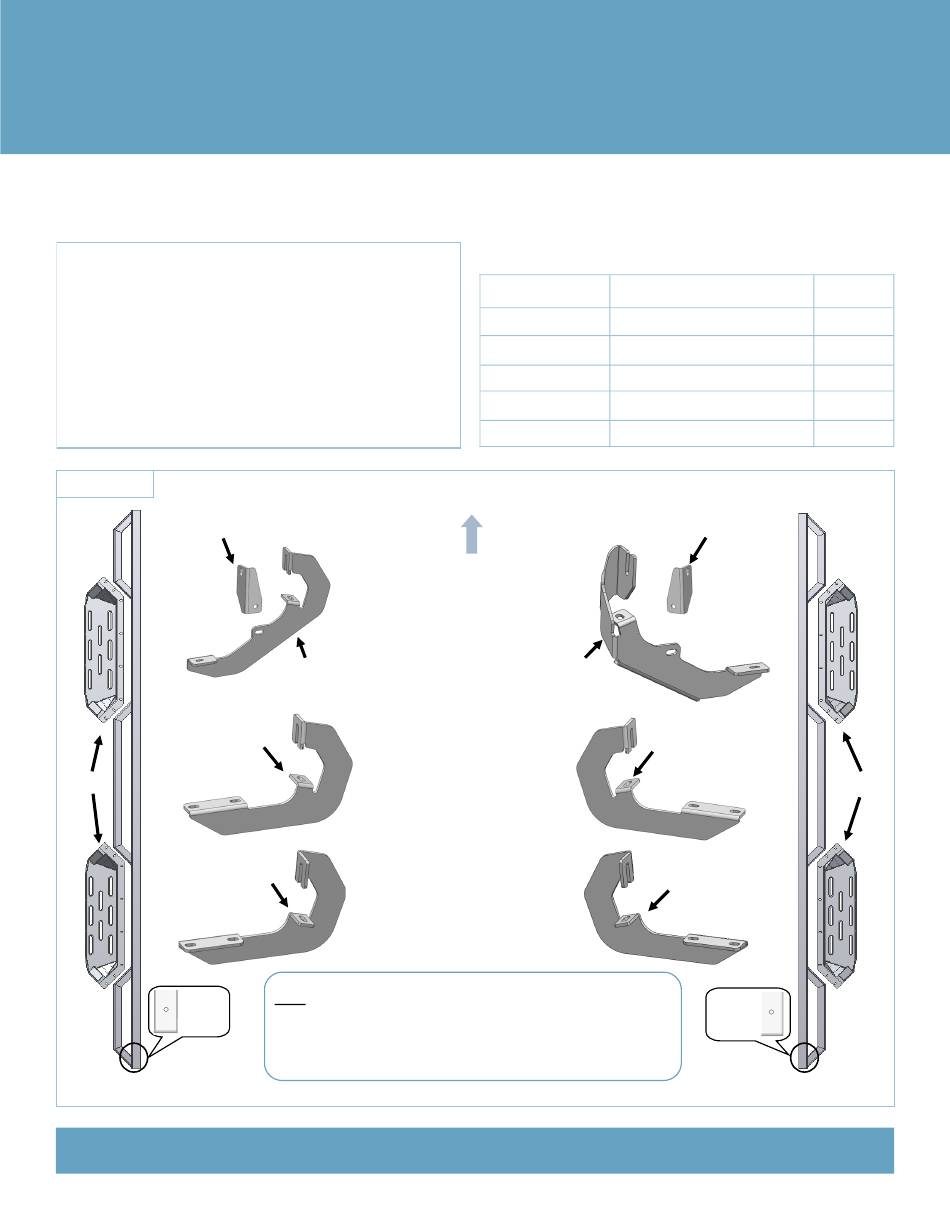

PART LIST
Driver Front Sup-
port Bracket (DFS)
Driver Center/
Passenger Rear
Mounting
Bracket (DCM/
PRM)
Pedal
(PCM/DRM)
Drain
Hole at
Bottom
Driver Side Step Bar
iArmor
Front
Driver Front
Mounting Bracket
(DFM)
Note: *
Driver Center & Rear Mounting Brackets are universal
*
Passenger Center & Rear Mounting Brackets are universal
*
Step bars are NOT interchangeable. Make sure drain holes at the
bottom will be located at the rear direction of the step bars.
Customer Support: info@iarmorauto.com
1
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front Sup-
port Bracket (PFS)
Passenger Front
Mounting Brack-
et (PFM)
Passenger Cen-
ter/ Driver Rear
Mounting Brack-
et (PCM/DRM)
(DCM/PRM)
PART#: IA-N071H
Required
6-7
16-18
31-32
X
56-58
X
92-94
X
Pedal
Drain
Hole at
Bottom
Passenger Side Step Bar
Rev. 20231101

Advertisement

loading
Need help?

Need help?

Do you have a question about the IARMOR EDGE IA-N071H and is the answer not in the manual?

Questions and answers

Summary of Contents for APS IARMOR EDGE IA-N071H

  • Page 1 iArmor ® IARMOR EDGE™ PART#: IA-N071H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE √ PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT! 10mm 31-32 *ROCKER PANEL MOUNT...
  • Page 2 iArmor ® Hardware Package A (For Brackets & Bars Installation) Item Description Item Description M8X1.25-25 Hex Bolts M6X1-20 Square Head Bolts M8 Large Flat Washers M6 Large Flat Washers M8 Lock Washers M6X1 Nylon Lock Nuts M8X1.25 Nylon Lock Nuts M8X1.25-20 T Bolts M8 Clip Nuts M8 Plastic Washers...
  • Page 3 iArmor ® The instruction here is for your reference only. We strongly Fig 1 Fig 2 recommend the professional installer for best result. We are not responsible for any damage caused by the installation. STEP 1 Install (4) Pedals onto the step bars with (24) M8X1.25-25mm Hex Bolts, (24) M8 Large Flat Washers and (24) M8 Lock Washers.
  • Page 4 iArmor ® tab with the nut facing up behind the tab, (Figs 5-7). Line up threaded nut with hole in the tab. Repeat for Remove plug if equipped each mounting location. (2) Locate top mounting location on the back side of the body panel.
  • Page 5 iArmor ® STEP 7 (2) M8X1.25-25mm Hex Bolts (2) M8 Lock Washers (2) M8 Large Flat Washers Once (3) brackets have been installed, select (5) M8X1.25- 20mm T-Bolts, thread (1) M8 Plastic Washer on each T-Bolt, (Fig 10). Install the (5) M8X1.25-20mm T-Bolts with plastic washers in the slots on the assembled Driver side step bar.
  • Page 6 iArmor ® STEP 8 Attach the Assembled Driver Side Step Bar onto the Mounting Brackets with (5) M8 Plastic Washers, (5) M8X1.25-20mm T-Bolts, (5) M8 Large Flat Washers, (5) M8 Nylon Lock Nuts, (Fig 12). Do not fully tighten hardware at this time. NOTE: the Driver Front Mounting Bracket is located under the front pedal.
  • Page 7 iArmor ® STEP 9 Move to the passenger side of the vehicle. On the passenger side, determine if the vehicle is equipped with a plastic diesel exhaust fluid (DEF) tank, (Figs 14 & 16). (1) Models without DEF tank skip to Step 10. Remove (3) hex bolts to (2) Models with DEF tank: remove cover...
  • Page 8 iArmor ® STEP 10 Front Locate the first tab on the edge of the pinch weld, (Figs 4-7). Select the Assembled Passenger Front Mounting Bracket. Bolt the assembled Mounting Bracket to the Clip Nuts and/or the factory threaded holes with (2) M8X1.25-25mm Hex Bolts, (2) M8 Lock Washers and (2) M8 Large Flat Washers, (Fig 18).
