iBoard
by APS
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED
Item
QTY
1#
2

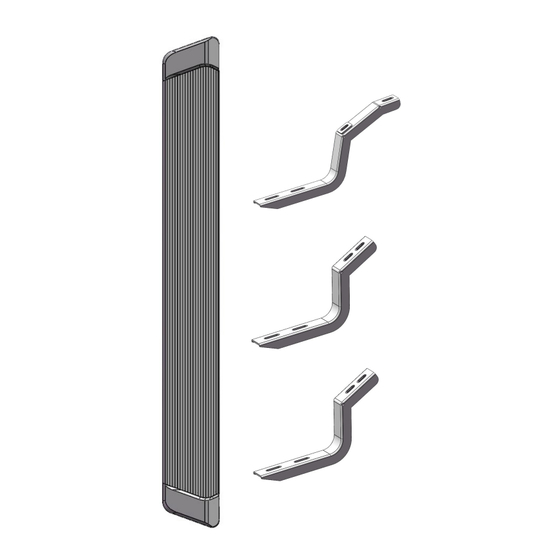

Driver/Passenger Front Mounting Brackets
2#
4
Mounting Brackets
3#
12
M8X1.25-20mm Hex Bolts
iBoard
Description
4 #
3 #
Customer Support: info@iboardauto.com
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Item
QTY
M6X1-20mm Square Head Bolts
4#
12
5#
12
M6 Large Flat Washers
M6 Nylon Lock Nuts
6#
12
5 #
6 #
1
®
PART#: IB-R934
Required
6-7
16-18
31-32
56-58
92-94
Description
Rev. 20211001
√
√
X
X
X
