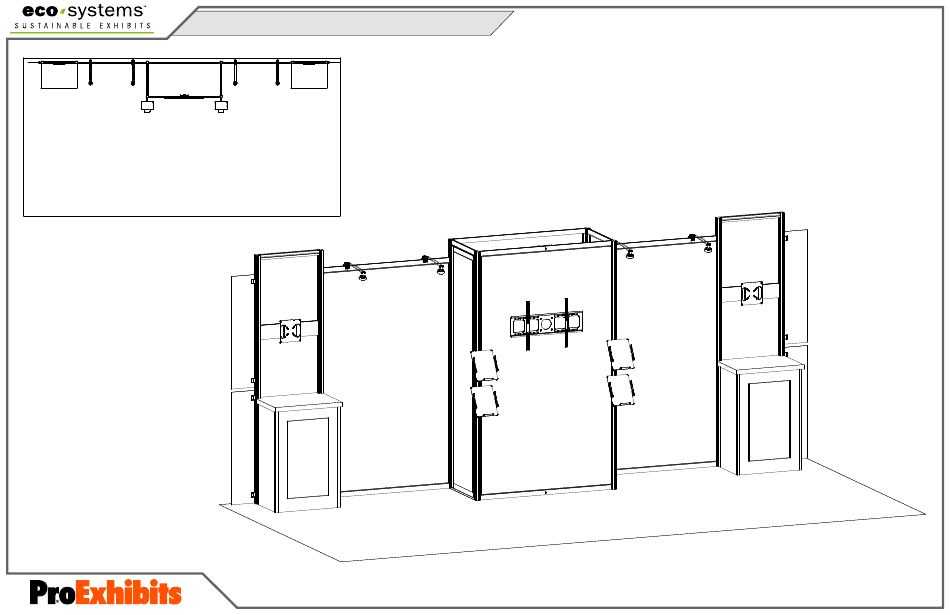

- Page 1 © 2023 Order #59692 ECO-2097 - 10’ x 20’ Display 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Grid View
© 2023 Order #59692 Grid View = 1 sq foot... -
Page 3: General Setup Instructions
© 2023 Order #59692 General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2023 Order #59692 ECO Panel Assembly ECO Panel Install Place ECO panel together with a vertical offset, slide down to lock connector in place. Panel Corner Connectors are installed just like ECO panels. Remove by off-setting top lock clips horizontally followed by separating vertically.
- Page 5 © 2023 Order #59692 SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 6 © 2023 Retain all packing materials. Order #59692 Crate Packing - Unit 1 DO NOT DISCARD. 14,14A 19,19A 10/1 15/8 11/7 16/14 3,5,10,12 Lights 4,11 Setup Hardware 9,13 5,5A 8,8A 1/4/7A/Door Counter Top Counter Top Literature Trays Setup Hardware 17,17A Shelf Supports Monitor Mounts Shelf...
- Page 7 © 2023 Retain all packing materials. Order #59692 Crate Packing - Unit 2 DO NOT DISCARD. 5,5A 14,14A 8,8A 19,19A 10/1 15/8 11/7 16/14 3,5,10,12 Shelf (Qty. 2) 9,13 Lights Setup Hardware Wings Shelf Supports 4,11 13,18 1/4/7A/Door Counter Top Counter Top Literature Trays Setup Hardware...
-
Page 8: Front View
© 2023 Order #59692 Closet Assembly Item Qty. Description Steps: 96”h S44 Vertical Extrusion w/ Door Hinge, PR37 & TSP3 1) Assemble lower horizontals [5,6,8} & Door Threshold between 96”h S44 Vertical Extrusion w/ PR37 & TSP3 verticals [1,2,3,4]. See Door Threshold Attachment detail. - Page 9 © 2023 Order #59692 Left Backwall Assembly Item Qty. Description Steps: 96”h S44 Vertical Extrusion w/ LT Connector & Velcro 1) Assemble horizontals [12,12A] & [13] between verticals [10,11]. 96”h S44 Vertical Extrusion w/ LT Connector, TSP3 & Velcro 2) Connect horizontals [14,14A] between vertical [11] & closet vertical [1]. 12,12A 24”w S44 Horizontal Extrusion w/ Velcro 24”w Z140 Horizontal Extrusion...
- Page 10 © 2023 Order #59692 Right Backwall Assembly Item Qty. Description Steps: 96”h S44 Vertical Extrusion w/ LT Connector & Velcro 1) Assemble horizontals [17,17A] & [18] between verticals [15,16]. 96”h S44 Vertical Extrusion w/ LT Connector, TSP3 & Velcro 2) Connect horizontals [19,19A] between vertical [15] & 17,17A 24”w S44 Horizontal Extrusion w/ Velcro closet vertical [2].
- Page 11 © 2023 Order #59692 Backwall Counter Assembly Item Qty. Description Steps: 40”h Square Cap Connector (attached to S44) 1) Assemble Eco Panels & connectors [1] through [7] & [8] through [14] 16”w x 40”h ECO Panel together in numerical order as shown. Connectors [1,7], [8,14] stay 40”h 90°...
- Page 12 © 2023 Order #59692 Backwall Graphics & Monitor Mounts Steps: 1) Apply SEG graphics to Backwall & Closet front, side & door as shown. Small Monitor Mount Attachment Refer to the SEG Installation general information page. A ttach Monitor Mount 2) Connect Small Monitor Mounts to horizontals [13] &...
- Page 13 © 2023 Order #59692 Backwall Attachments Steps: 1) Attach Lights to top horizontals [14A] & [19A]. Light Attachment detail. 2) Connect Wings to verticals [10] & [16]. Wing Attachment detail. Light Attachment 3) Attach Literature Trays to closet verticals [3] & [4]. Literature Tray Attachment detail.
