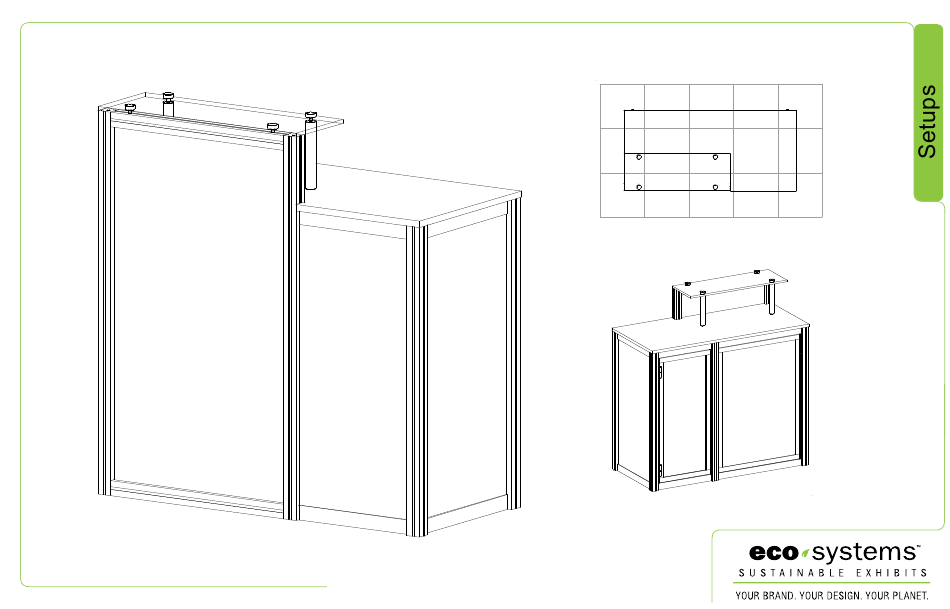

- Page 1 Order #XXXXX - ECO-35C Sustainable Counter / Podium Plan View 866.463.2611 • www.ecosystemsdisplays.com...
- Page 2 General Setup Instructions •The setup instructions are created specifically for your configuration. •Setup instructions are laid out sequentially in levels, including exploded views and a logical series of steps for assembly. We encourage you to study the instructions before attempting to assemble your exhibit. Cleaning and Packing •Use non-abrasive cleaners when cleaning extrusions or ECO Glass inserts.
- Page 3 Item Qty. Description Steps: Steps Cont’d: 38”h S44 Vertical Extrusion 1) Connect horiozntals [6] between vertcals [1 & 2], [3 & 4], & [4A & 5]. 10) Insert Shelves and rest on pin on interior of kiosk. 38”h S44 Vertical Extrusion 2) Attach horizontals [7] between assemblies [1/2/6] &...
- Page 4 Item Qty. Description Counter Top 8.25”h Stand-Off Barrel Steps: 1) Attach Counter Top to assembled base. See Counter Top Attachment detail. 2) Attach stand-off barrels to threaded holes in the counter top. 3) Connect Plex Counter to stand-offs and [10A] using screw caps. Upper Shelf to Counter Attachment detail.
