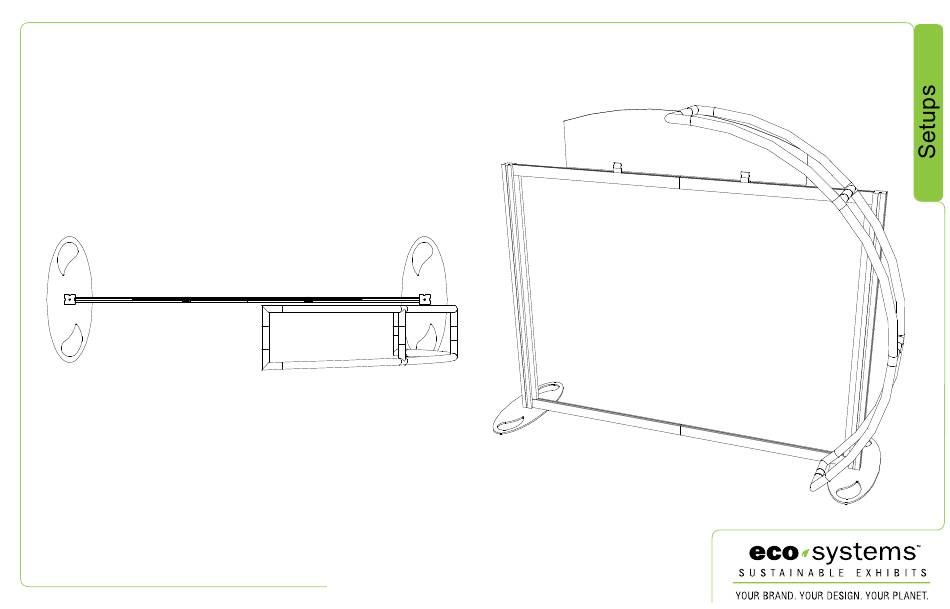

- Page 1 Order #45374 - Eco-104T Table Top 866.463.2611 • www.ecosystemsdisplays.com...
- Page 2 General Setup Instructions •The setup instructions are created specifically for your configuration. •Setup instructions are laid out sequentially in levels, including exploded views and a logical series of steps for assembly. We encourage you to study the instructions before attempting to assemble your exhibit. Cleaning and Packing •Use non-abrasive cleaners when cleaning extrusions or ECO Glass inserts.
- Page 3 ECO Panel Install Place ECO panel together with a vertical offset, slide down to lock connector in place. Panel Corner Connectors are installed just like ECO panels. Remove by off-setting top lock clips horizontally followed by separating vertically. SEG Graphic Install Graphic is installed corners first.
- Page 4 Item Qty. Description Steps: Base Plate 1) Attach base plates to verticals. Vertical Extrusion 2) Connect horizontals together as shown. Vertical Extrusion 3) Connect lower horizontals between verticals. 4/4A Horizontal Extrusion 4) Connect upper horizontals between verticals. 5/5A Horizontal Extrusion 5) Attach graphics to velcro where indicated.
- Page 5 Using Your Setup Instructions The Aero Overhead Sign Setup Instructions are created specifically for your configuration. They include an exploded view of the frame which is sequentially numbered. We encourage you to study the instructions before attempting to assemble your exhibit. When assembled Connections are kept very simple: no tools.
- Page 6 Steps: Aero Assembly 1) Attach header to A10 clamps as shown in detail. 2) Slide aero frame into grove of vertical. Header Example of A10 Clamp Attachment When desired location is found, tighten set screw to secure. Slide connector on back Tighten knob to secure of A10 clamp into groove shelf/wing in place.
- Page 7 Order #45374 - Setup file can be found online at www.ecosystemdisplays.com 866.463.2611 • www.ecosystemsdisplays.com...
