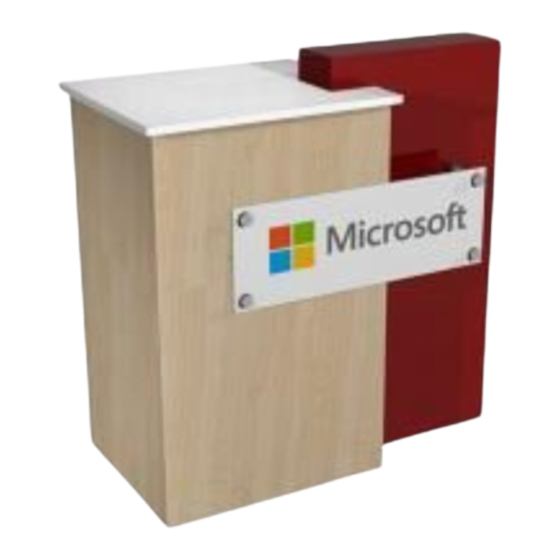

Order #XXXXX - ECO-8C Sustainable Podium
Panel
Description
1
42" 90° Connector
2
6" x 42" Panel
3
42" 90° Connector
4
18" x 42" Panel w/ 38" Connector
5
42" 90° Connector
6
6" x 42" Panel
7
42" 90° Connector
8
18" x 42" Panel w/ 38" Connector
9
6.248" x 38" Panel
10
38" 90° Connector
11
22" x 38" Panel w/Door
12
38" 90° Connector
13
18" x 38" Panel
14
38" 90° Connector
15
22" x 38" Panel
16
38" 90° Connector
17
38" 180° Connector
11
12
Door
13
14
15
866.463.2611 • www.ecosystemsdisplays.com
Steps:
1) Assemble the panels in numerical order as shown below.
2) Attach the EcoGlass sign with stand-off barrels and screw caps.
3) Affix Shelf Supports inside pedestal assembly; place Shelf onto supports.
4) Place counter tops on assembled pedestals.
See General Setup Instructions for Panel Systems
on General Instructions page.
10
9
8
7
1
2
6
3
4
5
17
16
Counter Tops
Stand-Off Barrel
Shelf
Screw Cap
When assembled
