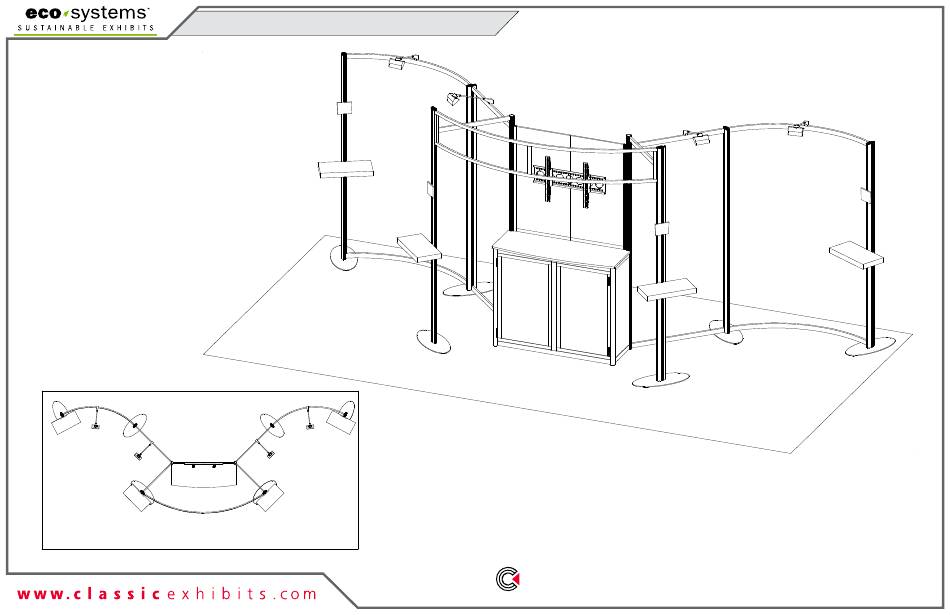

- Page 1 © 2020 Order #XXXXX ECO-2003 - 10’ x 20’ Display 10’ Plan View 20’ SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2020 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 3 © 2020 Order #XXXXX Backwall Assembly Item Description Steps: Base Plate 1) Attach base plates to bottom of verticals [2 & 3] as shown, see Detail D on General Instruction page. 2/2a 42” OP91 Vertical Extrusion 2) Connect upper verticals [2a to 2], [3a to 3], [4a to 4] and [5a to 5] as shown. 3/3a 42”...
- Page 4 © 2020 Order #XXXXX Header Assembly Steps: Item Description 1) Attach base plates to bottom of verticals [11,11a] see Detail D on General Instruction page. Base Plate 2) Connect verticals [11,11a] to backwall structure using horizontal extrusions [12]. 11/11a 96” OP91 Vertical Extrusion 3) Connect header pieces [13a/13b, 14a/14b, 15, 16 and 17] together as shown.
- Page 5 © 2020 Order #XXXXX Attachments Steps: 1) Attach lights to top of backwall as shown. 2) Attach large monitor mount to horizontal [10] as shown in detail. 3) Attach small monitor mounts to verticals as shown in detail. 4) Attach shelves to verticals as shown in detail. Monitor Mount Attachment Attach wall plate to panels using...
