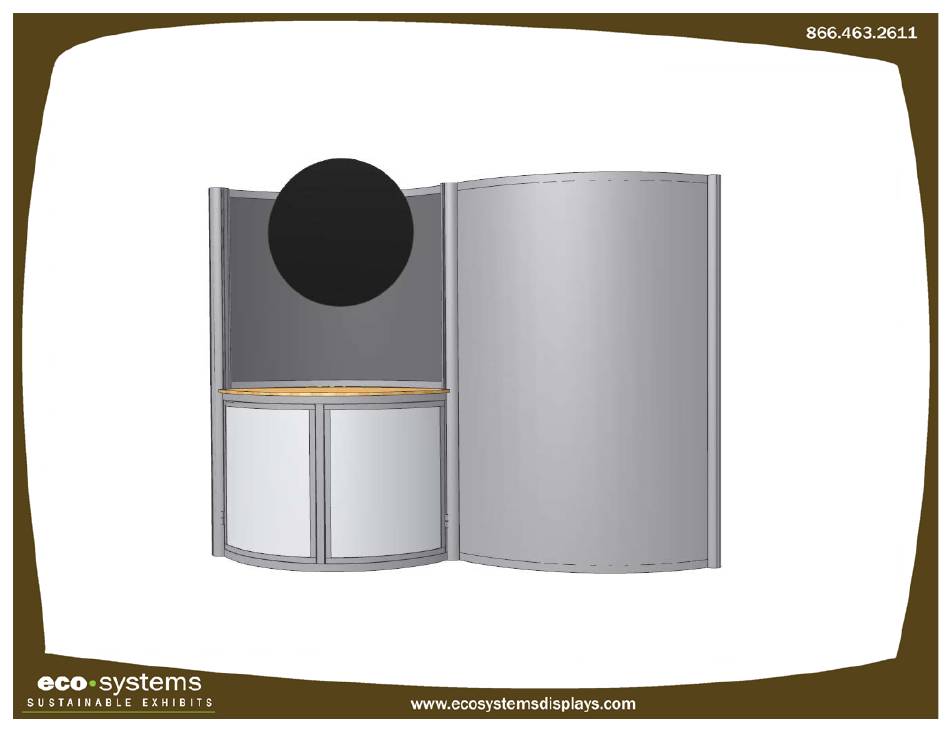

- Page 1 SETUPS RIO 10X10...
- Page 2 GENERAL...
- Page 3 PART: QTY: DESCRIPTION: POST 1 RR125_8 Post Drilled for Internal Connector and Pre-Installed Door Hardware POST 2 RR125_8 Post Drilled for Internal Connector and Pre-Installed Door Hardware BEAM 2 Z45 Beam Formed w/ Locks BEAM 3 Z45 Beam Formed w/ Locks BEAM 4 Z45 w/ Door Stops INFILL 1...
- Page 4 PART: QTY: DESCRIPTION: COUNTER Custom Bamboo Top DOOR Pre Assembled Doors w/ White Infill COUNTER DOOR STEPS: 1- Attach BEAM 2 to Both POST 1 and POST 2 2- Attach BEAM 3 3- Insert INFILL 3 and Attached BEAM 2 NOTE: Door Hinge Channel Should be Above BEAM 3 STEP 02...
- Page 5 PART: QTY: DESCRIPTION: POST 6 RR91 @ 88” w. Base Plate BEAM 7 Z45 FORMED BEAM w/ LOCKS BEAM 7 POST 6 BEAM 7 STEPS: 1- Attach BEAM 7 and POST 6 STEP 03...
- Page 6 PHOTOS...
