Order #XXXXX - ECO-2C Podium
Item
Qty.
Description
1
1
13.5" x 28.681" Side Panel
2
1
27.252" x 13.5" Bottom Panel
3
1
13.5" x 29.429" Side Panel
4
1
28" x 13.5" Top Panel
5
1
Left Door Panel
6
1
Right Door Panel
7
1
27.681" x 25.504" Infill Panel
** Note: Panels [1-2] and [3-4] are
permanently connected with a hinge.
4
1
Hinge
5
6
Door
Door
Hinge
Panel
Panel
BACK VIEW
866.463.2611 • www.ecosystemsdisplays.com

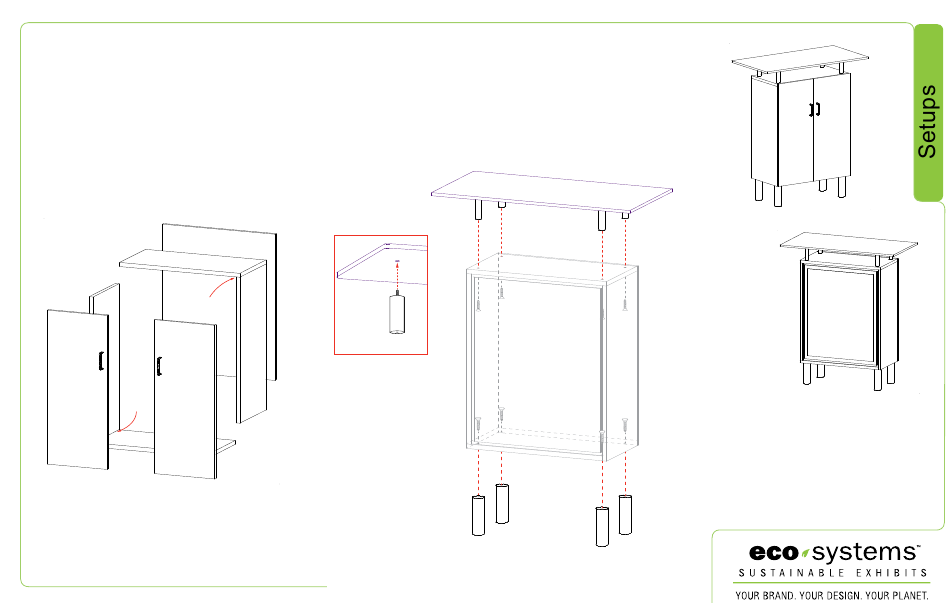

Steps:
1) Connect assembled panels [1/2] & [3/4] together,
with Infill Panel [7] inserted.
2) Attach Door Panels [5,6] to assembled counter body.
3) Install Legs to bottom of counter using bolts
4) Connect threaded stud of Standoff Barrels to
nut serts in
Counter
Top, as shown in detail.
5) Attach
Counter Top
to top panel using bolts as shown.
7
Counter
Top
Standoff
Barrel
Underside View
3
2
Counter Top
nut
sert
bolts
bolts
Legs
FRONT VIEW
Back view
Front view
When assembled
