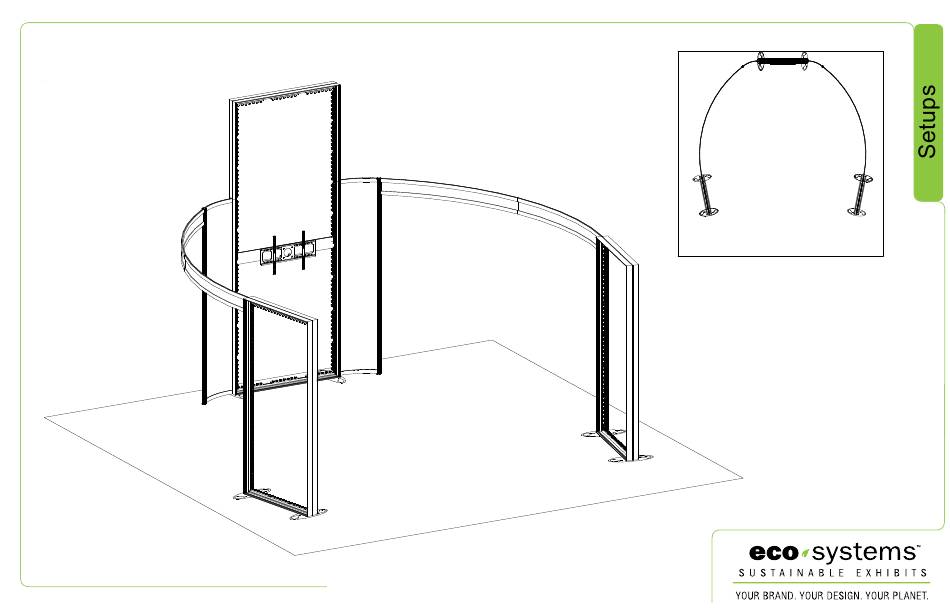

- Page 1 Order #XXXXX - ECO-4049 - 20’ x 20’ Sustainable Hybrid Island 20’ 20’ Plan View 866.463.2611 • www.ecosystemsdisplays.com...
-
Page 2: General Setup Instructions
General Setup Instructions •The setup instructions are created specifically for your configuration. •Setup instructions are laid out sequentially in levels, including exploded views and a logical series of steps for assembly. We encourage you to study the instructions before attempting to assemble your exhibit. Cleaning and Packing •Use non-abrasive cleaners when cleaning extrusions or ECO Glass inserts. - Page 3 ECO Panel Install Place ECO panel together with a vertical offset, slide down to lock connector in place. Panel Corner Connectors are installed just like ECO panels. Remove by off-setting top lock clips horizontally followed by separating vertically. SEG Graphic Install Graphic is installed corners first.
- Page 4 Item Qty. Description 1,1A Base Plate 96”h CEI152 Vertical Extrusion 2A,3A 48”h CEI152 Vertical Extrusion 4/4A 56”w CEI152 Horizontal Extrusion 52.35”w Z140 Horizontal Extrusion 6/6A 96”h RSG540 Vertical Extrusion 7/7A 19.72” Z45 curved Horizontal Extrusion 8/8A 19.72” Z45 curved Horizontal Extrusion Steps: 1) Install Base Plates [1] to bottom of horizontal [4] infill...
- Page 5 Steps: 1) Connect power cords to Supernova lights, as shown. Place transformers in U-channel Power on bottom horizontal of lightbox. Break 2) Apply Front SEG graphic to assembly. 3) Install Monitor Mount to horizontal [5]. Monitor Mount Attachment detail. 4) Apply Back SEG blocker to assembly. Monitor Mount Attachment Attach monitor mount to Z140 extrusion SEG Graphic Installation...
- Page 6 Item Qty. Description Base Plate 9/9A 96”h CEI152 Vertical Extrusion When assembled 10/10A 46”w CEI152 Horizontal Extrusion QTY 2 Steps: Power Power 1) Install Base Plates [1A] to bottom of lower extrusion [10] Break Break using bolts & wing nuts. 2) Attach horizontals [10,10A] between verticals [9,9A].
- Page 7 Item Qty. Description 11/11A 71.66”w Z245 Horizontal Extrusion 12/12A 71.66”w Z245 Horizontal Extrusion Steps: 1) Connect horizontals [11-11A], [12-12A] together. 2) Attach horizontal assembly [11/11A] between backwall vertical [6] & lightbox vertical [9A] as shown. 2) Attach horizontal assembly [12/12A] between backwall vertical [6A] &...
