Summary of Contents for Eco-Systems ECO-1036

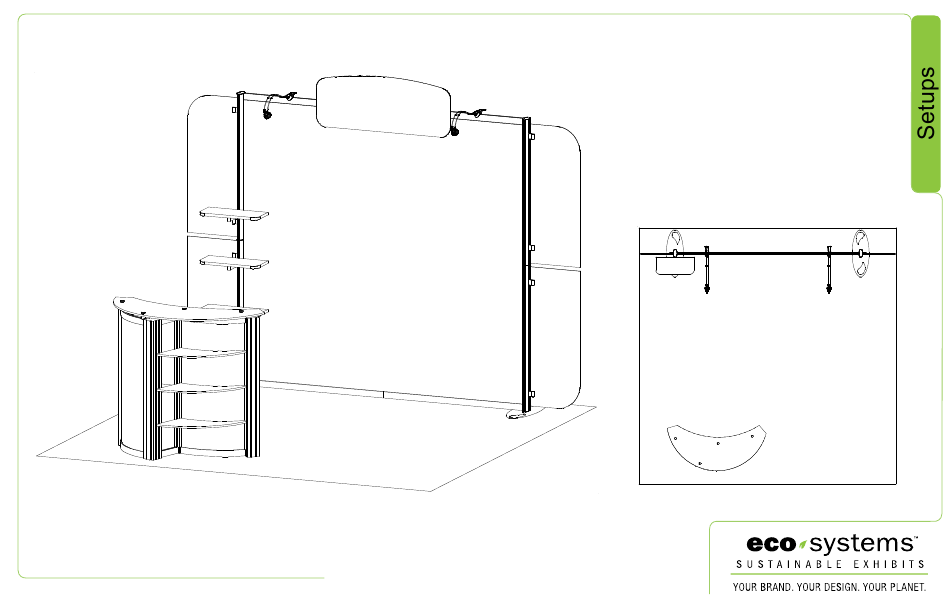

- Page 1 Order #XXXXX ECO-1036 with ECO-4C Podium - 10’x10’ Sustainable Exhibit 10’ 10’ Plan View 866.463.2611 • www.ecosystemsdisplays.com...
- Page 2 = 1 sq foot 866.463.2611 • www.ecosystemsdisplays.com...
-
Page 3: General Setup Instructions
General Setup Instructions •The setup instructions are created specifically for your configuration. •Setup instructions are laid out sequentially in levels, including exploded views and a logical series of steps for assembly. We encourage you to study the instructions before attempting to assemble your exhibit. Cleaning and Packing •Use non-abrasive cleaners when cleaning extrusions or ECO Glass inserts. - Page 4 Top View of Each Level 4,4A 5,5A Shelf Spline Base connectors Plate Shelf Header Wings Graphic (qty 4) Setup Hardware Shelf Base Spline Plate connectors Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) (Top level) 866.463.2611 •...
- Page 5 Top View of Each Level Lights Shelf Shelf Infills Counter Top Graphics 5B 7B 7A 5A Shelf 6A 6B Shelf Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) (Top level) 866.463.2611 • www.ecosystemsdisplays.com...
- Page 6 Item Qty. Description Steps: 8” x 22” oval Base Plate 1) Connect Base Plates [1] to bottom of verticals [2,3], using bolts. 2/2A 42”h OP91 Vertical Extrusion w/ TSP3 2) Assemble verticals [2-2A], [3-3A] together. 3/3A 42”h OP91 Vertical Extrusion w/ TSP3 3) Attach horizontals [4-5], [4A-5A] between vertical assemblies [2/2A], [3/3A].
- Page 7 Steps: 1) Affix Header Graphic to top horizontals, using Velcro. 2) Connect Lights to top horizontals. See Light Attachment detail. 3) Attach Shelves to vertical [2/2A]. See Shelf Attachment detail. 4) Connect Wings to verticals [2/2A], [3/3A]. See Wing Attachment detail.
- Page 8 Front View Item Qty. Description: Steps: 40”h Q918 Vertical Extrusion 1) Attach lower horizontal extrusions [5A,6A,7A] between vertical 40”h Q918 Vertical Extrusion extrusions [1,2,3,4] as shown. 40”h S44 Vertical Extrusion 2) Slide infills into place between verticals as shown except clear infills.
