Eco-Systems ECO-1010 Quick Start Manual

10'x10' sustainable hybrid display

Advertisement

Quick Links

Order #XXXXX - ECO-1010 - 10'x10' Sustainable Hybrid Display
10'
10'
Plan View
866.463.2611 • www.ecosystemsdisplays.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECO-1010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eco-Systems ECO-1010

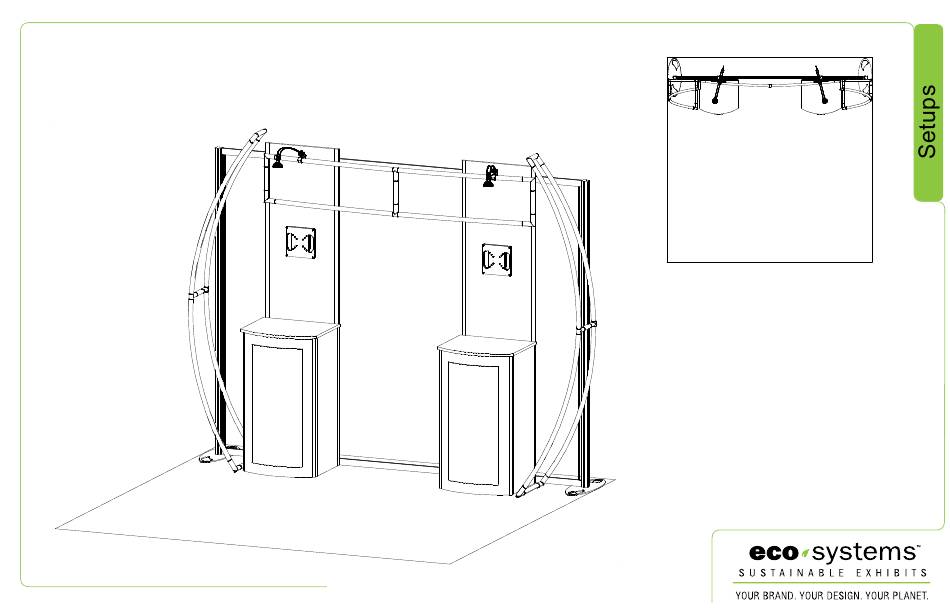

  • Page 1 Order #XXXXX - ECO-1010 - 10’x10’ Sustainable Hybrid Display 10’ 10’ Plan View 866.463.2611 • www.ecosystemsdisplays.com...
  • Page 2 General Setup Instructions •The setup instructions are created specifically for your configuration. •Setup instructions are laid out sequentially in levels, including exploded views and a logical series of steps for assembly. We encourage you to study the instructions before attempting to assemble your exhibit. Cleaning and Packing •Use non-abrasive cleaners when cleaning extrusions or ECO Glass inserts.
  • Page 3 ECO Panel Install Place ECO panel together with a vertical offset, slide down to lock connector in place. Panel Corner Connectors are installed just like ECO panels. Remove by off-setting top lock clips horizontally followed by separating vertically. SEG Graphic Install Graphic is installed corners first.
  • Page 4 Steps: Item Qty. Description 1) Connect Base Plates [1] to bottom of Base Plates verticals [2,6] using bolts. 87.75”h S44 Vertical Extrusion w/ PR63 2) Connect horizontals [7,7A,8,8A] 88”h S44 Vertical Extrusion w/ PR63 between verticals as shown. 88”h S44 Vertical Extrusion w/ PR63 3) Attach fabric graphics to back of display 87.75”h S44 Vertical Extrusion w/ PR63 using Velcro.
  • Page 5: Top View

    Item Qty. Description Steps: 40”h 90° Connector 1) Assemble lower Eco Panels & Connectors 20”w x 40”h Eco Panel [1] through [8] together in numerical order. 40”h 90° Connector 2) Assemble upper panels & connectors [1-2-3] 15”w x 40”h Eco Panel to lower panels as shown.
  • Page 6 Using Your Setup Instructions The Aero Overhead Sign Setup Instructions are created specifically for your configuration. They include an exploded view of the frame which is sequentially numbered. We encourage you to study the instructions before attempting to assemble your exhibit. Connections are kept very simple: no tools.
  • Page 7 Steps: 1) Attach left & right Aero frames to backwall verticals. Aero Frame-to-Vertical Attachment detail. When assembled Aero Frame-to-Vertical Attachment V20 Connector Bolt Attached to Aero Frame Insert bolts of aero frame into keyhole slote in groove of vertical extrusion, slide aero frame down to secure.
  • Page 8 FOR 10’x10’ BOOTH CONFIGURATION: Using Your Setup Instructions The Aero Overhead Sign Setup Instructions are created specifically for your configuration. They include an exploded view of the frame which is sequentially numbered. We encourage you to study the instructions before attempting to assemble your exhibit. Connections are kept very simple: no tools.
  • Page 9: Back View

    Steps: 1) Attach left & right Aero frames to backwall verticals using clips. See Aero Clip Connection detail. 2) Clip Lights onto Aero frame where desired. Light Attachment detail. When assembled Aero Clip Connection Insert Clip into top of LT Square Cap Connector. Aero clip Light Attachment...
