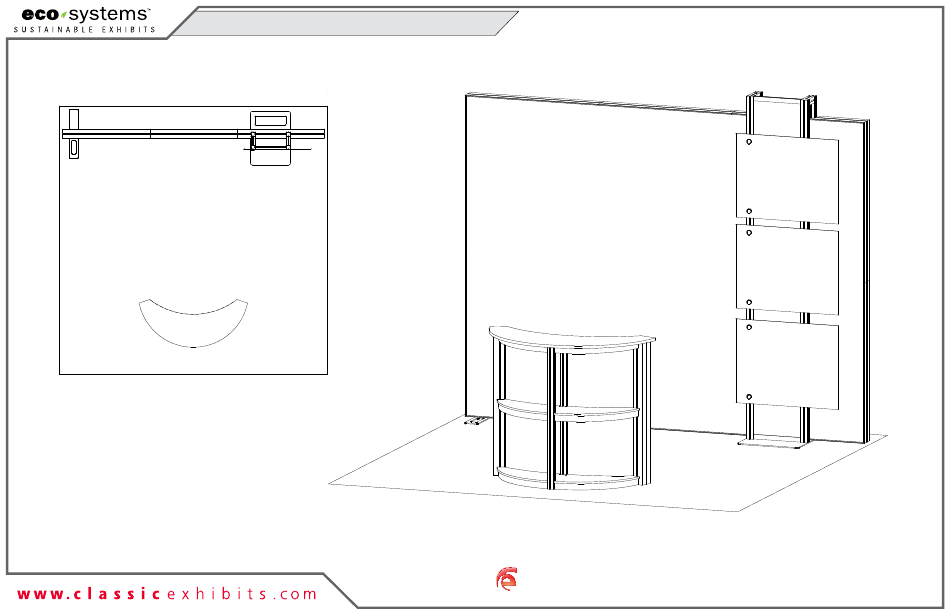

- Page 1 © 2020 Order #XXXXX ECO-1066D General Layout 10’ 10’ Top View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: General Setup Instructions
© 2020 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 3 © 2020 Order #XXXXX CEI110 Frame Assembly Corner Connection Corner Bracket Assembly 1) Slide TWO-PIECE TS RV 2 L-bracket into Upper Interior Center Slot of extrusion so that two Horizontal set screws are inside groove. Tighten two set screws to secure. Upper Slide verticals over Horizontal...
- Page 4 © 2020 SEG Installation Order #XXXXX 1) Locate channels along the edges of extrusions Channel Fold edges over. 2) Insert graphic corners first into channels then center point of graphic into channels. Allows for proportional fit around the perimeter of the extrusion. 3) Working from center to corner, slide silicon edge Insert into on graphic into channel.
- Page 5 © 2020 Order #XXXXX Case Packing Top View of Each Level 12 12 Graphics 13 13 Setup Hardware (4) 11 Level 1 (Bottom Level) Level 2 Level 3 Case 1 of 3...
- Page 6 © 2020 Order #XXXXX Case Packing Top View of Each Level (3) Infills Level 1 (Bottom Level) Level 2 Level 3 Case 2 of 3...
- Page 7 © 2020 Order #XXXXX Case Packing Case 3 of 3...
-
Page 8: Front View
© 2020 Order #XXXXX ECO-1066 Assembly Item Qty. Description Steps: Base Plate 1) Assemble CEI110 extrusions together, flat on floor. See CEI110 Frame Assembly sheet. Base Plate 2) Attach verticals [9] to base plate [2], using bolts. 3,3A 39” TSP50 Horizontal Extrusion w/ Lights 3) Connect verticals [8] and [8A] together. - Page 9 © 2020 Order #XXXXX ECO-1066 Attachments Item Qty. Description Steps: 48” S44 Vertical Extrusion 1) Attach verticals [10] to [9]. See Extrusion Connector detail. 14” Z33 Horizontal Extrusion 2) Attach horizontal [11] between [9/10], then slide infill between [9/10]. 4” S44 Horizontal Extrusion Repete step two more times.
- Page 10 © 2020 Order #XXXXX ECO-1066 Attachments (Cont’d) Steps: 1) Attach graphic panels to vertical assembly [9/10], using screw caps. Graphic Attachment detail. Completed Assembly Screw Graphic Attachment Standoff Connector Slide connector into groove of extrusion. Tighten set screws to secure in place. Screw standoff into connector.
- Page 11 © 2020 Order #XXXXX ECO-32C Counter Item Qty. Description Shelf Installation 40” Q914 Vertical Extrusion 40” S44 Vertical Extrusion Slide shelf into open area of counter, then 17,17A 18.669” Z45 Curved Horizontal Extrusion rotate into place, matching notches. 25.78” Z45 Curved Horizontal Extrusion 8.562”...
