INSTALLATION PROCEDURES

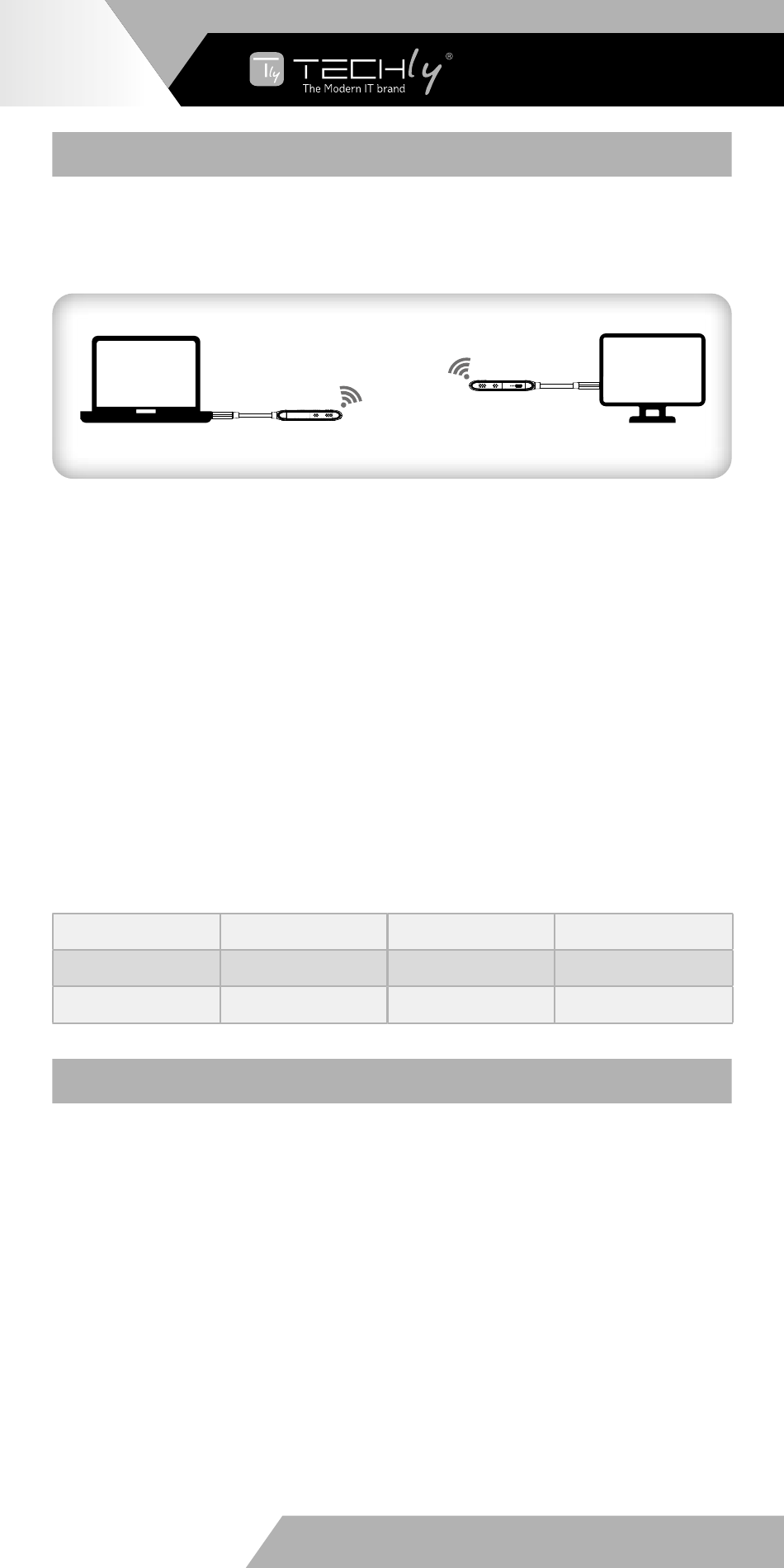

1. CONNECTION DIAGRAMS
One to one connection
Macbook
2. CONNECTION INSTRUCTIONS
• Connect the transmitter to the HDMI output port of the signal source device.
• Connect the receiver to the HDMI input port of the display device.
• Plug the power supply into the devices to get started.
Note: Please connect the Micro USB cable to the 5V 1A wall charger when
transmitting video 4K, for long-distance use or when the picture is not smooth.
3. SSID PAIRING
• Enter the SSID pairing mode by holding the transmitter and receiver's
channel switch buttons for five seconds. Both WiFi connection indicators
will flash quickly in yellow.
• When the SSID pairing is successful, the WiFi indicators on the transmitter
and receiver will change from quick flashing to slow flashing or steady on.
NO.
Channel 1
Channel 2
FAQ
Q: Why the receiver and transmitter cannot be connected, showing
"Search ipcolor Tx..." on the screen?
A: 1) Move transmitter and receiver closer.
2) Re-power the transmitter or receiver.
3) Re-pair the transmitter and receiver.
Q: Why the Wi-Fi indicator is steady on but showing "Please check the
TX input signal"?
A: 1) Make sure the TX has HDMI input and that the resolution is within the
specified range.
2) Try to connect the signal source directly to the display device, or
change the signal source and HDMI cable and test again.
