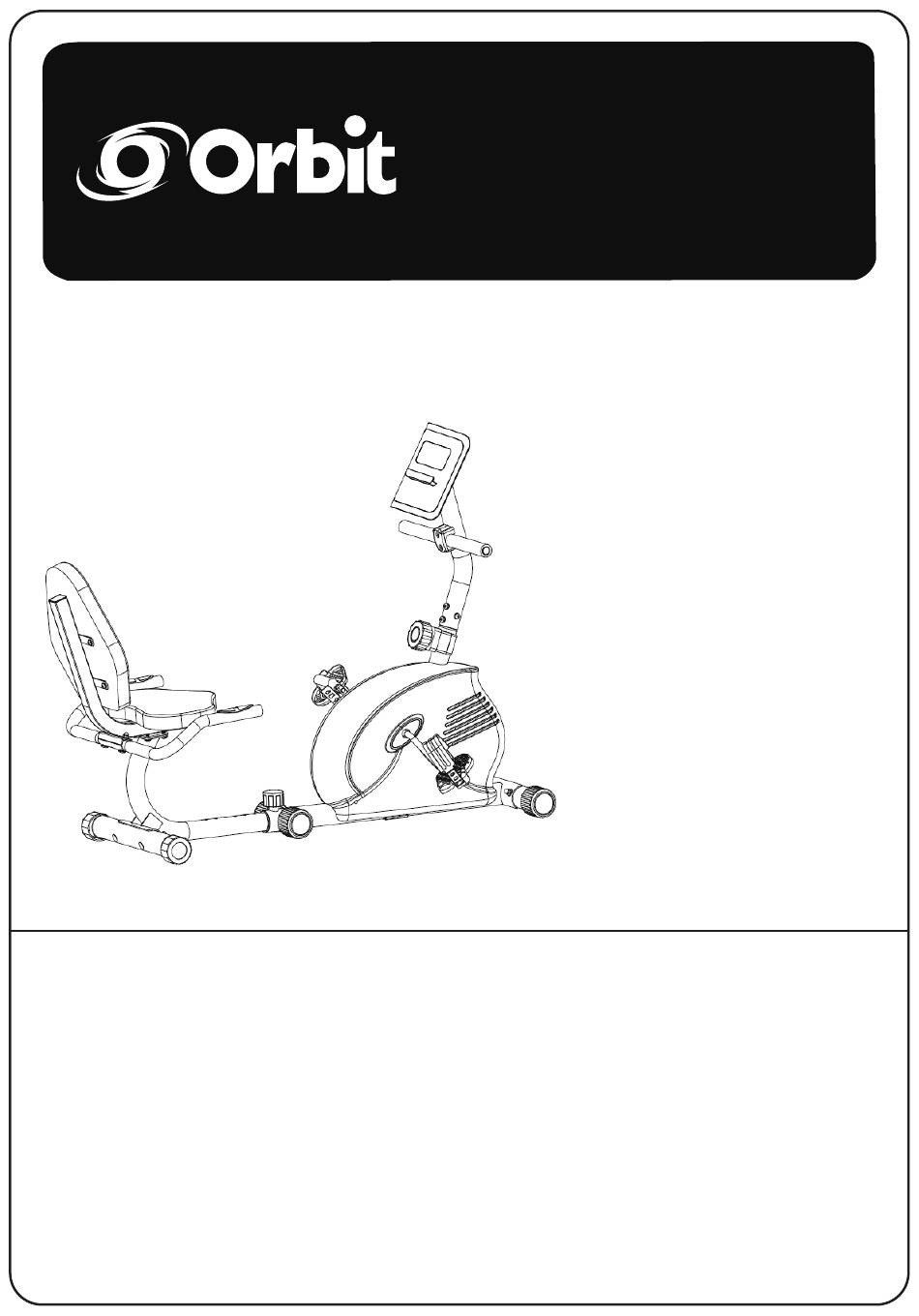

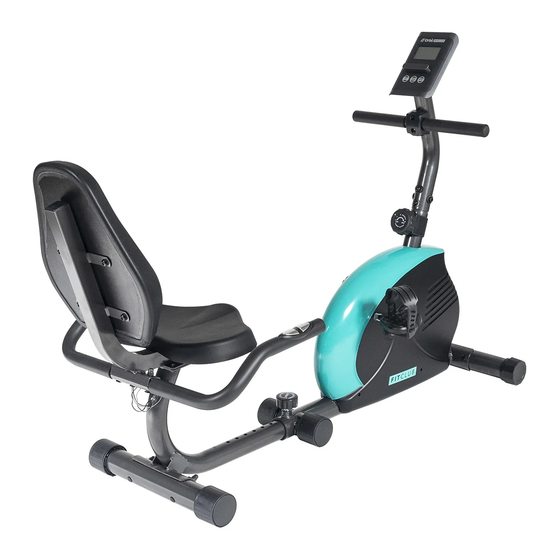

OBR8523FC FitClub Recumbent Bike
Owner's Manual OBR8523FC
CAUTION:
1. Weight on this product should not exceed 220lbs / 100kgs.
2. Exercise of a strenuous nature, as is customarily done on this equipment, should not be
undertaken without first consulting a physician. No specific health claims are made or implied
as they relate to the equipment.
Measurements made by the equipment are believed to be accurate, but only the
measurements of your physician should be relied upon.
IMPORTANT: Read all instructions carefully before using this product. Retain this product
owner's manual for future reference.
OBR8523FC
• Warranty
• Assembly
• Parts
TOOLS REQUIRED
FOR ASSEMBLY:
- Adjustable Wrench
- Pliers
- Hammer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FitClub OBR8523FC and is the answer not in the manual?

Questions and answers

Related Manuals for Orbit FitClub OBR8523FC

Summary of Contents for Orbit FitClub OBR8523FC

  • Page 1 OBR8523FC OBR8523FC FitClub Recumbent Bike • Warranty • Assembly • Parts TOOLS REQUIRED FOR ASSEMBLY: - Adjustable Wrench - Pliers - Hammer Owner’s Manual OBR8523FC CAUTION: 1. Weight on this product should not exceed 220lbs / 100kgs. 2. Exercise of a strenuous nature, as is customarily done on this equipment, should not be undertaken without first consulting a physician.

  • Page 2: Assembly Advice

    ASSEMBLY ADVICE Dear Customer, Congratulations on your purchase. Please read this instruction manual very carefully before using this item. You will find important information regarding safety of your RECUMBENT BIKE. Note the following precautions before assembling or operating the machine. ASSEMBLY ADVICE Carefully read and understand the Assembly Instructions: •...
  • Page 3 WARNINGS READ BEFORE USE Before using this Equipment, Obey the following warnings: • Keep children and pets away from the RECUMBENT BIKE at all times Children should be supervised to ensure that they do not play with the appliance. DO NOT leave unattended children in the same room with the machine. •...

  • Page 4: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required to do the necessary tasks. Equipment must be regularly examined for damage and wear. The owner is responsible to make sure that regular maintenance is done. Worn or damaged components must be repaired or replaced immediately.
  • Page 5 MAINTENANCE INSTRUCTIONS TROUBLESHOOTING No Display / Partial Display / Unit will not Turn On: • Check batteries in Console, replace if required, ensure connection to speed sensor is good. • Connection should be secure and undamaged. Replace adapter or connection at unit if either are damaged.
  • Page 6 • Frame, Covers, Seat, Seat Post, Seat Slider, Crank Arms, Pedals (with Foot Strap), Handlebar, Adjustment Handles, Belt(or Chain), Axle, Flywheel, Console, Data Cable, Brake or Magnet. See Owners Manual for Part Names and Numbers. Contact the Orbit Fitness Customer Service Department at: Email: service@orbitfitness.com.au Phone: (08) 6241 3050 Address: 28 Fellowship Road Gnangara, Western Australia 6077 Website: www.orbitfitness.com.au...

  • Page 7: Important Safety Notice

    IMPORTANT SAFETY NOTICE Note the following precaution before assembling and operating the machine. 1. Assemble the machine exactly as the descriptions in the instruction manual. 2. Check all the bolts, nuts and other connections before using the machine for the first time to ensure the machine is in the safe condition.

  • Page 8: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 9: Parts List

    PARTS LIST DESCRIPTION DESCRIPTION Front main frame Foam grip Rear main frame Square end cap Seat frame Backrest Handlebar Seat Crank Round end cap Rear bottom tube Tension control 7 L/R Pedals 1 pr Computer Front bottom tube Tension control cover Carriage bolt Flat washer Arc washer...
  • Page 10 Assembly Instruction Step 1: Attach the front bottom tube（8）and rear bottom tube（6）to the front main frame（1） and rear main frame（2）with the carriage bolt(9), arc washer(10), acorn nut(11), and attach front end cap (13) to the front main frame(1). Step 2: Firstly, connect the pulse sensor wire (32) and connecting wire (33) well.
  • Page 11 Step 3: Fix the seat (25) and backrest (24) to the seat frame (3) with the Allen head bolt (21), flat washer (18). Step 4: A: Fix the seat frame (3) to the rear main frame (2) with Hexagon head screw (14) and flat washer (18).
  • Page 12 Step 5: Attach the Pedal (7L/R) to the crank (5). NOTE: Be sure the pedal marked (R) is attached to the crank (R) and tighten in clockwise direction, the pedal marked (L) is attach to the crank (L) and tightened in the counterclockwise direction. Or, it would damage the pedals.
  • Page 13 Step 6: Connect the sensor wire (34) and connecting wire (33) with the wires coming from the computer (28). And then fix the handlebar post (39) to the front main frame (1) with hexagon head screw(21) and arc washer(10). Step7: A: Tighten handlebar (15) to the handlebar post(39) with Hexagon round screw(40), elastic washer(35) and flat washer(18).
  • Page 14 USING YOUR RECUMBENT BIKE Using your Recumbent bike will provide you with several benefits. It will improve your physical fitness, tone your muscles and in conjunction with a calorie-controlled diet, help you lose weight. WARM-UP PHASE The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength-training or aerobic exercising.
