NSD ABSOCODER NCV-30HBNL8 Specifications & Instruction Manual page 39

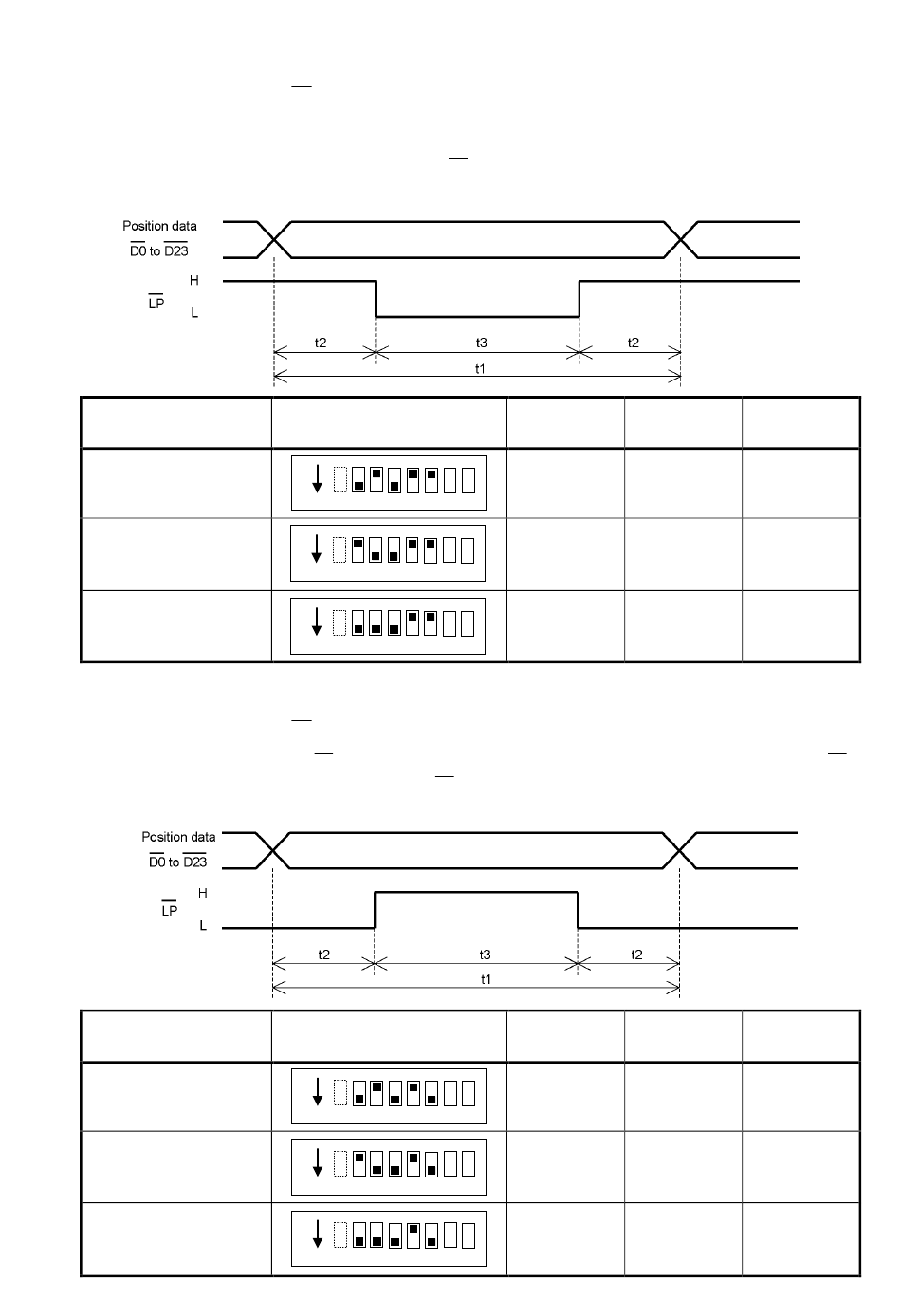

(2) Low-speed reading (at LP=LOW)
When low-speed reading (at LP =LOW) is selected, the position data output is updated when the LP
output signal is HIGH. It stabilizes when the LP output signal is LOW, so the position data should be
read at that time.
Position data update
cycle
12.8ms
25.6ms
51.2ms
(3) Low-speed reading (at LP=HIGH)
When low-speed reading (at LP =HIGH) is selected, the position data output is updated when the LP
output signal is LOW. It stabilizes when the LP output signal is HIGH, so the position data should be
read at that time.
Position data update
cycle
12.8ms
25.6ms
51.2ms
Switch setting
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
Switch setting
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
32
t1 t2
12.8ms 3.2ms
25.6ms 6.4ms
51.2ms 12.8ms
t1 t2
12.8ms 3.2ms
25.6ms 6.4ms
51.2ms 12.8ms
t3
6.4ms
12.8ms
25.6ms
t3
6.4ms
12.8ms
25.6ms
