6. WIRING

6-1. Connection between Converter and ABSOCODER Sensor

The length of the extendable cable has a limitation depending on the models of ABSOCODER sensor and
sensor cable. For more details, refer to "3-2. ABSOCODER Sensor Specifications ".

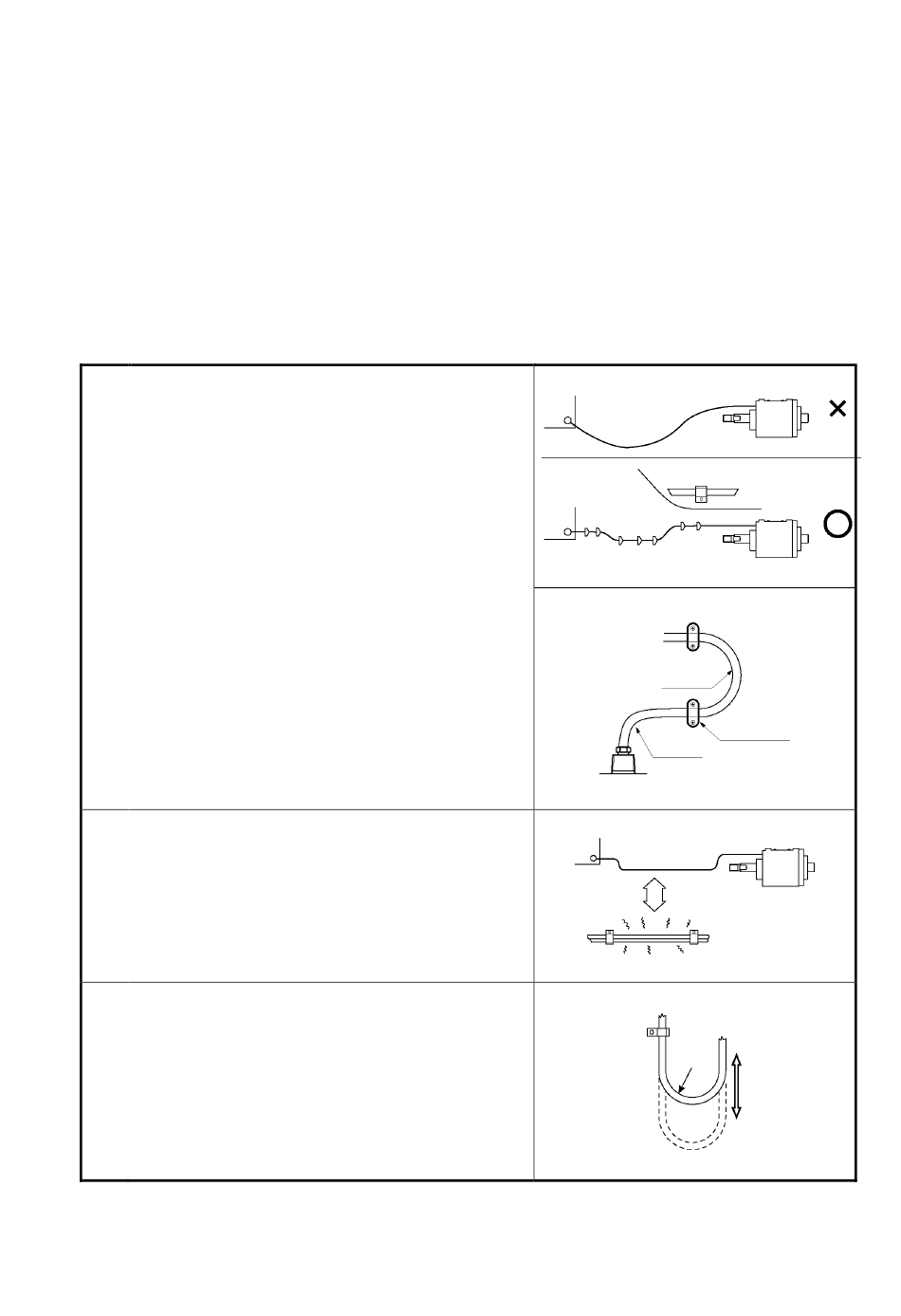

●Wiring precautions
(1) The sensor cable should be clamped as shown in
the right figure to prevent excessive tension from
being applied to the cable connectors.
(2) The sensor cable should be located at least 300mm
away from power lines and other lines which
generate a high level of electrical noise.
(3) If the cable is moved under the state of bending like
a horseshoe, a robotic cable should be used. The
bend radius should never be less than 75 mm.
300mm
or more
20
Cable clamp
R40
or more
Cable clamp
R40
or more
R75
or more
