Temperature/Humidity Diagram - B&R Multi-Touch 900 User Manual

Order number
Mechanical properties
Front
Frame
Panel overlay
Material
Light background color
Dark border color around display
Gasket
Dimensions
Width
Height
Weight
1) Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.
2) At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.
3) Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).

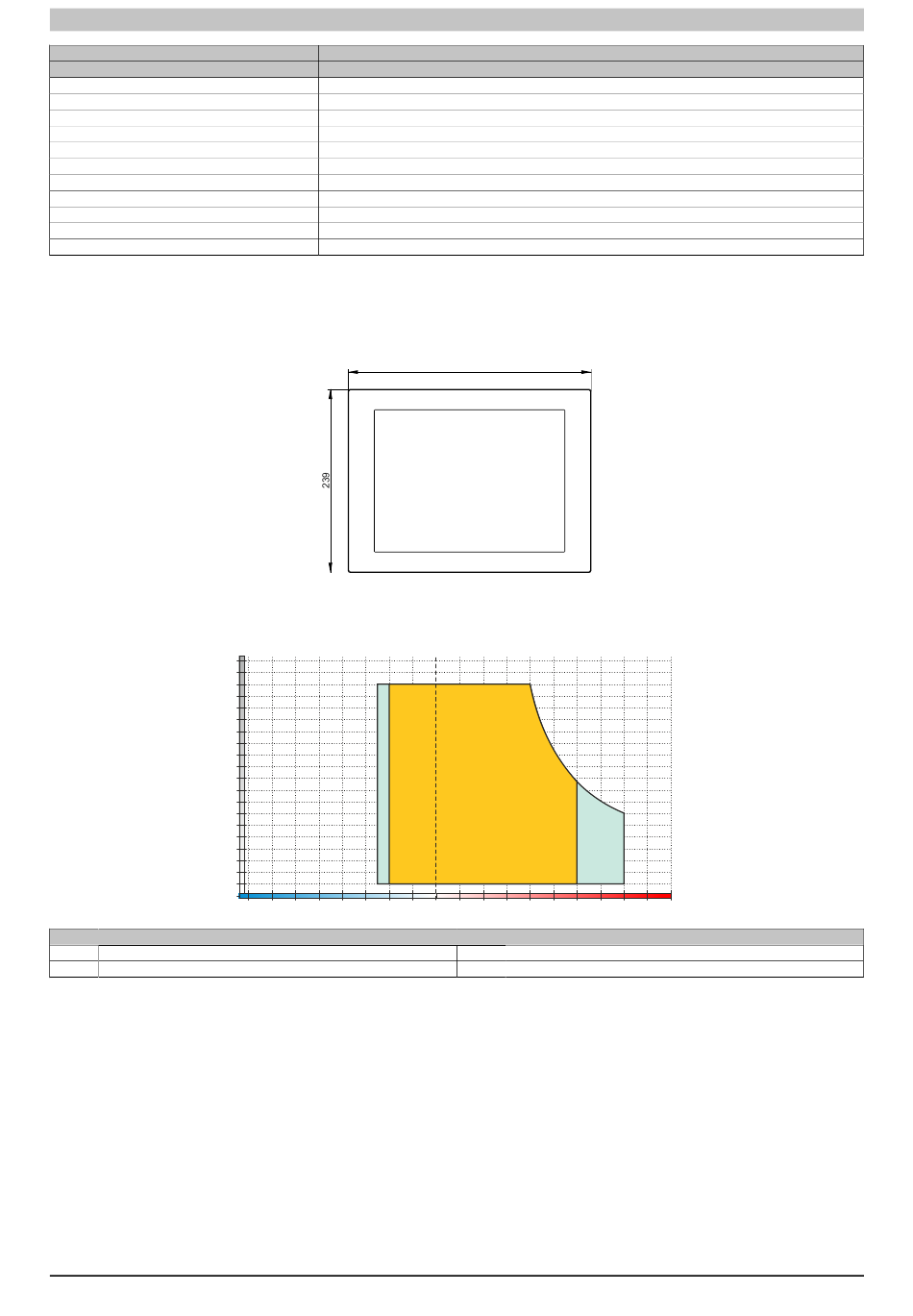

4.2.1.1.4 Dimensions

4.2.1.1.5 Temperature/Humidity diagram

100
95
90
80
70
60
50
40
30
20
10
(1) Operation
(2) Storage and transport
Panel PC 900 (Skylake) User's manual V 1.10
RH [%]
5
0
-80 -70 -60 -50 -40 -30 -20 -10
5AP923.1215-00
Aluminum, coated
Polyester
RAL 9006
RAL 7024
3 mm fixed gasket
315 mm
239 mm
2200 g
315
(1)
0 10 20 30 40 50 60
Diagram legend
T [°C] Temperature in °C
RH [%] Relative humidity (RH) in percent and non-condensing
Technical data
(2)
T [°C]
70 80 90 100
71
