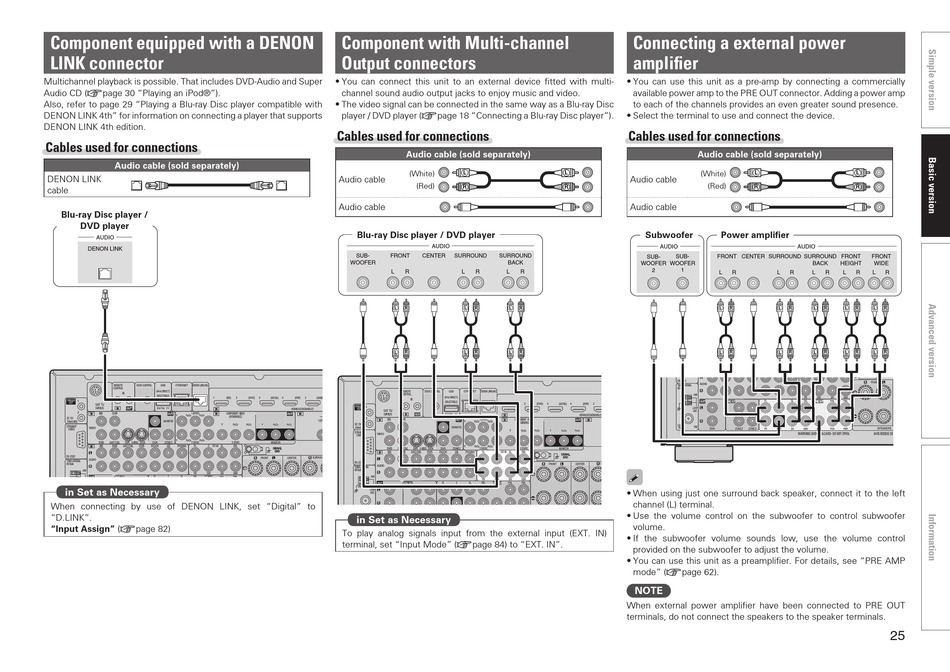

Component equipped with a DENON
LINK connector
Multichannel playback is possible. That includes DVD-Audio and Super
Audio CD (vpage 30 "Playing an iPod®").
Also, refer to page 29 "Playing a Blu-ray Disc player compatible with
DENON LINK 4th" for information on connecting a player that supports
DENON LINK 4th edition.
Cables used for connections
Audio cable (sold separately)
DENON LINK
cable
Blu-ray Disc player /
DVD player
AUDIO
DENON LINK
in Set as Necessary
When connecting by use of DENON LINK, set "Digital" to
"D.LINK".
"Input Assign" (vpage 82)
Component with Multi-channel
Output connectors
• You can connect this unit to an external device fitted with multi-
channel sound audio output jacks to enjoy music and video.
• The video signal can be connected in the same way as a Blu-ray Disc
player / DVD player (vpage 18 "Connecting a Blu-ray Disc player").
Cables used for connections
Audio cable (sold separately)
(White)
L
Audio cable
(Red)
R
Audio cable
Blu-ray Disc player / DVD player
AUDIO
SUB- FRONT CENTER SURROUND SURROUND
WOOFER BACK
L R L R L
L R L R L
L R L R L
in Set as Necessary
To play analog signals input from the external input (EXT. IN)
terminal, set "Input Mode" (vpage 84) to "EXT. IN".
Connecting a external power
amplifier
• You can use this unit as a pre-amp by connecting a commercially
available power amp to the PRE OUT connector. Adding a power amp
to each of the channels provides an even greater sound presence.
• Select the terminal to use and connect the device.
Cables used for connections
Audio cable (sold separately)
L
Audio cable
R
Audio cable
Subwoofer
AUDIO
SUB- SUB-
WOOFER
WOOFER
2 1
R
R
R
• When using just one surround back speaker, connect it to the left
channel (L) terminal.
• Use the volume control on the subwoofer to control subwoofer
volume.
• If the subwoofer volume sounds low, use the volume control
provided on the subwoofer to adjust the volume.
• You can use this unit as a preamplifier. For details, see "PRE AMP
mode" (vpage 62).
NOTE
When external power amplifier have been connected to PRE OUT
terminals, do not connect the speakers to the speaker terminals.
(White)
L L
(Red)
R R
Power amplifier
AUDIO
FRONT CENTER SURROUND SURROUND FRONT FRONT
BACK HEIGHT WIDE
L R L R L R L R L
L R L R L R L R L
L R L R L R L R L
R
R
R
