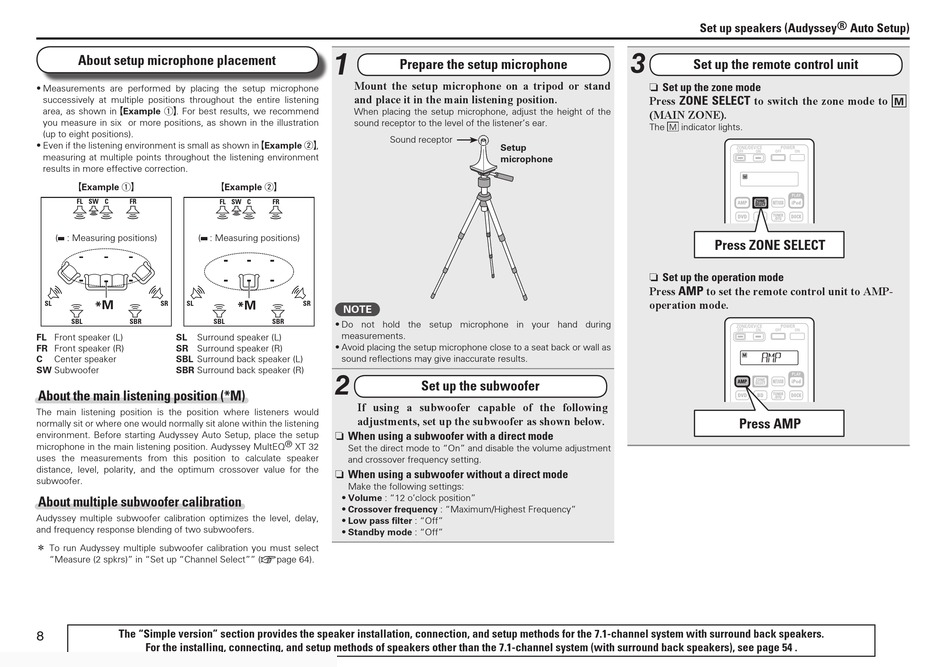

About setup microphone placement
• Measurements are performed by placing the setup microphone
successively at multiple positions throughout the entire listening
area, as shown in GExample qH. For best results, we recommend
you measure in six or more positions, as shown in the illustration
(up to eight positions).
• Even if the listening environment is small as shown in GExample wH,
measuring at multiple points throughout the listening environment
results in more effective correction.
GExample qH
FL SW C FR
( : Measuring positions) ( : Measuring positions)
* M
SL SR SL
SBL SBR SBL
FL Front speaker (L) SL Surround speaker (L)
FR Front speaker (R) SR Surround speaker (R)
C Center speaker SBL Surround back speaker (L)
SW Subwoofer SBR Surround back speaker (R)
A bout the main listening position (*M)
The main listening position is the position where listeners would
normally sit or where one would normally sit alone within the listening
environment. Before starting Audyssey Auto Setup, place the setup
microphone in the main listening position. Audyssey MultEQ ® XT 32
uses the measurements from this position to calculate speaker
distance, level, polarity, and the optimum crossover value for the
subwoofer.
About multiple subwoofer calibration
Audyssey multiple subwoofer calibration optimizes the level, delay,
and frequency response blending of two subwoofers.
z To run Audyssey multiple subwoofer calibration you must select
"Measure (2 spkrs)" in "Set up "Channel Select"" (vpage 64).
The "Simple version" section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.
8
For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 54 .
1
Mount the setup microphone on a tripod or stand
and place it in the main listening position.
When placing the setup microphone, adjust the height of the
sound receptor to the level of the listener's ear.
Sound receptor
GExample wH
FL SW C FR
* M
SR
NOTE
SBR
• Do not hold the setup microphone in your hand during
measurements.
• Avoid placing the setup microphone close to a seat back or wall as
sound refl ections may give inaccurate results.
2
If using a subwoofer capable of the following
adjustments, set up the subwoofer as shown below.
n When using a subwoofer with a direct mode
Set the direct mode to "On" and disable the volume adjustment
and crossover frequency setting.
n When using a subwoofer without a direct mode
Make the following settings:
• Volume : "12 o'clock position"
• Crossover frequency : "Maximum/Highest Frequency"
• Low pass fi lter : "Off"
• Standby mode : "Off"
Prepare the setup microphone
Setup
microphone
Set up the subwoofer
Set up speakers (Audyssey ® Auto Setup)
3
Set up the remote control unit
n Set up the zone mode
Press ZONE SELECT to switch the zone mode to
(MAIN ZONE).
The M indicator lights.
Press ZONE SELECT
n Set up the operation mode
Press AMP to set the remote control unit to AMP-
operation mode.
Press AMP
M
