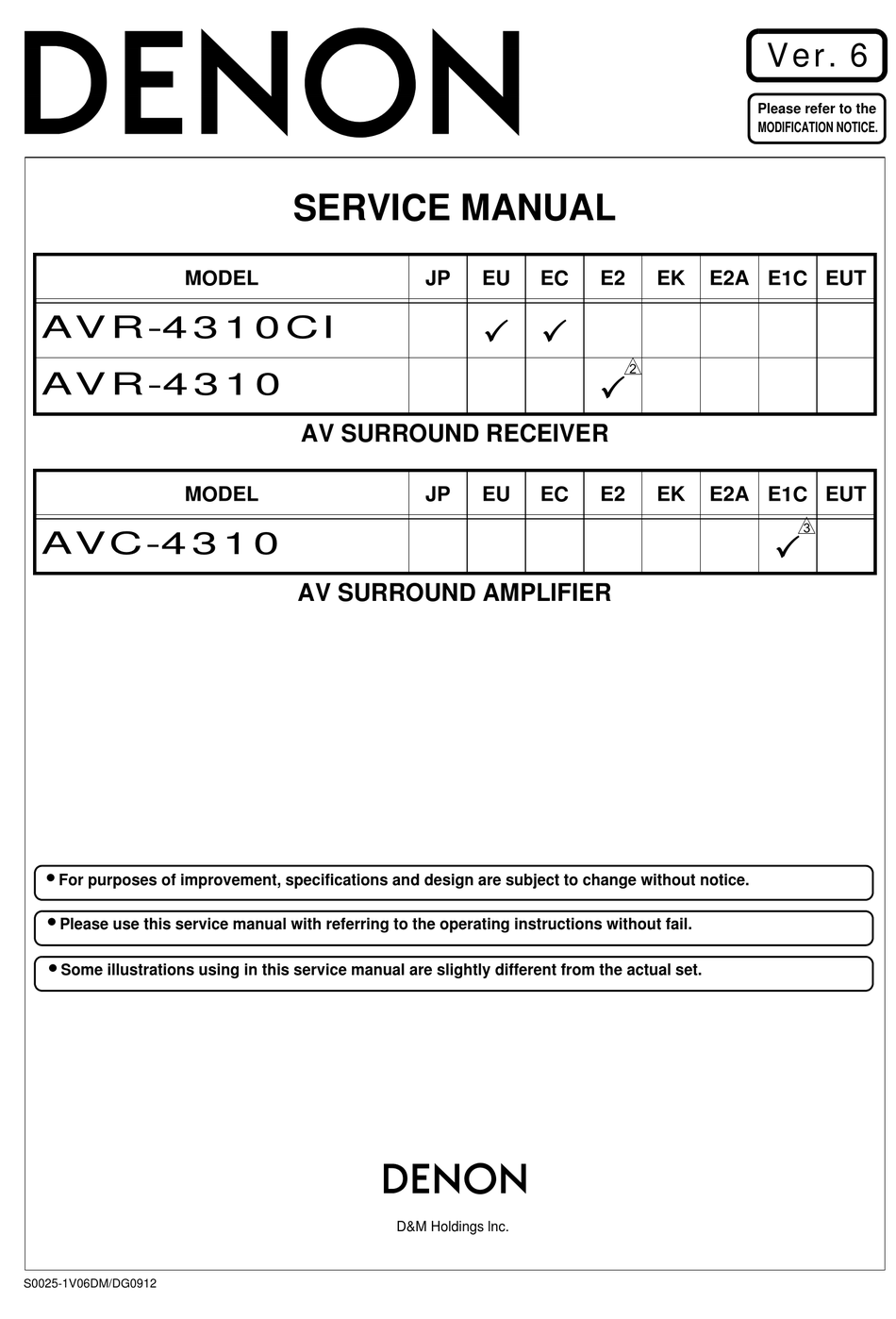

AVR-4310CI AVR-4310 AV SURROUND RECEIVER MODEL E2A E1C EUT AVC-4310 AV SURROUND AMPLIFIER ● For purposes of improvement, specifications and design are subject to change without notice. ● Please use this service manual with referring to the operating instructions without fail.
Page 4
If wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly as they were originally bundled or placed afterward. Otherwise, incorrect arrangement can be a cause of noise generation. Wire arrangement viewed from the top Front Panel side Back Panel side AVR-4310CI/AVR-4310/AVC-4310...
Page 5
So make sure to memorize your setting for restoring after the initialization. JIG to use for servicing When you repair the printing board, you can use the following JIG. Please order to Denon Official Service Distributor in your region if necessary.
Page 6
(Ref. No. of EXPLODED VIEW : B-5) (Ref. No. of EXPLODED VIEW : D-2) 232C UNIT (Ref. No. of EXPLODED VIEW : B-6) P.AMP UNIT Refer to "DISASSEMBLY 9.P.AMP UNIT" and "EXPLODED VIEW" P.AMP UNIT (Ref. No. of EXPLODED VIEW : D-1〜7) AVR-4310CI/AVR-4310/AVC-4310...
Page 7
Direction of photograph: A 1. FRONT PANEL UNIT ASSY FRONT PANEL UNIT ASSY Proceeding : TOP COVER → (1) Remove the screws. View from bottom (2) Cut the wire clampers then disconnect the connector wires. CX021 Direction of photograph: D CY062 AVR-4310CI/AVR-4310/AVC-4310...
Page 8
If the FRONT PANEL ASSY is mounted on the chassis with the DOOR closed, the EARTH PLATE(DOOR) will hit the CHASSIS and break. DOOR open EARTH PLATE (DOOR) Direction of photograph: A DOOR DOOR closed (EARTH PLATE (DOOR) will be broken.) EARTH PLATE (DOOR) DOOR Direction of photograph: A AVR-4310CI/AVR-4310/AVC-4310...
Page 9
(1) Remove the Sheets, then remove the screws. Sheets View from bottom (2) Remove the screws. Direction of photograph: A (3) Disconnect the connector wires and FFC Cable, then remove the screws. CX074 CX055 FFC Cable CY052 CY101 CY153 AVR-4310CI/AVR-4310/AVC-4310...
Page 10
(4) Remove the FFC cover, PWB HOLDER and acetate tapes. Cut the wire clamper, then disconnect the connector wire and FFC Cable. FFC Cable CX068 Direction of photograph: C FFC Cover Acetate tape Acetate tape PWB HOLDER (5) Cut the wire clamper, then disconnect the connector wire. BACK PANEL UNIT ASSY CX091 Direction of photograph: D AVR-4310CI/AVR-4310/AVC-4310...
Page 11
(1) Remove the alminium tape, then cut the wire clampers. Disconnect the connector wire, FFC Cables, and board to board. FFC Cable CX047 FFC Cable MAIN CPU UNIT CY124 DIGTAL UNIT ASSY Board to board CX124 FFC Cable CY061 CX058 Alminium Tape (2) Remove the screws. Direction of photograph: A AVR-4310CI/AVR-4310/AVC-4310...
Page 12
A.VIDEO UNIT, AUDIO UNIT and RADIATOR UNIT ASSY → (1) Disconnect the board to board. Direction of photograph: C MAIN CPU UNIT (2) Disconnect the connector wires. CX192 CX073 (3) Remove the screws. A.VIDEO UNIT AUDIO UNIT Direction of photograph: A RADIATOR UNIT ASSY AVR-4310CI/AVR-4310/AVC-4310...
Page 13
: TOP COVER → → DIGITAL UNIT ASSY A.VIDEO UNIT, AUDIO UNIT and RADIATOR UNIT ASSY → → → REG UNIT AMP UNIT (1) Disconnect the VH connector and conector. CX871 CX872 CX874 CX875 View from bottom CX877 CX876 CX891 CX873 CX851 AVR-4310CI/AVR-4310/AVC-4310...
Page 14
Proceeding : TOP COVER → → DIGITAL UNIT ASSY A.VIDEO UNIT, AUDIO UNIT and RADIATOR UNIT ASSY → → → → REG UNIT AMP UNIT P.AMP JOINT UNIT → P.AMP UNIT (1) Remove the screws. Direction of photograph: B AVR-4310CI/AVR-4310/AVC-4310...
Page 15
Press and hold in the "STATUS" and " ▽ " buttons for over 3 seconds with the power turned on to turn the " " display off. RS-232C communications are now enabled. PURE DIRECT/ STANDARD DIRECT STEREO ENTER STATUS CURSOR RETURN SIMULATION ON/OFF ZONE2 MENU AVR-4310CI/AVR-4310/AVC-4310...
Page 16
* H D D S P : C 0 0 0 2 . 0 0 0 HD RADIO DSP MultEQ Pro APP * M u l t E Q P r o A P P MultEQ Pro ICL * M u l t E Q P r o I C L AVR-4310CI/AVR-4310/AVC-4310...
Page 17
P R O T E C T H I S T O R Y : T H E R M A L When the "STATUS" button is pressed again after the above protection history is displayed, the normal display reappears. AVR-4310CI/AVR-4310/AVC-4310...
Page 18
(3) Press the "ENTER" button. (4) Press the "ON/OFF" button to turn the power off. (5) Then, press the "ON/OFF" button to turn the power on. NOTE : Backup data(Remove settings for Installer Setup) initialization is carried out automatically. AVR-4310CI/AVR-4310/AVC-4310...
Page 19
Once updating starts, normal operations on the AVR-4310 cannot be performed until updating is completed. Also, setting items of the GUI menu of AVR-4310 or setting items of the image adjustment may be initialized. Make a note of the settings before updating, and set them again after updating. AVR-4310CI/AVR-4310/AVC-4310...
Page 20
1.3. About the error code See the chart below for error codes, details of faults, and coping strategies when firmware updates are performed through DPMS (Denon Product Management Server). Error Details of Error code Display Coping strategies code Reset and update again.
Page 21
Firmware file data was requested Check the network connection. C o n n e c t i o n f a i l but it timed out when rewriting Carry out the update in an environment Main CPU. that has little network load. AVR-4310CI/AVR-4310/AVC-4310...
Page 22
Turn the power off then back on. S u b * * * m i n Updating starts automatically. for rewriting sent from DM860 U p d a t i n g f a i l (when a Check Sum error). AVR-4310CI/AVR-4310/AVC-4310...
Page 23
* * * m i n Carry out the update in an environment DM860 related firmware (Applica- C o n n e c t i o n F a i l A 4 that has little network load. tion Mode). AVR-4310CI/AVR-4310/AVC-4310...
Page 24
E t h e r I M G * * * m i n rewriting DM860 related firmware. Carry out the update in an environment U p d a t i n g f a i l that has little network load. AVR-4310CI/AVR-4310/AVC-4310...
Page 25
DM860 Boot Loader A0 〜 B2 U p d a t i n g E t h e r I M G * * * m i n DM860 Image A0 〜 B2 U p d a t i n g AVR-4310CI/AVR-4310/AVC-4310...
Page 26
(7) Adjust the Variable Resistors of other channels in the same way. (8) After 5 minutes from (6), turn VR101 to set the voltage to 12 mV ± 0.5 mV DC. (9) Adjust the Variable Resistors of other channels in the same way. AVR-4310CI/AVR-4310/AVC-4310...
Page 27
8U-110048-4 POWER SUPPLY Unit VR501 VR301 VR701 VR601 VR401 VR201 VR101 Audio Section Adjustment volume is set for 8U-110049-1 〜 7. The test point is at 8U-110050-3. Insert an adjustment driver / connection terminal from an adjustment aperture of 8U-110048-4(POWER SUPPLY Unit)P.W.B.. AVR-4310CI/AVR-4310/AVC-4310...
Page 28
SURROUND MODES AND PARAMETERS AVR-4310CI/AVR-4310/AVC-4310...
Page 33
After repairing, also replace the fuse. AVR-4310CI/AVR-4310/AVC-4310...
Page 34
DVD for the function. (COMPONENT1 input) Checking the video convert ON/OFF settings Video convert ON Video convert OFF Input Input Input Input Input Input CVBS COMPONENT CVBS COMPONENT Interlace No output No output Progressive Interlace Progressive no output AVR-4310CI/AVR-4310/AVC-4310...
Page 35
IC108-9pin : L(0V) Check soldering of IC108. Check input/output of AMP. Input : IC112-5pin Check soldering of IC112. Output : IC112-7pin Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 36
IC108-9pin : L(0V) Check soldering of IC108. Check input/output of AMP. Input : IC112-5pin Check soldering of IC112. Output : IC112-7pin Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 37
IC108-9pin : L(0V) Check soldering of IC108. Check input/output of AMP. Input : IC112-5pin Check soldering of IC112. Output : IC112-7pin Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 38
Output : IC108-13pin Check soldering of IC108. Check input/output of AMP. Input : IC112-5pin Check soldering of IC112. Output : IC112-7pin Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 39
2.2. ZONE2 MONITOR OUT (CVBS) Output NG ZONE2 MONITOR OUT (CVBS) Output NG. ※ When checking operation, select DVD for the function. Turn on ZONE2 and check Check ZONE2 is power on. again. Input Input Input CVBS COMPONENT No output AVR-4310CI/AVR-4310/AVC-4310...
Page 40
IC105-10pin : H(+5V) Check soldering of IC105. Check input/output of AMP. Input : IC112-3pin Check soldering of IC112. Output : IC112-1pin Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 41
IC105-10pin : H(+5V) Check soldering of IC105. Check input/output of AMP. Input : IC112-3pin Check soldering of IC112. Output : IC112-1pin Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 42
2.3. VCR/DVR MONITOR OUT(CVBS) Output NG VCR/DVR MONITOR OUT(CVBS) Output NG. ※ When checking operation, select DVD for the function. Input Input Input CVBS COMPONENT No output No output VCR : G DVR : H AVR-4310CI/AVR-4310/AVC-4310...
Page 43
Check IC303 and CX141 solder- Input : IC101-12pin IC101-16pin : H(5V) ing, or DIGITAL UNIT flaw. Output : IC101-24pin Check soldering of IC101. Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 44
Check IC303 and CX141 solder- Input : IC101-3pin IC101-7pin : H(5V) ing, or DIGITAL UNIT flaw. Output :IC101-33pin Check soldering of IC101. Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 45
DVD for the function. (COMPONENT1 Input) Checking the video convert ON/OFF settings Video convert ON Video convert OFF Input Input Input Input Input Input CVBS COMPONENT CVBS COMPONENT No output No output Interlace Progressive Interlace Progressive No output AVR-4310CI/AVR-4310/AVC-4310...
Page 46
Check input/output of AMP. Input Y: IC111-3pin Input C: IC111-5pin Check soldering of IC111. Output Y : IC111-1pin Output C : IC111-7pin Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 47
Check input/output of AMP. Input Y : IC111-3pin Input C : IC111-5pin Check soldering of IC111. Output Y : IC111-1pin Output C : IC111-7pin Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 48
Input Y : IC111-3pin Input C : IC111-5pin Check soldering of IC111. Output Y : IC111-1pin Output C : IC111-7pin Check cable between main unit and mon- itor or Check monitor . ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 49
Input Y : IC111-3pin Input C : IC111-5pin Check soldering of IC111. Output Y : IC111-1pin Output C : IC111-7pin Check cable between main unit and mon- itor or Check monitor . ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 50
2.5. VCR/DVR MONITOR OUT(S) Output NG VCR/DVR MONITOR OUT(S) Output NG. ※ When checking operation, select DVD for the function. Input Input Input CVBS COMPONENT No output No output VCR : M DVR : N AVR-4310CI/AVR-4310/AVC-4310...
Page 51
IC101-16pin : H(+5V) ing, or DIGITAL UNIT flaw. Output Y : IC101-20pin Output C : IC101-22pin Check soldering of IC101. Check cable between main unit and mon- itor or Check monitor . ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 52
Input C : IC101-6pin IC101-7pin : H(+5V) ing, or DIGITAL UNIT flaw. Output Y : IC101-29pin Output C : IC101-31pin Check soldering of IC101. Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 53
COMPONENT OUT Output NG. ※ When checking operation, select DVD for the function. (COMPONENT1 Input) Checking the video convert ON/OFF settings. Video convert ON Video convert OFF Input Input Input Input Input Input CVBS COMPONENT CVBS COMPONENT No output No output AVR-4310CI/AVR-4310/AVC-4310...
Page 54
IC504-7pin : H(5V) TAL UNIT flaw. Output Y : IC504-13pin Output Cb : IC504-11pin Output Cr : IC504-9pin Check soldering of IC504. Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 55
IC504-7pin : H(5V) TAL UNIT flaw. Output Y : IC504-13pin Output Cb : IC504-11pin Output Cr : IC504-9pin Check soldering of IC504. Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 56
TAL UNIT flaw. Output Y : IC504-13pin Output Cb : IC504-11pin Output Cr : IC504-9pin Check soldering of IC504. Check Output of cable between main unit and monitor or Check monitor . ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 57
IC504-7pin : H(5V) TAL UNIT flaw. Output Y : IC504-13pin Output Cb : IC504-11pin Output Cr : IC504-9pin Check soldering of IC504. Check cable between main unit and mon- itor or Check monitor. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 58
※ When checking operation, select DVD for the function. (COMPONENT1 Input) Checking the video convert ON/OFF settings. Video convert ON Video convert OFF Input Input Input Input Input Input Input Input CVBS COMPONENT HDMI CVBS COMPONENT HDMI No output To troubleshooting 3.HDMI/DVI. AVR-4310CI/AVR-4310/AVC-4310...
Page 59
Check input/output of AMP. Check soldering of IC115 and Input : IC115-5pin surrounding parts. Output : IC115-7pin Check output to 8U-310030 DIGITAL UNIT. Check soldering of CX111. Output V : CX111-1pin To troubleshooting 3.HDMI/DVI. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 60
Output Y : IC113-7pin Output C : IC114-7pin Check output to 8U-310030 DIGITAL UNIT. Check soldering of CX111. Output Y : CX111-9pin Output C : CX111-11pin To troubleshooting 3.HDMI/DVI. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 61
Check soldering of IC503 and surrounding parts. Check output to 8U-310030 DIGITAL UNIT. Output Y : CX111-7pin Check soldering of CX111. Output Cb : CX111-5pin Output Cr : CX111-3pin To troubleshooting 3.HDMI/DVI. ※ Unless specified, 8U-210063-1 A.VIDEO UNIT part. AVR-4310CI/AVR-4310/AVC-4310...
Page 62
Is the DVD player's HDMI referring to the DVD player's output setting correct? operating instructions. When using a DENON DVD player, is the fluorescent display tube's "HDMI" indicator lit? If using a non-DENON DVD player, proceed to "YES". Are the picture and sound...
Page 63
VIDEO out or Component out)? surrounding circuitry) The DVD player does not recognize connection with the set. When using a DENON DVD Is the HDMI connector (JK502/ The pattern and circuit from player, fluorescent JK503/JK401/JK402/JK403/ the HDMI connector (JK502/ display tube's "HDMI" indicator JK451) pin 19 "H"...
Page 64
YES Replace the Zener diode and the transistor short-circuited? diode. HZS6A-1 1SS133 Is other transistor trouble? Replace the transistor. Is other resistance trouble? Replace the resistance. Turn on power, check that voltage of the section is normal and that idling electric current is flowing. AVR-4310CI/AVR-4310/AVC-4310...
Page 65
8U-210063 CW132? with ucom board (8U-210064)? YES The ucom board (8U-210064) is repaired. Once more, checking the connection of the connector. When can specify the trouble of the channel and function, check the signal route where it corresponds. AVR-4310CI/AVR-4310/AVC-4310...
Page 66
The circuit from AC inlet to CX047 is defective. Is operation normal when the 8U-310030 circuit board is Can you connect with a different network module? replaced? 8U-310030 circuit 8U-210064 circuit The network module is defective. board is defective. board may be defective. AVR-4310CI/AVR-4310/AVC-4310...
Page 67
The circuitry from IC462 to JK981 on the 8U-210063-3 circuit board is defective. Front is not recognized The circuitry from IC701 on the 8U-210064 circuit board to Is theCW302 pin 24 output level "H"? CX302 is defective. The network module may be defective. AVR-4310CI/AVR-4310/AVC-4310...
Page 68
Are video signals output from CY061 pin 4 (Y) and pin 6 (C)? tive. Check the analog video circuit. If no sound is output Checking the set (AVR-4310CI):( Are S/PDIF signals output from CX304 pin 124? The network module is defective. Check the Digital audio circuit. AVR-4310CI/AVR-4310/AVC-4310...
Page 69
BLOCK DIAGRAMS (1/3) ANALOG AUDIO BLOCK DIAGRAM AVR-4310CI/AVR-4310/AVC-4310...
Page 70
BLOCK DIAGRAMS (2/3) DIGITAL AUDIO BLOCK DIAGRAM AVR-4310CI/AVR-4310/AVC-4310...
Page 71
BLOCK DIAGRAMS (3/3) VIDEO BLOCK DIAGRAM AVR-4310CI/AVR-4310/AVC-4310...
Page 72
LEVEL DIAGRAMS (1/6) AVR-4310CI/AVR-4310/AVC-4310 L E V E L D I A G R A M F R O N T c h AVR-4310CI/AVR-4310/AVC-4310...
Page 73
LEVEL DIAGRAMS (2/6) AVR-4310CI/AVR-4310/AVC-4310 L E V E L D I A G R A M C E N T E R c h AVR-4310CI/AVR-4310/AVC-4310...
Page 74
LEVEL DIAGRAMS (3/6) AVR-4310CI/AVR-4310/AVC-4310 L E V E L D I A G R A M S U B W O O F E R c h AVR-4310CI/AVR-4310/AVC-4310...
Page 75
LEVEL DIAGRAMS (4/6) AVR-4310CI/AVR-4310/AVC-4310 L E V E L D I A G R A M S U R R O U N D c h AVR-4310CI/AVR-4310/AVC-4310...
Page 76
LEVEL DIAGRAMS (5/6) AVR-4310CI/AVR-4310/AVC-4310 L E V E L D I A G R A M S U R R O U N D B A C K c h AVR-4310CI/AVR-4310/AVC-4310...
Page 77
LEVEL DIAGRAMS (6/6) AVR-4310CI/AVR-4310/AVC-4310 L E V E L D I A G R A M Z O N E 2 / 3 AVR-4310CI/AVR-4310/AVC-4310...
Page 79
1. Pin names in brackets [ ] represent a functional signal as a whole and should not be considered as two separate pins. 2. The position of pin number 1 varies by product. Refer to the index mark in attached “Package Dimensions”. AVR-4310CI/AVR-4310/AVC-4310...
Page 80
External memory access pin(NC) P55/HOLD/ HOLD/FRASH EPM M3VPu External memory access pin(NC,Pup)/Rewrite boot program start : L input set P54/HLDA HLDA External memory access pin(NC) P133 MUTE POWER/ For MUTE +B control pin/For extended ROM 3.3V control pin ROM POWER AVR-4310CI/AVR-4310/AVC-4310...
Page 82
M3VPu Button input2 136 P104/AN4/ KEY1 M3VPu Button input1 137 P103/AN3 SUB UPDATE SUB UPDATE mode control(DPMS/DENON WRITTER) (MAIN: L/ SIB:H) 138 P102/AN2 MIC DET/H/P DET/X2 SW3VPu MIC detect pin/Headphone/voltage-doubler detect pin/LIMIT PROT/LIMIT judge signal detect input (A/D detect )
Page 83
DIR CE4 DIR cotrol pin (LC89058W-VF4A) RESET SUBRESET SCPU3VPu Reset input XOUT Oscillator connection Oscillator connection +3.3V P85/NMI/(CEC) NMI/(CEC_IN) Fixed to H P84/INT2 CEC_IN SCPU3VPu CEC-D signal input pin E↓&L P83/INT1 ACK SIMO E↓&L MAIN-SUB μcom comm. control input pin AVR-4310CI/AVR-4310/AVC-4310...
Page 84
GUI ROM rewrite control (ACTIVE"L") P77/(CLK5) /TDO /PLDrewrite control (JTAG) P76/(TXD5) A PLD CS /TMS/ A PLD cotrol pin /PLD rewrite (JTAG)/DENON WRITTER/For MITSUBISHI rewrite distinction "D/M" (DW="L") A PLD DATA/TDI A PLD cotrol pin /PLDrewrite control (JTAG) A PLD CLK/MTCK...
Page 85
AVCC AD +3.3V P97/(SIN4) Tx EN AD8195 ENABLE pin for Front HDMI cotrol P96/(SOUT4) DSP1 FLAG0/ DSP1 cotrol pin (ADSP-21367-333)/FPGA SUBCONF_DONE rewrite control (MAIN FPGA & GUI FPGAcombined use) 100 P95/(CLK4) VEXP DIN VIDEO expander control DATA output (BU4094BCFV) AVR-4310CI/AVR-4310/AVC-4310...
Page 93
SBCK cloc k output ter minal (32fs , 64fs , 128fs) SLRCK SLRCK cloc k output ter minal (fs/2, fs , 2fs) SDIN Ser ial audio data input ter minal DGND Digital GND DVDD Digital power XMCK Osc. amp output ter minal AVR-4310CI/AVR-4310/AVC-4310...
Page 94
Ser ial audio data input f or modulation/Gener al I/O in/output ter minal TXO/PIOEN Modulation data output/ Gener al I/O enab le input ter minal * For latch-up countermeasure, perform each power supply ON/OFF in the same timing. BU9450KV-E2 (DI : IC106) Lot No. 1PIN AVR-4310CI/AVR-4310/AVC-4310...
Page 95
BU9450KV-E2 Terminal Function AVR-4310CI/AVR-4310/AVC-4310...
Page 97
V SSA1 32, 33 C-bus V SSA2 control 1, 20, 22, 5, 18, 38 6, 17, 39 23, 26, 29 MBH787 res. RTCI V SSD1, V DDD1, V SSD2 , V DDD2 , V SSD3 V DDD3 AVR-4310CI/AVR-4310/AVC-4310...
Page 106
Chip select data input Input/Output Parallel data input/output — Power supply — Functional Block Diagram Chip-select C Bus transceiver Shift register Output data Input/output I/O setting Input data Output data data latch latch latch Input data Power-on I/O port reset AVR-4310CI/AVR-4310/AVC-4310...
Page 127
Indicates number of zeros after efective number. (0 or 1) (More than 2) 2-digit effective number. 2-digit effective number. ・ Units:pF ・ Units:pF ・ When the dielectric strength is indicated in AC,"AC" is included after the dieelectric strength value. AVR-4310CI/AVR-4310/AVC-4310...
Page 165
E2 model E2/E1C model EU, EC model A-15 A-11 E1C model E2 model A-14 C-11 C-10 C-3〜7 C-1・2 A-16 B-17 A-10 A-20 A-19 WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. AVR-4310CI/AVR-4310/AVC-4310...
Page 167
SPEAKER UNIT AMP UNIT P.AMP JOINT UNIT CONNECT UNIT-2 A.AUDIO/VIDEO UNIT A.VIDEO UNIT AUDIO UNIT FRONT USB UNIT FRONT HDMI UNIT HD RADIO CON. UNIT EU, EC MAIN CPU UNIT 8U-310030 DIGITAL UNIT EU, EC 8U-310030A DIGITAL UNIT E1C, E2 AVR-4310CI/AVR-4310/AVC-4310...
Page 168
DOOR SPE2 415410015058D DOOR 00D4010195202 HINGE (L) 00D4010195231 HINGE (L) 00D4010196201 HINGE (R) 00D4010196230 HINGE (R) EARTH PLATE(DOOR) 00D1310169038 DENON BADGE 00D1310169041 DENON BADGE 412010016001D KNOB(F) ASSY 412010016018D KNOB(F) ASSY 00D1140203009 KNOB RING(F) 00D1140203025 KNOB RING(F) 412010017004D KNOB(M) ASSY 412010017011D...
Page 174
NOTICE: ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASURED AT NO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. AVR-4310CI/AVR-4310/AVC-4310...
Page 175
SCHEMATIC DIAGRAMS (1/37) 8U-110047-1 FLD UNIT 8U-110047-2 TACT-1 UNIT 8U-110047-3 TACT-2 UNIT 8U-110047-4 VOLUME UNIT 8U-110047-5 VOL CONNECT UNIT 8U-110047-8 P.SW UNIT 8U-110047-6 FUNC UNIT 8U-110047-17 TACT-3 UNIT 8U-110047-7 FUNC CONNECT UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 176
SCHEMATIC DIAGRAMS (2/37) 8U-110047-9 MIC UNIT 8U-110047-10 FRONT IN UNIT 8U-110047-16 FFC LOCK UNIT 8U-110047-18 BKT1 UNIT 8U-110047-19 BKT2 UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 177
SCHEMATIC DIAGRAMS (3/37) 8U-110047-14 AUDIO CONNECT UNIT 8U-110047-15 REG CONNECT-1 UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 178
SCHEMATIC DIAGRAMS (4/37) 8U-110048-5 REMOTE/IPOD UNIT 8U-110048-6 232C UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 179
SCHEMATIC DIAGRAMS (5/37) 8U-110048-1 STBY POWER UNIT 8U-110048-2 DIGITAL POWER UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 180
SCHEMATIC DIAGRAMS (6/37) 8U-110048-4 REG UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 181
SCHEMATIC DIAGRAMS (7/37) 8U-110049-1 FL AMP UNIT 8U-110049-2 FR AMP UNIT 8U-110049-3 C AMP UNIT 8U-110049-4 SL AMP UNIT 8U-110049-5 SR AMP UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 182
SCHEMATIC DIAGRAMS (8/37) 8U-110049-6 SBL AMP UNIT 8U-110049-7 SBR AMP UNIT 8U-110049-8 FFC HOLD UNIT 8U-110049-9 CD IN UNIT 8U-110049-10 REG CONNECT-2 UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 183
SCHEMATIC DIAGRAMS (9/37) 8U-110049-11 DAC MUTE UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 184
SCHEMATIC DIAGRAMS (10/37) 8U-110050-1 POWER AMP UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 185
SCHEMATIC DIAGRAMS (11/37) 8U-110050-2 AMP CONNECT UNIT 8U-110050-4 REG CONNECT-3 UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 186
S-Video-Y SIGNAL LINE VIDEO SIGNAL LINE SCHEMATIC DIAGRAMS (12/37) 8U-210063-1 A.VIDEO UNIT (1/3) AVR-4310CI/AVR-4310/AVC-4310...
Page 187
COMPONENT-Y SIGNAL LINE S-Video-Y SIGNAL LINE VIDEO SIGNAL LINE SCHEMATIC DIAGRAMS (13/37) 8U-210063-1 A.VIDEO UNIT (2/3) AVR-4310CI/AVR-4310/AVC-4310...
Page 188
COMPONENT-Y SIGNAL LINE SCHEMATIC DIAGRAMS (14/37) 8U-210063-1 A.VIDEO UNIT (3/3) AVR-4310CI/AVR-4310/AVC-4310...
Page 189
SCHEMATIC DIAGRAMS (15/37) 8U-210063-3 FRONT USB UNIT 8U-210063-4 FRONT HDMI UNIT 8U-210063-5 HD-RADIO CONNECT UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 190
SCHEMATIC DIAGRAMS (16/37) 8U-210063-2 A.AUDIO UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 191
SCHEMATIC DIAGRAMS (17/37) 8U-210063-2 A.AUDIO UNIT AVR-4310CI/AVR-4310/AVC-4310...
Page 192
SCHEMATIC DIAGRAMS (18/37) 8U-210064 MAIN CPU UNIT (1/3) CPU CONNECT AVR-4310CI/AVR-4310/AVC-4310...
Page 193
SCHEMATIC DIAGRAMS (19/37) 8U-210064 MAIN CPU UNIT (2/3) CPU LEVEL CHG AVR-4310CI/AVR-4310/AVC-4310...
Page 194
SCHEMATIC DIAGRAMS (20/37) 8U-210064 MAIN CPU UNIT (3/3) AVR-4310CI/AVR-4310/AVC-4310...
Page 195
AD SIGNAL LINE Digital Audio SIGNAL LINE SCHEMATIC DIAGRAMS (21/37) 8U-310030 DIGITAL UNIT (1/17) DIR/ XM/ DLINK AVR-4310CI/AVR-4310/AVC-4310...
Page 196
Digital Audio SIGNAL LINE SCHEMATIC DIAGRAMS (22/37) 8U-310030 DIGITAL UNIT (2/17) AUDIO PLD AVR-4310CI/AVR-4310/AVC-4310...
Page 197
Digital Audio SIGNAL LINE SCHEMATIC DIAGRAMS (23/37) 8U-310030 DIGITAL UNIT (3/17) DSP1 AVR-4310CI/AVR-4310/AVC-4310...
Page 198
Digital Audio SIGNAL LINE SCHEMATIC DIAGRAMS (24/37) 8U-310030 DIGITAL UNIT (4/17) DSP2 AVR-4310CI/AVR-4310/AVC-4310...
Page 199
AD SIGNAL LINE Digital Audio SIGNAL LINE SCHEMATIC DIAGRAMS (25/37) 8U-310030 DIGITAL UNIT (5/17) MAIN DAC AVR-4310CI/AVR-4310/AVC-4310...
Page 200
SCHEMATIC DIAGRAMS (26/37) 8U-310030 DIGITAL UNIT (6/17) ZONE DAC AVR-4310CI/AVR-4310/AVC-4310...
Page 201
SCHEMATIC DIAGRAMS (27/37) 8U-310030 DIGITAL UNIT (7/17) ETHERNET USB SECTION AVR-4310CI/AVR-4310/AVC-4310...
Page 202
HDMI/TMDS SIGNAL LINE SCHEMATIC DIAGRAMS (28/37) 8U-310030 DIGITAL UNIT (8/17) HDMI IN SECTION (1/2) AVR-4310CI/AVR-4310/AVC-4310...
Page 203
SCHEMATIC DIAGRAMS (29/37) 8U-310030 DIGITAL UNIT (9/17) HDMI IN SECTION (2/2) COMPONENT-Y SIGNAL LINE HDMI/TMDS SIGNAL LINE S-Video-Y SIGNAL LINE AVR-4310CI/AVR-4310/AVC-4310 Digital Video SIGNAL LINE VIDEO SIGNAL LINE...
Page 204
Digital Video SIGNAL LINE SCHEMATIC DIAGRAMS (30/37) 8U-310030 DIGITAL UNIT (10/17) GUI SECTION AVR-4310CI/AVR-4310/AVC-4310...
Page 205
Digital Video SIGNAL LINE SCHEMATIC DIAGRAMS (31/37) 8U-310030 DIGITAL UNIT (11/17) HDMI TX BUFFER PLD AVR-4310CI/AVR-4310/AVC-4310...
Page 206
SCHEMATIC DIAGRAMS (32/37) 8U-310030 DIGITAL UNIT (12/17) HDMI OUT HDMI/TMDS SIGNAL LINE Digital Video SIGNAL LINE AVR-4310CI/AVR-4310/AVC-4310...
Page 207
Digital Video SIGNAL LINE COMPONENT-Y SIGNAL LINE S-Video-Y SIGNAL LINE SCHEMATIC DIAGRAMS (33/37) 8U-310030 DIGITAL UNIT (13/17) V.CONVERT SECTION AVR-4310CI/AVR-4310/AVC-4310...
Page 208
SCHEMATIC DIAGRAMS (34/37) 8U-310030 DIGITAL UNIT (14/17) I/P SECTION (1/2) Digital Video SIGNAL LINE AVR-4310CI/AVR-4310/AVC-4310...
Page 209
SCHEMATIC DIAGRAMS (35/37) 8U-310030 DIGITAL UNIT (15/17) I/P SECTION (2/2) AVR-4310CI/AVR-4310/AVC-4310...
Page 210
SCHEMATIC DIAGRAMS (36/37) 8U-310030 DIGITAL UNIT (16/17) SUB CPU SECTION AVR-4310CI/AVR-4310/AVC-4310...
Page 211
AD SIGNAL LINE Digital Audio SIGNAL LINE COMPONENT-Y SIGNAL LINE S-Video-Y SIGNAL LINE VIDEO SIGNAL LINE SCHEMATIC DIAGRAMS (37/37) 8U-310030 DIGITAL UNIT (17/17) AVR-4310CI/AVR-4310/AVC-4310...
