StarTech.com 2POSTRACK42 Instruction Manual

Instruction manual

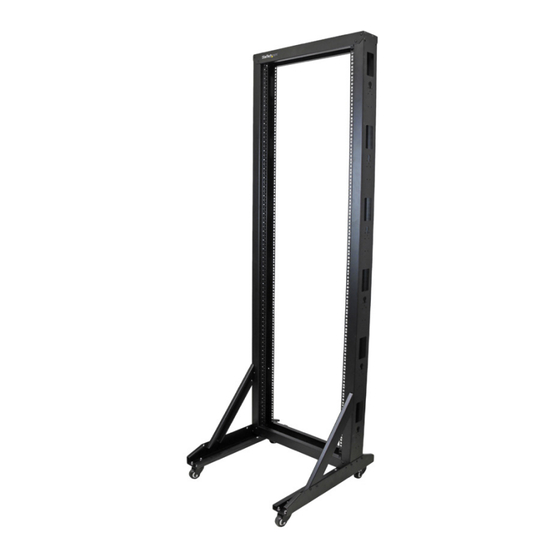

2-post server rack - 42U
2POSTRACK42
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

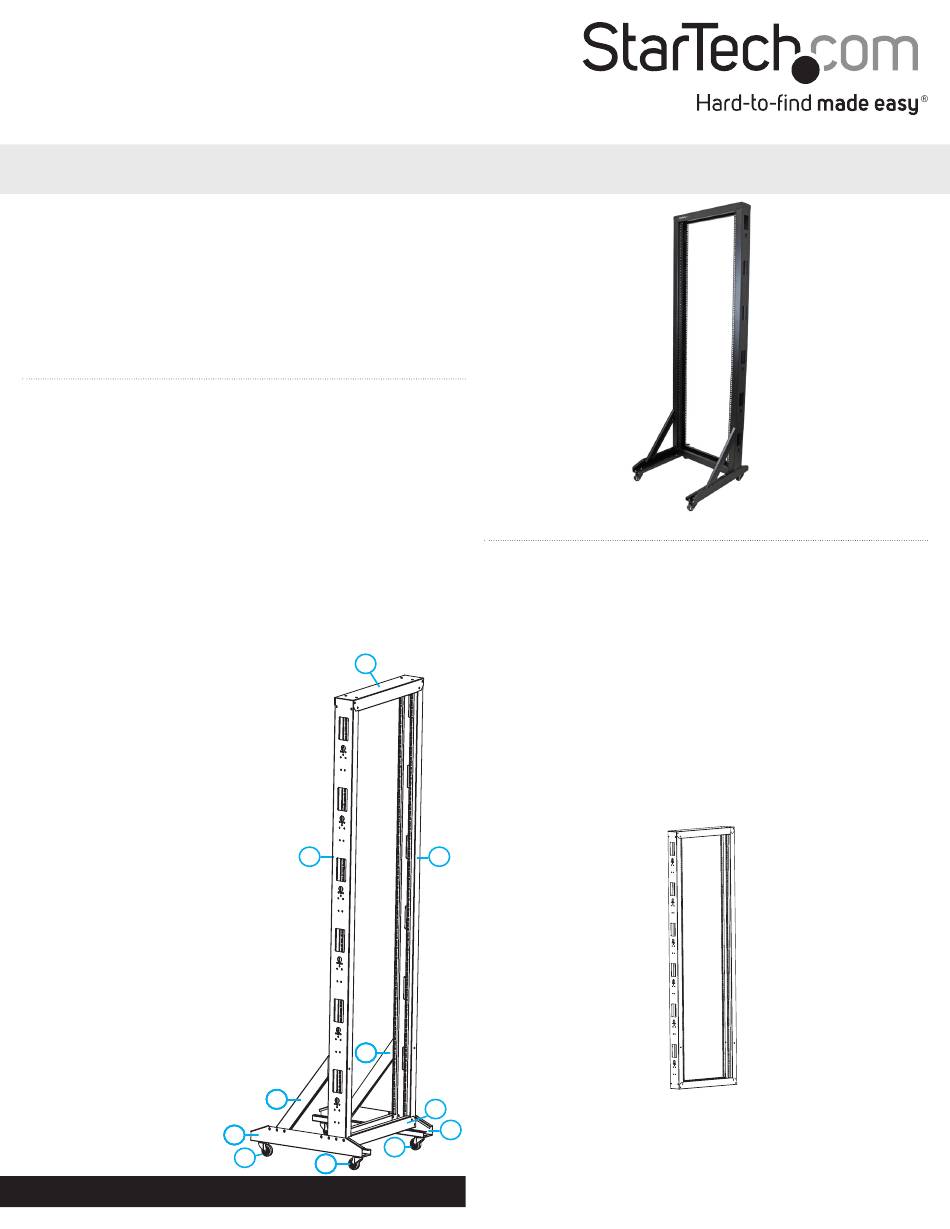

Packaging contents
• 2 x bottom support beams (A)
• 2 x vertical rails (B)
• 2 x horizontal rails (C)
• 2 x angled support beams (D)
• 2 x 2 in. heavy-duty casters (E)
• 2 x 2 in. heavy-duty locking casters (F)
• 30 x M6 screws
• 26 x M6 nuts
• 16 x M6 caster screws
• 32 x M6 cage nuts
• 32 x M6 rack screws
• 20 x M6 assembly nuts
• 30 x M6 assembly screws
• 32 x plastic washers
• 1 x hey key 4 mm
• 1 x instruction manual
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/2POSTRACK42.
C
B
D
D
A
F
E
F
Assemble the rack
Make sure that you have all of the packaging contents before you
begin to assemble the server rack.
Warning! To prevent bodily injury, make sure that the rack is
installed in a structurally sound environment with a level floor,
and that all of the hardware is assembled securely and checked for
stability before you load the equipment.
Assemble the frame
1. Lay the two vertical rails (B) lengthwise on the ground.
2. Place one of the horizontal rails (C) over the two ends of the
vertical rails (B).
3. Place the second horizontal rail (C) over the other two ends of the
vertical rail (B), forming a rectangle.
B
4. When the pieces are aligned, the holes should match up with
C
each other. Use the Allen key to fasten each corner with the
A
provided M6 screws and nuts.
Tip: Wait until all of the screws and nuts are inserted into the frame
before you tighten them.
*actual product may vary from photos
Manual Revision: 05/18/2018
