StarTech.com 1B-WALL-MOUNT-SHELF Quick Start Manual

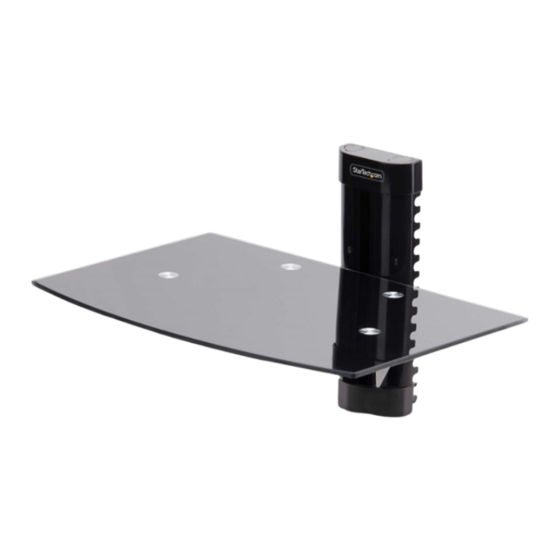

Wall-Mount Floating Shelf for A/V Accessories
Product IDs
1B-WALL-MOUNT-SHELF / 2B-WALL-MOUNT-SHELF
2
1
Component
• Place A/V Accessories or other media equipment

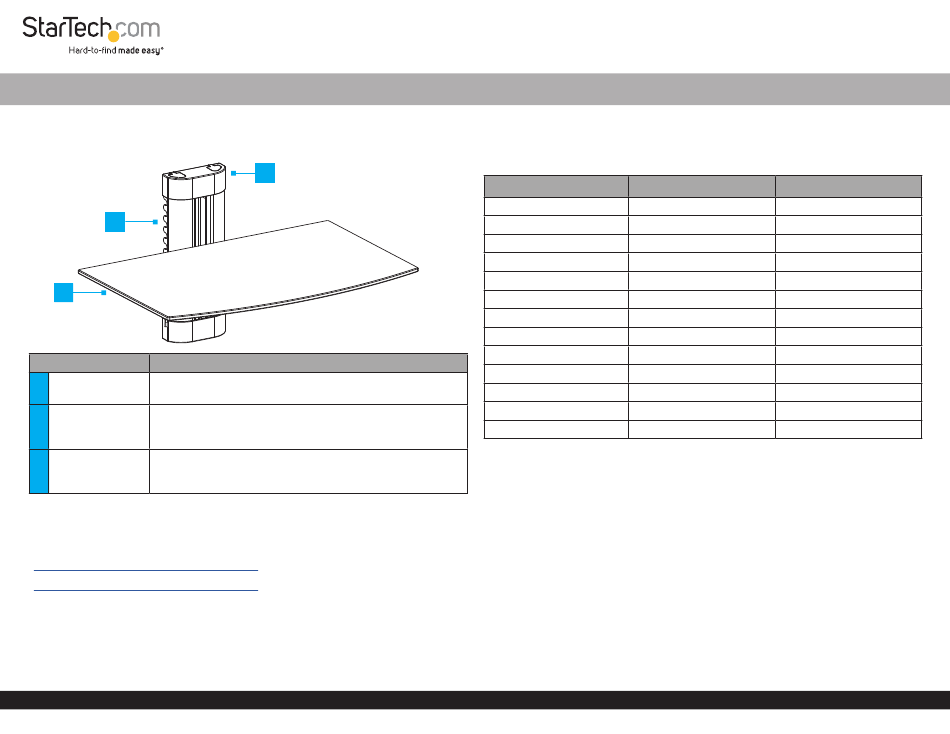

1 Glass Shelf
• Allows Height Adjustment along the Wall Bracket
• Decorative panels with Grooves to help with cable
2 management
Side Covers
• Attach directly onto the Wall Bracket
• Placed at the Top and Bottom of the Side Covers
3
End Caps • Small Tabs can be broken-off to pass-trough cables for the
mounted equipment
Product Information
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit:
www.StarTech.com/1B-WALL-MOUNT-SHELF
www.StarTech.com/2B-WALL-MOUNT-SHELF
Requirements
• Phillips Head Screwdriver
• Electric Drill and 5/32in [4mm] or 5/16in [8mm] Drill Bits (Optional)
• Electronic Stud Finder (Optional)
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
*1B-WALL-MOUNT-SHELF shown. Product may vary from image
Function
• Spirit/Bubble Level (Optional)
• Pencil (Optional)
Package Contents
Product ID 1B-WALL-MOUNT-SHELF
Glass Shelf (A)
Support Brackets (B)
Wall Bracket (C)
Side Covers (D)
M4x6mm Screws (E)
M5x14mm Screws (F)
M6x8mm Screws (G)
Wall Mounting Screws (H)
Wall Anchors (I)
Endcaps (J)
Mounting Plate, Large (K)
Mounting Plate, Small (L)
Quick-Start Guide
Warnings!
• StarTech.com Ltd. is not responsible for any property damage and/or personal injury
resulting from the installation procedures outlined in this technical document.
• Read the entire manual and ensure the instructions are fully understood before
assembling and/or using this product.
• This product is designed to be installed on wooden studded, solid concrete, or
cinder block walls only.
• Before adding equipment to this product, ensure this product has been properly
mounted.
• Never operate this product if parts are missing or damaged.
• The mounting hardware included with this product might not be adequate for some
wall structures. If lacking the necessary expertise to wall mount this product, contact
a construction professional to install the wall mount or to provide specific mounting
instructions for the wall structure.
• Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
Quick-Start Guide
2B-WALL-MOUNT-SHELF
1 2
1 2
1 1
2 4
2 4
2 4
4 8
3 4
3 4
2 2
1 2
1 2
1 1
Manual Revision: May 16, 2024 9:53 AM
