ASSEMBLY

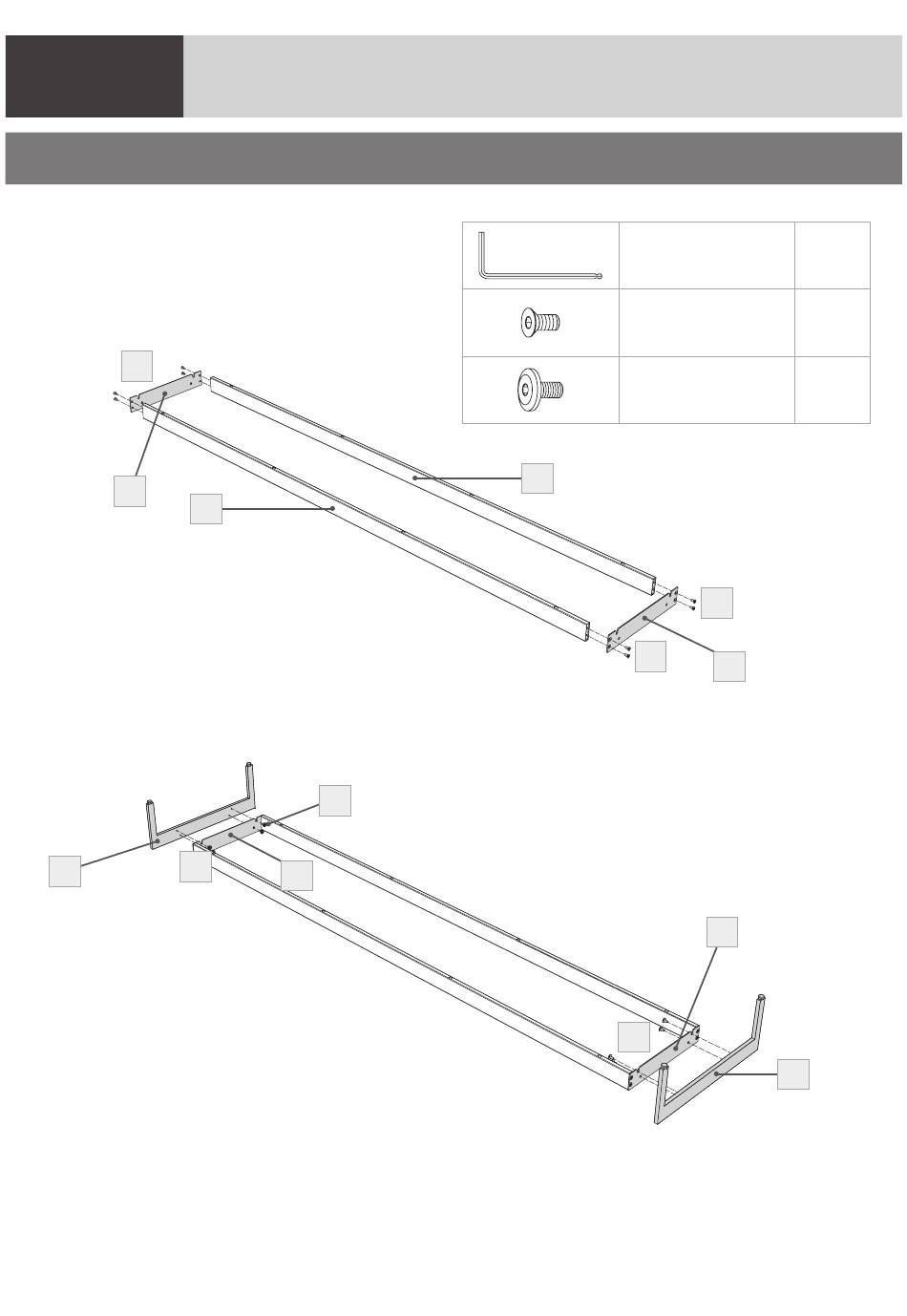

To assemble the Console Base, lay the Spanners
(C7) on a soft, non-marring surface, like carpet.
Attach the Connection Plate (C8) to the
Spanners (C7) using 8 Screws (H5) and tighten
with Hex Wrench (T2).
H5
C8
C7
Attach the Legs (C9) to the Connection Plate (C8) using 8 Screws (H4) and tighten with Hex
Wrench (T2).
H4
C9
6 | BDIUSA.COM
STEP 1. ASSEMBLE BASE & ATTACH BASE TO CABINET
CONSOLE BASE
H4
C8
HEX WRENCH – T2
SCREW – H5
SCREW – H4
C7
H5
H4
ELEMENTS 8703 & 8709

QTY

1
QTY
8
QTY
8
H5
C8
C8
C9
