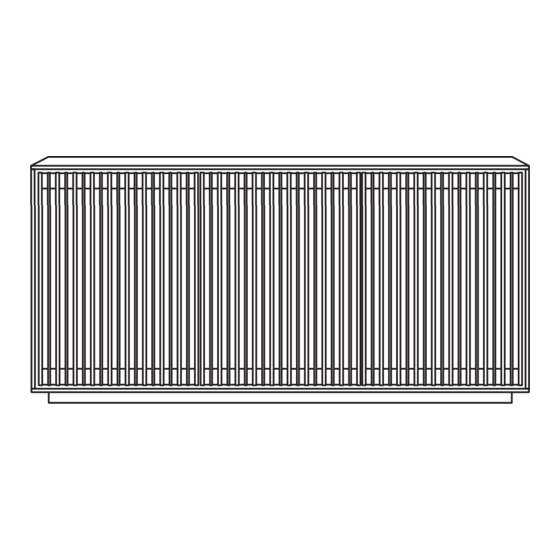

- Page 1 PROFILE 8477 & 8479 ™ MEDIA & STORAGE INSTRUCTION MANUAL LET’S GET STARTED. 8477 8479 DESIGN MATTHEW WEATHERLY...
- Page 2 Congratulations on the purchase of your Profile cabinet from BDI. Your cabinet has been designed to provide a lifetime of enjoyment. This manual will provide assembly instructions and other helpful information to ensure you get the most out of your product.
- Page 3 Unpack and id entify the parts listed below. The assembly workspace should be a non-marring surface, such as carpet. For missing hard ware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. For all other concerns, please contact your BDI retailer.
- Page 4 Place a level (not included) on top of the cabinet and use the supplied 4mm Hex Key Wrench (T2) to adjust the levelers from within the cabinet. Start with the outer-most levelers until the cabinet is level, then adjust the center front and rear levelers. (8479 shown) 4 | BDIUSA.COM PROFILE 8477 & 8479...
- Page 5 ASSEMBLY STEP 2. INSTALL GLASS SHELF Thread the Adjustable Shelf Pins (H1) at the 8477: 18 desired height. Install the Glass Shelves (C2/C3) SHELF PIN – H1 8479: 13 by tilting the shelf to clear the opening. Carefully rest into position. In some positions it may be necessary to screw in two shelf pins into one side, rest one side of the shelf on those shelf pins while supporting the other side of the shelf and screwing in the remaining shelf pins.
-
Page 6: Fine Tuning
Door C & Door D here Door C Loosening Screw 1 on this hinge will close the seam between Door C & Door D here Door A Door B Door C Door D 6 | BDIUSA.COM PROFILE 8477 & 8479... -
Page 7: Care And Maintenance
While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please avoid positioning your BDI cabinet in any area with ample direct sunlight. -
Page 8: Warranty
Select chairs carry coverage for five (5) years from the date of the product delivery, based on an 8-hour daily use pattern. BDI reserves the right to refine or update its warranty from time to time. See the complete and latest warranty document at www.bdiusa.com/warranty.
