Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to
your BDI products. Register today, and you will be entered to win
free a BINK table from BDI: www.bdiusa.com/register
Placement and Maintenance
Your Elements Media Cabinet is designed for indoor use on level
floors. Clean wood veneer and steel parts with a moist cloth.
Elements is engineered for easy assembly. Carefully follow this
procedure to prevent any damage. Do not use power tools for
assembly of this product.
Your Elements cabinet includes an air-purifier pouch containing chemical-free, non-toxic, activated carbon.
This pouch is designed to absorb and remove traces of odor which may remain as a result of the unique
manufacturing processes used to create Elements. While any such odor will naturally dissipate over a period
of time, the pouch is provided to accelerate the effect. Please feel free to utilize the pouch inside the cabinet
indefinitely or transfer it to any other area in the home where you wish to manage moisture and odors. If you
choose to use it elsewhere (shoe racks, closets, basements, etc.), please be aware that the pouch can be
"re-charged" by placing in direct sunlight for 1-2 hrs after 2-3 months of continuous usage.
Step 1
Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as
carpet. For missing hardware pieces, contact BDI Customer Service at: customerservice@bdiusa.com.
For all other concerns, please contact your BDI retailer.
Note: Door
pattern may
be different
A4 Right
Leg x 1
A2 Base Rails x 2
Designed by BDI Studio.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Elements & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2016, BDI
Made in China. 03.27.2017 7 V2

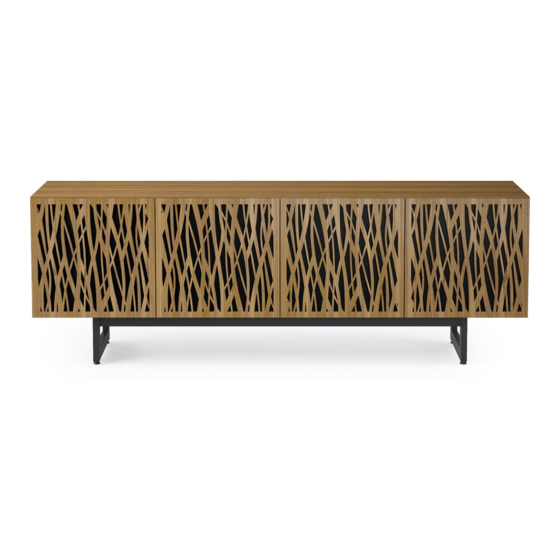

ELEMENTS
™
3 BAY MEDIA CABINET
ELEMENTS
™
4 BAY MEDIA CABINET
8777__ME__
8779__ME__
bdiusa.com
customerservice@bdiusa.com
T1 Phillips Screwdriver x 1
T2 Hex Wrench x 1
H1 1/4-20 x 15 mm
Machine Screw x 16
H2 1/4-20 x 63 mm
Machine Screw x 6
C5 Back Panels x 2
A1 Cabinet x 1
[quad (shown)
or triple wide]
C3 Middle Shelf x 1
C4 Side Shelf x 2
A3 Left Leg x 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BDI ELEMENTS
Summary of Contents for BDI ELEMENTS
- Page 1 This pouch is designed to absorb and remove traces of odor which may remain as a result of the unique manufacturing processes used to create Elements. While any such odor will naturally dissipate over a period of time, the pouch is provided to accelerate the effect. Please feel free to utilize the pouch inside the cabinet indefinitely or transfer it to any other area in the home where you wish to manage moisture and odors.
- Page 2 Caution-do not remove blocking above the shelves. Attach the base to the cabinet with 8 Screws H1 and 6 Screws H2 using Hex Wrench T2. Do NOT fully tighten until all screws are started. 2 Person Task H2 x 6 H1x 8 bdiusa.com ELEMENTS 8777/8779__ME__ customerservice@bdiusa.com MEDIA CABINET...
- Page 3 Step 4 Quad Only - Adjustable Shelves With help from another person, carefully rotate your Elements Media Cabinet onto its feet. The shelf pins located inside all three cabinet spaces may be repositioned using Screwdriver T1, allowing you to raise or lower Middle and Side Shelves C3 and C4 to the desired level.
- Page 4 To re-install, put the top edge of the back panel into the top groove, then drop the bottom edge into the bottom groove. Your Elements Media Cabinet comes with 2 KLEET Cord Wraps H4. Remove the adhesive backing and adhere the Cord Wraps onto the back as shown (or where desired).
- Page 5 European hinges on each door. Because these hinges are adjustable, adjusting one hinge element can sometimes cause the need for adjustments to other elements. But with a few adjustments, you can modify the orientation of the cabinet doors to make sure that they hang perfectly within your cabinet.
