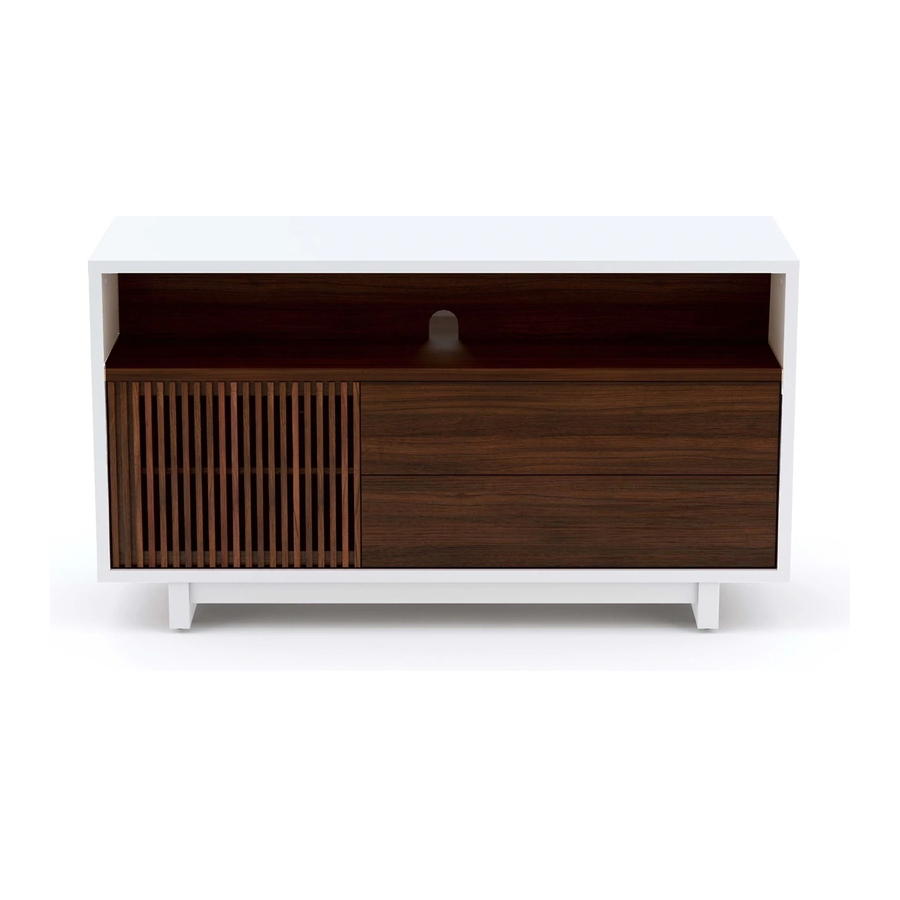

vertica

8556

home theater

Component List

These distinctive product configurations are protected by US and international patents,

trade dress, and/or copyright laws.

BDI are trademarks of Becker Designed, Inc.

Made in China. 8556REV100815v3

Vertica is engineered for easy assembly. Carefully

follow this procedure to prevent any damage.

A - Phillips Screwdriver

x 1

Placement and Maintenance

Vertica is designed for indoor use on level floors.

B1 - Hex Wrench

Clean wood veneer with a moist cloth.

x 1

B2 - Leveler Wrench

Step 1

x 1

Unpack and Identify

Unpack and identify the components at left. Note

that some components are shipped inside the

cabinet. The assembly workspace should be a non-

C - Cabinet x 1

marring surface such as carpet. For missing hardware pieces, please

contact BDI Customer Service at customerservice@bdiusa.com. For all

other concerns, please contact your BDI Retailer.

D - Cam Bolt x 2

E - Cam Fitting x 2

F - Wood Dowel x 2

Step 2

G - Side Legs x 2

Install and tighten Cam Bolts (D) into Side Legs (G) using Phillips

Screwdriver (A). Insert Wood Dowels (F) into corresponding holes of

Side Legs (G).

H - Base Stretcher

x 1

I - Center Leg x 1

J - 1/4-20 x 60 mm

Machine Screw

x 3

K - 1/4-20 x 100 mm

Machine Screw

x 6

L - Adjustable Shelf

x 1

M - Back Panel

x 1

a s s e m b l y i n s t r u c t i o n s

bdiusa.com

customerservice@bdiusa.com

TWO PERSON ASSEMBLY

Need help?

Do you have a question about the vertica and is the answer not in the manual?

Questions and answers

Summary of Contents for BDI vertica

Page 1 Vertica is engineered for easy assembly. Carefully follow this procedure to prevent any damage. A - Phillips Screwdriver Placement and Maintenance Vertica is designed for indoor use on level floors. B1 - Hex Wrench Clean wood veneer with a moist cloth. B2 - Leveler Wrench...
Page 2 Align Cam Bolt (D) and Wood Dowel (F) of Side Legs (G) into their respective holes in Base Stretcher (H). vertica a s s e m b l y i n s t r u c t i o n s bdiusa.com...
Page 3 Cabinet (C) with Screws (K). Fully tighten Base Stretcher (H) screws that were left loose in Step 3 using Hex Wrench (B1). K x 6 vertica a s s e m b l y i n s t r u c t i o n s bdiusa.com 8556 customerservice@bdiusa.com...
Page 4 Adjustable Shelf (L) to the desired level. vertica a s s e m b l y i n s t r u c t i o n s bdiusa.com 8556 customerservice@bdiusa.com...
Page 5 Drawer Position Options Two (2) adjustment mechanisms are found on Front-to-Back Adjustment: Turn Black Wheel on one underside of each Vertica drawer, at left and or both mechanisms, as necessary, to adjust drawer at right. All drawer position adjustments position in or out.
Page 6 These steps are to be followed after you have unpacked and completed the simple assembly instructions for your Vertica AV cabinet. Due to jostling in freight or perhaps an uneven floor, the door on your Vertica cabinet may not appear to be in perfect alignment. Making a few minor adjustments can rectify this situation. Be aware that depending on your situation, patience and a bit of trial and error are required.
Page 7 But with a few adjustments, you can modify the orientation of the door to make sure that it is aligned within your cabinet. Use the supplied Phillips Screwdriver (A) to adjust Vertica's door hinges: • By adjusting Screw 1, the door will move LEFT or RIGHT within the frame.
