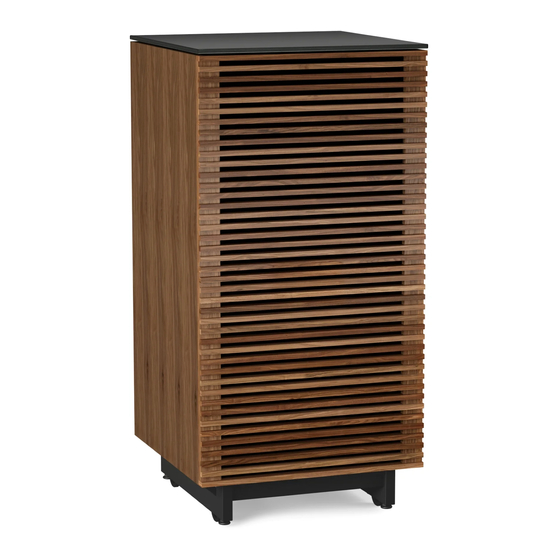

- Page 1 CORRIDOR® 8172 AUDIO TOWER INSTRUCTION MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...
- Page 3 Congratulations on the purchase of your Corridor Audio Tower 8172 from BDI. Your cabinet has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information that will ensure that you get the most out of your cabinet.
- Page 4 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. Do not use power tools for assembly of this product.
- Page 5 HARDWARE AND COMPONENTS PART # PART # DESCRIPTION DESCRIPTION Glass Top Rubber Bumper QUANTITY QUANTITY PART # PART # DESCRIPTION Large Adjustable Shelf DESCRIPTION Small Adjustable Shelf QUANTITY QUANTITY PART # PART # DESCRIPTION DESCRIPTION Back Panel LP Storage Bars QUANTITY QUANTITY NEED ASSISTANCE? customerservice@bdiusa.com...
- Page 6 For your convenience, wheel assembly is pre-installed. Wheels can be removed if desired. Removal of wheels (optional): Reinstall Leveler to Detach Wheel Assembly from (E & F) Metal Legs. (E & F) Metal Legs by removing the Leveler and Screw. 6 | BDIUSA.COM CORRIDOR 8172...
-
Page 7: Step 2. Attach The Base
STEP 2. ATTACH THE BASE ASSEMBLY (C) Cabinet Carefully lay on its back. Prop PART/DESCRIPTION up the bottom edge with a book. Using (B1) Hex Wrench , attach the base assembly to (C) Cabinet (D) Screws the bottom of the with B1-HEX WRENCH (M) Screw... - Page 8 Install (K) Back Panel to the backside of the (C) Cabinet by inserting top edge in upper channel then tipping bottom edge forward and into lower channel. Note: Velcro straps are included for your convenience to facilitate wire management. 8 | BDIUSA.COM CORRIDOR 8172...
-
Page 9: Adjustable Shelves
FINE TUNING ADJUSTABLE SHELVES If desired, lift (I) Adjustable Shelf away, loosen & remove related Shelf Support Pins, reinstall the Shelf Support Pins at desired height, then reinstall (I) Adjustable Shelf. LP RECORD STORAGE FINE TUNING This cabinet is designed to store LP Records by placing (L) LP Storage Bars into designated holes in bottom of (C) Cabinet. - Page 10 1 wood screw into one of the front holes on each hinge plate to keep the door from shifting downward (optional). 1 Wood Screw 2 Machine Screws CDs here Door Catch Hinge Plate Hinge Plate 10 | BDIUSA.COM CORRIDOR 8172...
-
Page 11: Door Alignment
FINE TUNING LEVEL CABINET Levelers are integrated into each leg assembly PART/DESCRIPTION and are accessed at the bottom of each cabinet leg using the (B2) Open Mouth Wrench. If your B2-OPEN MOUTH floor is uneven, you may extend one or more WRENCH levelers to attain a level, stable cabinet placement. - Page 12 By adjusting Screw 2 the entire door will move IN or OUT, opening or closing the gap between the door frame and cabinet. (This screw rarely needs adjustment.) 12 | BDIUSA.COM CORRIDOR 8172...
-
Page 13: Door Adjustments
FINE TUNING DOOR ADJUSTMENTS If your door is not straight, the door can be PART/DESCRIPTION straightened by adjusting the depth of the set screw found in the middle of the 2 metal bars on B3-SMALL HEX the back of the door. WRENCH Use the (B3) Small Hex Wrench to adjust:... -
Page 14: Care And Maintenance
While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please take care to avoid positioning your BDI cabinet in any area with extensive direct sunlight. -
Page 15: Warranty
WARRANTY BDI warrants to the original purchaser that for the below stated warranty term, BDI will repair or replace any product, part, or component covered by this warranty which fails under normal use as a result of a defect in material or workmanship. BDI will repair or replace the aforementioned product, part or component with a comparable product, part or component. - Page 16 These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2020, BDI | V.08.24.2020 Made in China.
