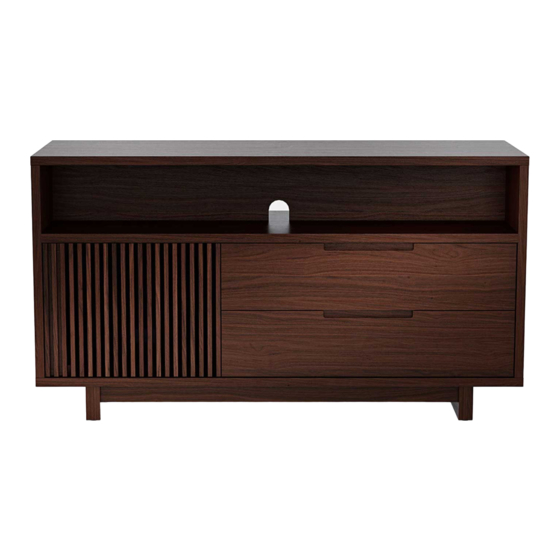

vertica
8556
home theater

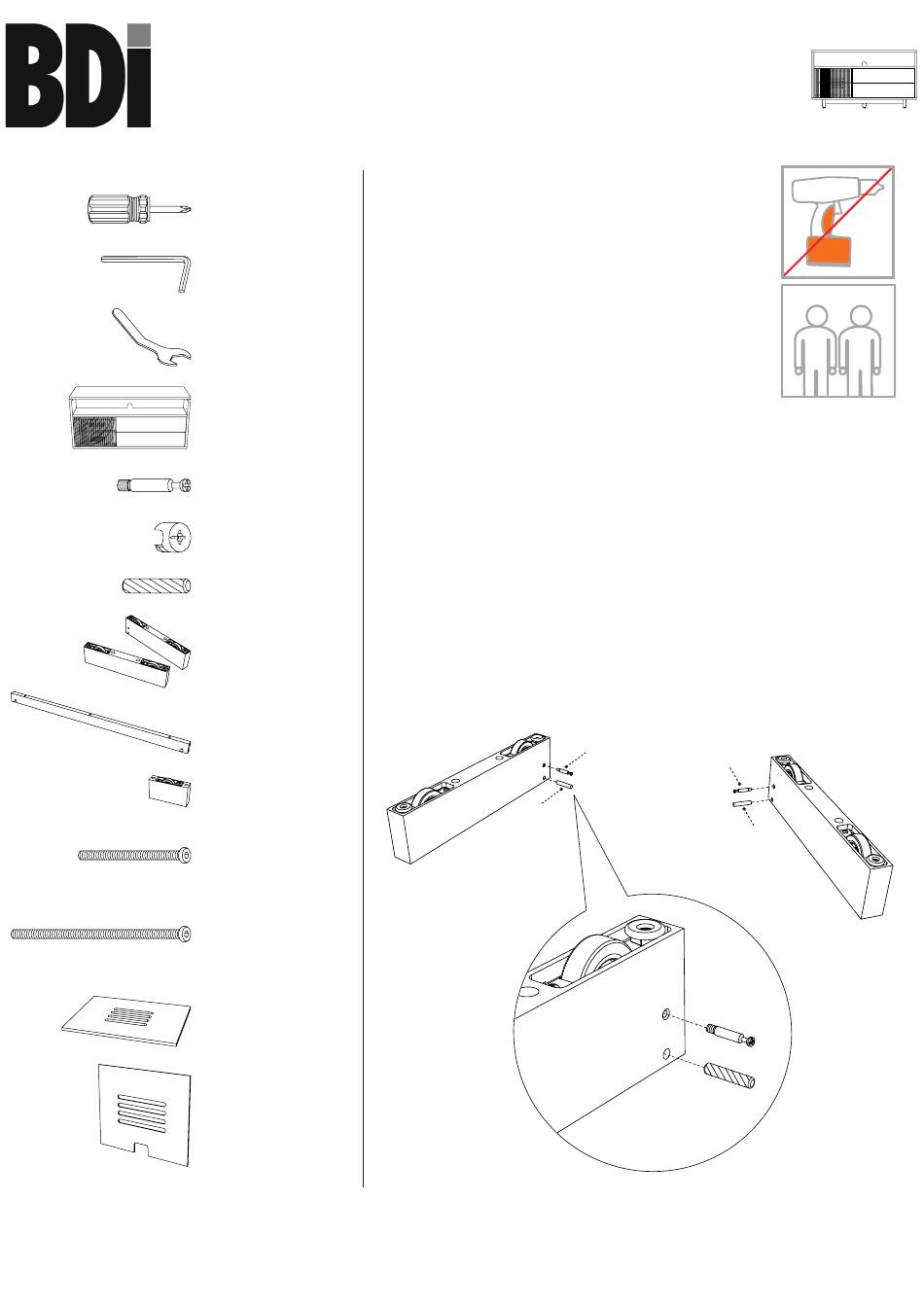

Component List
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents,
trade dress, and/or copyright laws.
BDI are trademarks of Becker Designed, Inc.
All Rights reserved. ©2014, BDI
Made in China. 8556REV020615v2
Vertica is engineered for easy assembly. Carefully
follow this procedure to prevent any damage.
A - Phillips Screwdriver
x 1
Placement and Maintenance
Vertica is designed for indoor use on level floors.
B1 - Hex Wrench
Clean wood veneer with a moist cloth.
x 1
B2 - Leveler Wrench
Step 1
x 1
Unpack and Identify
Unpack and identify the components at left. Note
that some components are shipped inside the
cabinet. The assembly workspace should be a non-
C - Cabinet x 1
marring surface such as carpet. For missing hardware pieces, please
contact BDI Customer Service at customerservice@bdiusa.com. For all
other concerns, please contact your BDI Retailer.
D - Cam Bolt x 2
E - Cam Fitting x 2
F - Wood Dowel x 2
Step 2
G - Side Legs x 2
Install and tighten Cam Bolts (D) into Side Legs (G) using Phillips
Screwdriver (A). Insert Wood Dowels (F) into corresponding holes of
Side Legs (G).
H - Base Stretcher
x 1
I - Center Leg x 1
J - 1/4-20 x 60 mm
Machine Screw
x 3
K - 1/4-20 x 100 mm
Machine Screw
x 6
L - Adjustable Shelf
x 1
M - Back Panel
x 1
a s s e m b l y i n s t r u c t i o n s
bdiusa.com
D
G
F
1
customerservice@bdiusa.com
TWO PERSON ASSEMBLY
D
F
G
D
F
G
Advertisement
Related Manuals for BDI Vertica 8556
Summary of Contents for BDI Vertica 8556
- Page 1 The assembly workspace should be a non- C - Cabinet x 1 marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. For all other concerns, please contact your BDI Retailer. D - Cam Bolt x 2...
- Page 2 Step 3 Carefully lay Cabinet (C) on its back. Attach Base Stretcher (H) to bottom of Cabinet (C) using Screw (J). Only hand tighten screws at this point. TWO PERSON ASSEMBLY J x 3 Step 4 Align Cam Bolt (D) and Wood Dowel (F) of Side Legs (G) into their respective holes in Base Stretcher (H).
- Page 3 Step 5 Insert Cam Fittings (E) into holes of Base Stretcher (H) with the arrow of the Cam Fitting (E) pointing outward on each end of the Stretcher. Tighten each Cam Fitting (E) clockwise using Phillips Screwdriver (A) until it no longer rotates.
- Page 4 Step 7 Position Cabinet right side up while carefully supporting drawer fronts to prevent drawers from sliding open. Install Back Panel (M) to the backside of the Cabinet (C) by inserting top edge in upper channel then tipping bottom edge forward and into lower channel. TWO PERSON ASSEMBLY The shelf pins located inside the left cabinet space may be repositioned,...
- Page 5 Step 9 Upon removal of the drawer slide screws, the drawer bodies may need additional adjustment. For alignment is located on the underside of the drawer body as shown in the illustration below. Opening your Doors and Drawers The Vertica collection incorporates push-to-open door and drawer mechanisms for a cleaner design aesthetic.
- Page 6 Optional Flat Panel TV Mount This BDI cabinet is compatible with BDI’s Arena Flat-Panel TV Mount #9972 (sold separately), with the following features: accommodates most TVs up to 65", 175 lbs • swivel allows rotating for optimal viewing • allows adjustable TV mounting height •...
- Page 7 CORRECT! Door is INCORRECT! Door is sitting squarely and evenly out of alignment with spaced on tops and sides. the rest of the unit. STEP 2 - Adjust Door Hinges (if needed) The door on your cabinet should be evenly spaced and should open/close freely without rubbing against the door frame.
