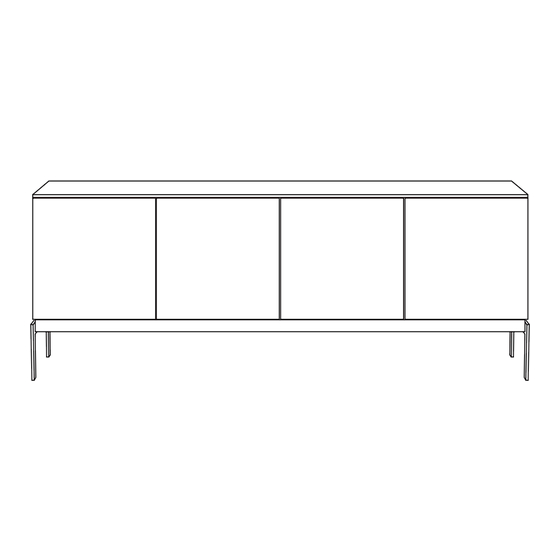

- Page 1 ELEMENTS 8777 & 8779 ® CONSOLE BASE INSTRUCTION MANUAL LET’S GET STARTED. DESIGN AL GLASS, JASON GUIDRY, AND LOUIS A. LARA...
- Page 3 Congratulations on the purchase of your Elements Media Cabinet from BDI. Your cabinet has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information that will ensure that you get the most out of your cabinet.
- Page 4 Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. Do not use power tools for the assembly of this product. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. PART #...
- Page 5 HARDWARE AND COMPONENTS HARDWARE AND COMPONENTS PART # DESCRIPTION Cabinet, 3-Door or 4-Door (shown)—Door Pattern Varies QUANTITY PART # PART # DESCRIPTION DESCRIPTION Sub-frame Leg Frame QUANTITY QUANTITY 4-DOOR ONLY 4-DOOR ONLY PART # PART # PART # DESCRIPTION DESCRIPTION DESCRIPTION Middle Shelf Side Shelf...
- Page 6 8 (H1) Screws using (T2) Hex Wrench. Make sure the red arrow on the (A2) Sub-frame T2-HEX WRENCH faces the same direction as the direction of the (C2) Leg Frames. H1-SCREW Red arrow 6 | BDIUSA.COM ELEMENTS 8777 • 8779—CONSOLE BASE...
- Page 7 2 PERSON TASK STEP 2. ATTACH BASE TO CABINET ASSEMBLY TRIPLE CABINET PART/DESCRIPTION NOTE: Do NOT fully tighten until all 8 (H2) Screws are started. T2-HEX WRENCH With help from another person, carefully position the (A1) Cabinet upside-down (as shown) or on its back.
- Page 8 The two (C5) Back Panels are removable and can slide towards the middle. To remove, lift up and pull the bottom edge out of its groove. To re-install, put the top edge of the back panel into the top groove, then drop the bottom edge into the bottom groove. 8 | BDIUSA.COM ELEMENTS 8777 • 8779—CONSOLE BASE...
-
Page 9: Fine Tuning
FINE TUNING ADJUSTABLE SHELVES — QUAD CABINET ONLY The shelf pins located inside all three cabinet PART/DESCRIPTION spaces may be repositioned using (T1) Screwdriver, allowing you to raise or lower (C3) T1-PHILLIPS Middle and (C4) Side Shelves to the desired SCREWDRIVER level. - Page 10 Door C & Door D here Door C Loosening SCREW 1 on this hinge will close the seam between Door C & Door D here Door A Door B Door C Door D 10 | BDIUSA.COM ELEMENTS 8777 • 8779—CONSOLE BASE...
-
Page 11: Care And Maintenance
While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please take care to avoid positioning your BDI cabinet in any area with extensive direct sunlight. -
Page 12: Warranty
WARRANTY BDI warrants to the original purchaser that for the below-stated warranty term, BDI will repair or replace any product, part, or component covered by this warranty that fails under normal use as a result of a defect in material or workmanship. BDI will repair or replace the aforementioned product, part or component with a comparable product, part or component.
