Placement and Maintenance
Your Venue console is designed for indoor use on level floors. Clean
glass with glass cleaner, and steel parts and wood veneer with a moist
cloth.
Venue is engineered for easy assembly. Carefully follow this procedure
to prevent any damage. Do not use power tools for assembly of this
product.
Step 1
Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing hardware
pieces, please contact BDI Customer Service at:
customerservice@bdiusa.com.
For all other concerns, please contact your BDI retailer.

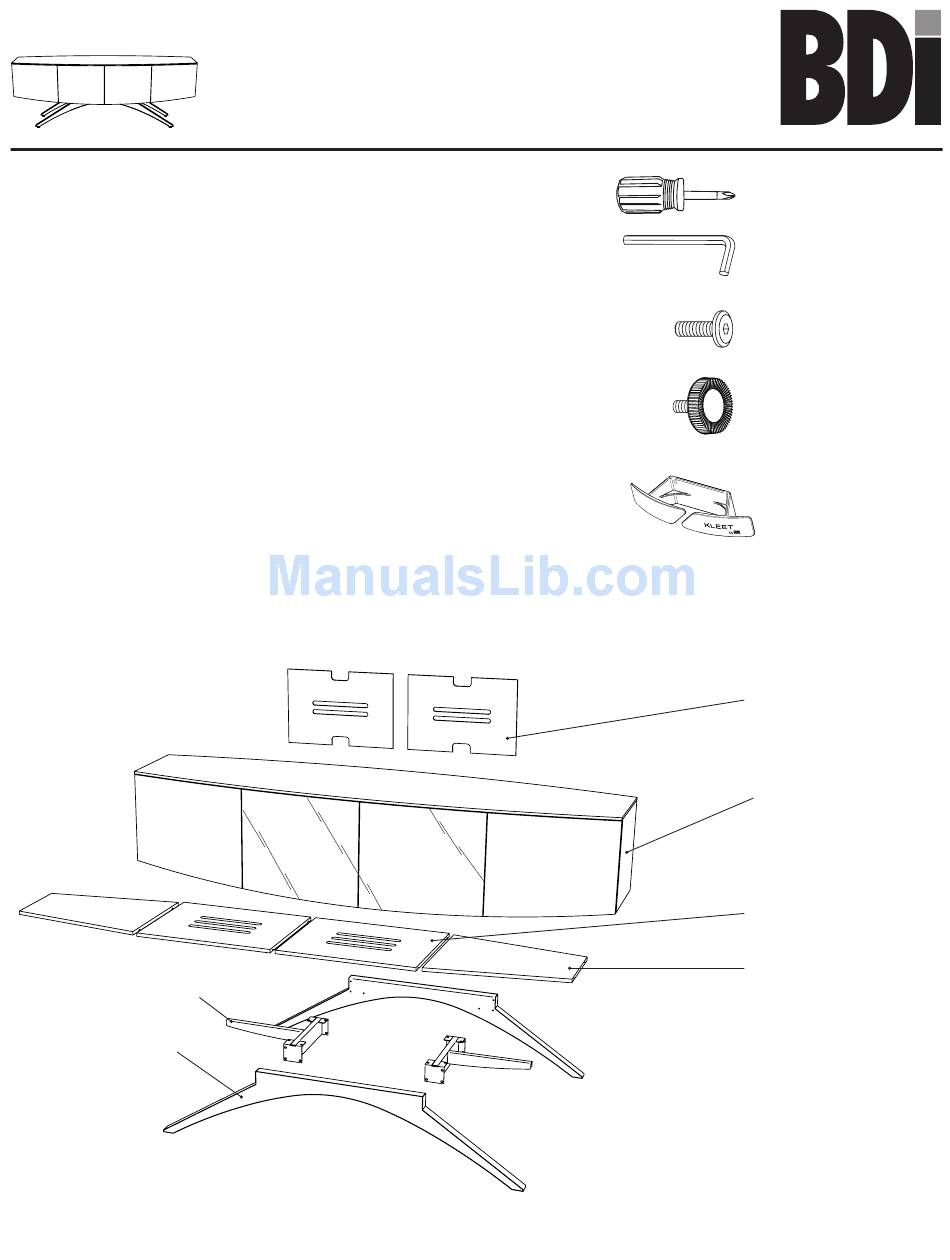

C1 Sub-frame x 2
C2 Leg Frame x 2
Designed by Louis A Lara.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Venue & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2016, BDI
Made in China. 08.02.2016 V1

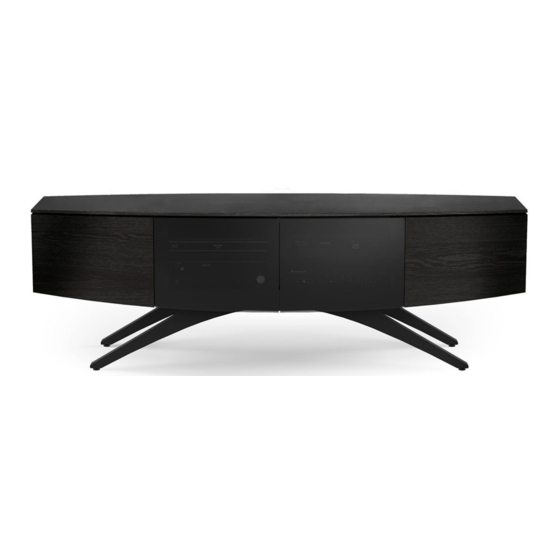

VENUE
8649G/8649W
™
MEDIA CONSOLE
bdiusa.com
customerservice@bdiusa.com
T1 Phillips Screwdriver x 1
T2 Hex Wrench x 1
H1 1/4-20 x 16 mm
Machine Screw x 20
H2 Leveler x 4
H3 KLEET™ Cord Wrap x 2
C5 Back Panels x 2
A1 Cabinet x 1
8649G - 2 wood / 2
glass doors
8649W - 4 wood
doors
C3 Middle Shelf x 2
C4 Side Shelf x 2
Advertisement
Related Manuals for BDI VENUE 8649G
Summary of Contents for BDI VENUE 8649G
- Page 1 Designed by Louis A Lara. These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Venue & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2016, BDI Made in China. 08.02.2016 V1...
- Page 2 Step 2 - Attach the 2 Sub-frames C1 to one of the Leg frames C2 with 6 Screws H1 using Hex wrench T1. Do NOT fully tighten yet. H1 Screw x 6 C1 x 2 Step 3 - Attach the second Leg Frame C2 to the Sub-frames with 6 screws H1. Do NOT fully tighten yet. H1 Screw x 6 bdiusa.com VENUE 8649 G/W...
- Page 3 Step 4 - Install 4 Levelers H2 into the threaded holes on the bottom of the Leg Frames. H2 Leveler Step 5 - Remove shelves from Cabinet. Remove any packing material that may be above the shelves. One at a time, remove the 4 internal shelves from the cabinet by lifting the edge (opposite the hinge side) upward and carefully pulling out.
- Page 4 Step 6 - With help from another person, carefully lay the Cabinet A1 on its top (upside down). Attach the base assembly to the bottom of the Cabinet A1 with 8 Screws H1 as shown using Hex Wrench T2. Once all screws have been started, fully tighten all base screws.
- Page 5 Step 8 - Adjustable Shelves Reinstall the shelves. The shelf pins located inside all 4 cabinet spaces may be repositioned using Screwdriver T1, allowing you to raise or lower the shelves C3 and C4 to the desired level. bdiusa.com VENUE 8649 G/W customerservice@bdiusa.com MEDIA CONSOLE...
- Page 6 Fine tuning your new BDI Venue Home Theater Furniture These steps are to be followed after you have unpacked and completed the simple assembly instructions for your AV cabinet. Due to jostling in freight or perhaps an uneven floor, the doors on your cabinet may not appear to be in perfect alignment.
