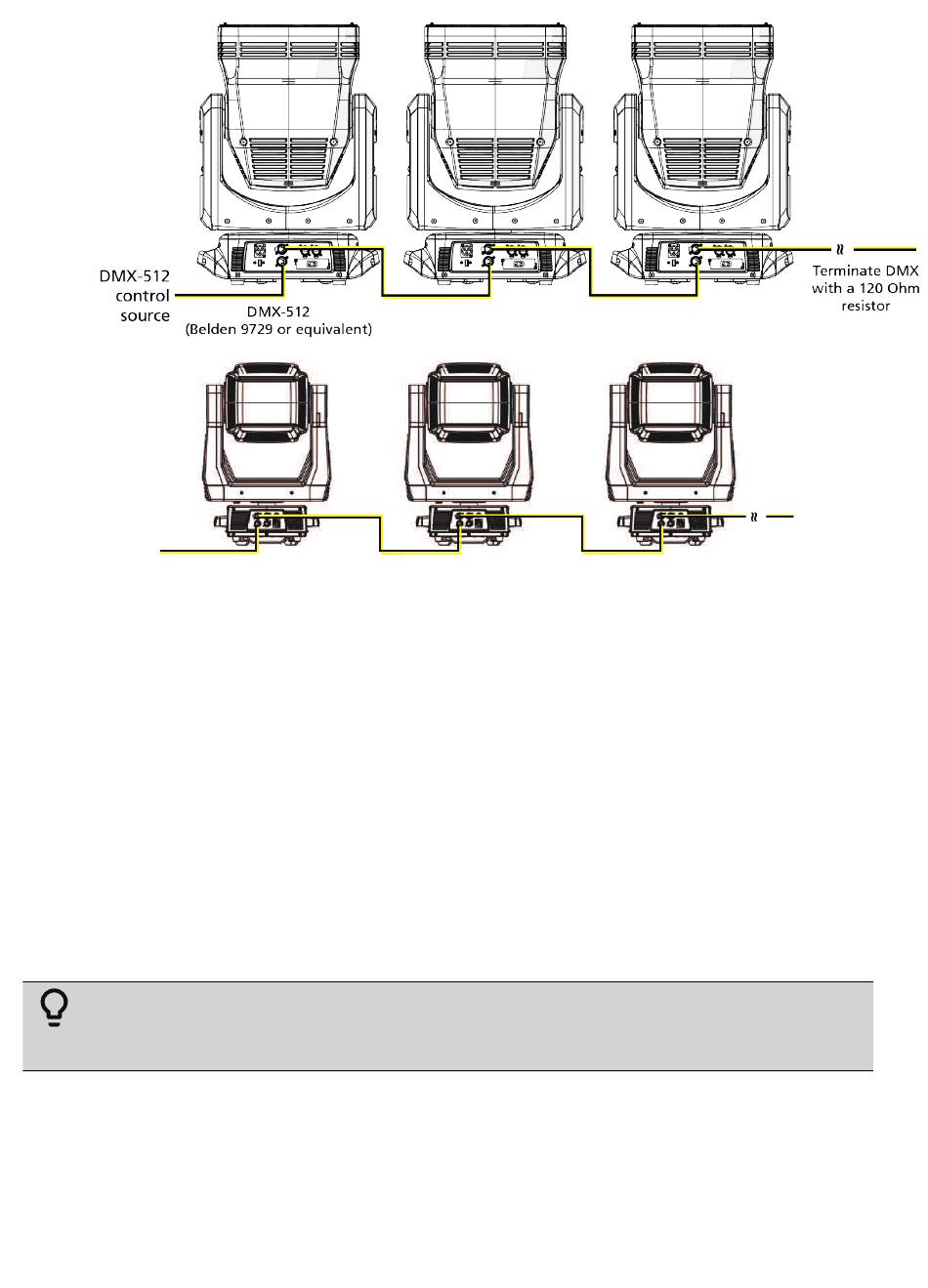

DMX-512
control
source
(Belden 9729 or equivalent)

Terminate DMX

Use a DMX terminator or install a resistor on the last fixture of the DMX control run to prevent
corruption (data reflection) of the digital control signal by electrical noise.
A DMX terminator is an XLR plug with a 120 Ω resistor connected between pins 2 and 3 that
can be installed into the DMX output receptacle of the last fixture in the DMX control run.
Contact your authorized dealer or ETC for ordering information (etcconnect.com/contactETC),
or purchase an XLR DMX terminator from the ETC Online Shop (shop.etcconnect.com).

Set the DMX Start Address

Give each fixture a unique DMX starting address so that the correct fixture responds to the
control signals. This DMX start address is the channel number from which the fixture starts to
"listen" to the digital control information sent out from the control source.
Modify the fixture DMX start address on the user interface, located on the upper enclosure.
See DMX Address on page 14
Example:
of the first fixture to 1, you could set the second fixture to 37 (36+1), the third to 73
(36+37), and so on.

DMX Channels

The current DMX channel map for the SolaWash 2000 can be found on the ETC website:
etcconnect.com/Products/High-End-Systems/Lighting-Fixtures/SolaWash/2000/Documentation.aspx.
12
DMX-512
.
The SolaWash 2000 has 36 channels. If you set the DMX starting address
terminate DMX
with a 120 Ohm
resistor
SolaWash 2000 User Manual
