Diagnostics and trouble shooting guide
Your game comes with extensive diagnostics to aid you in keeping your game running correctly.

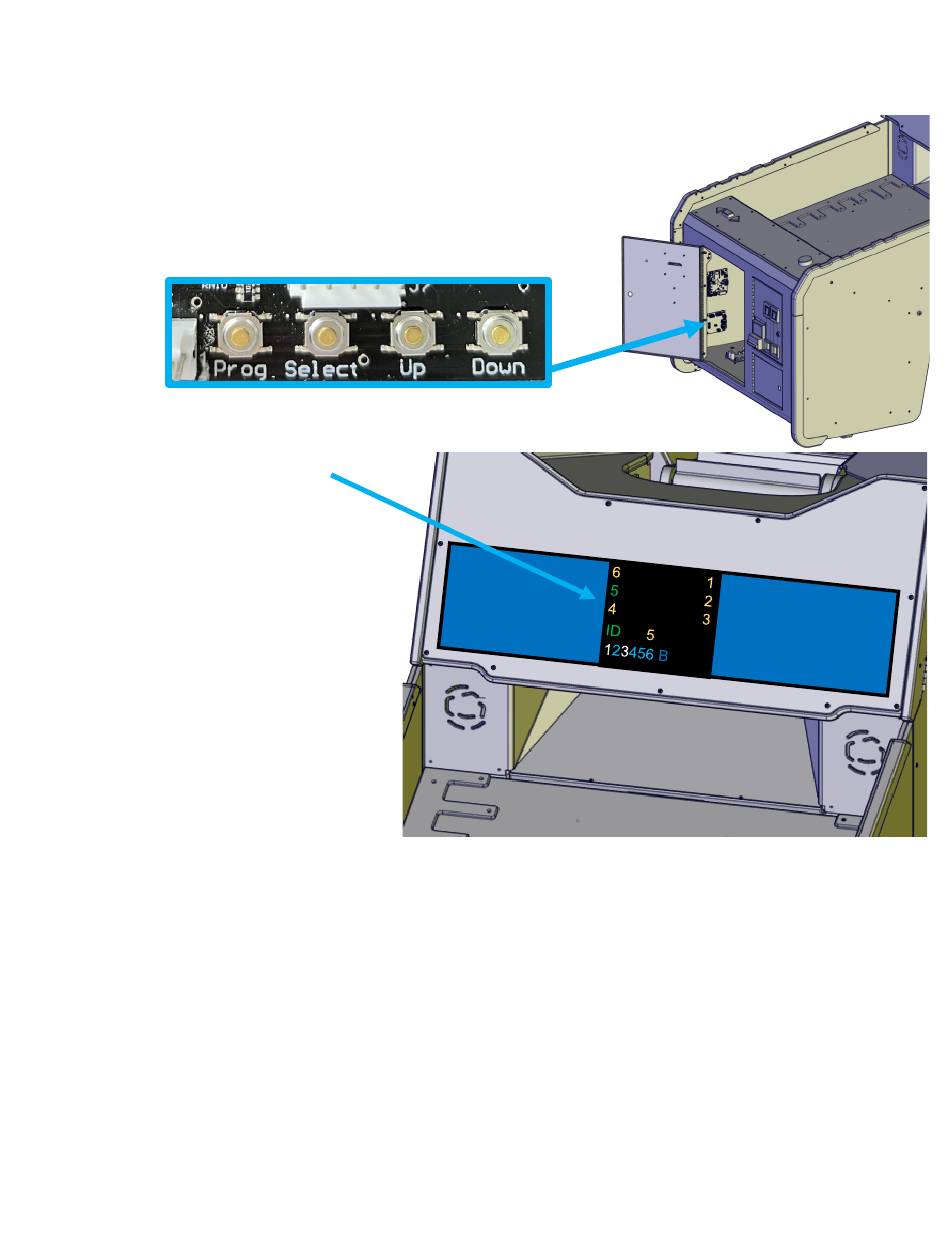

To access the diagnostics,
Press the "SELECT" and "DOWN" buttons at the same time in attract mode.
GAME MUST BE IN ATTRACT MODE TO ENTER DIAGNOSTICS
In diagnostics, the front display
will show the various statics
needed to diagnose your game.
The target ID's are listed as they are
installed in the game. They will light
yellow if the main board is
communicating with them. Any
showing red means they are seen
by the main board. Check the
network cables for broken or bad
connections.
Target ID will turn green to indicate
it is currently select.
You will also notice the numbers under "ID". This indicates the proper dip switch setting for this
target board 's location. IT IS NOT READING THE DIPSWITCHES! It is only showing you the
proper settings for that location. White means it should be set to on while blue means it should be
set to off.
Next to the dipswitch settings, it will show you which RGB color the displays should be showing. It
will cycle from Red to green to blue and repeat.
"PRESS TO ENTER INITIALS" = Change sensor board number.
"LEFT" = Swing target arm inward (only on sensor 1 through 6).
"RIGHT" = Swing target outward (only on sensor 1 through 6).
"SW1" = Status for switch 1. Visible = Logic low (ground), invisible = Logic high.
Press the "Start" button and the game will dispense 5 tickets.
