Innovative Concepts in Entertainment QUARTERBACK PRO Manual page 14

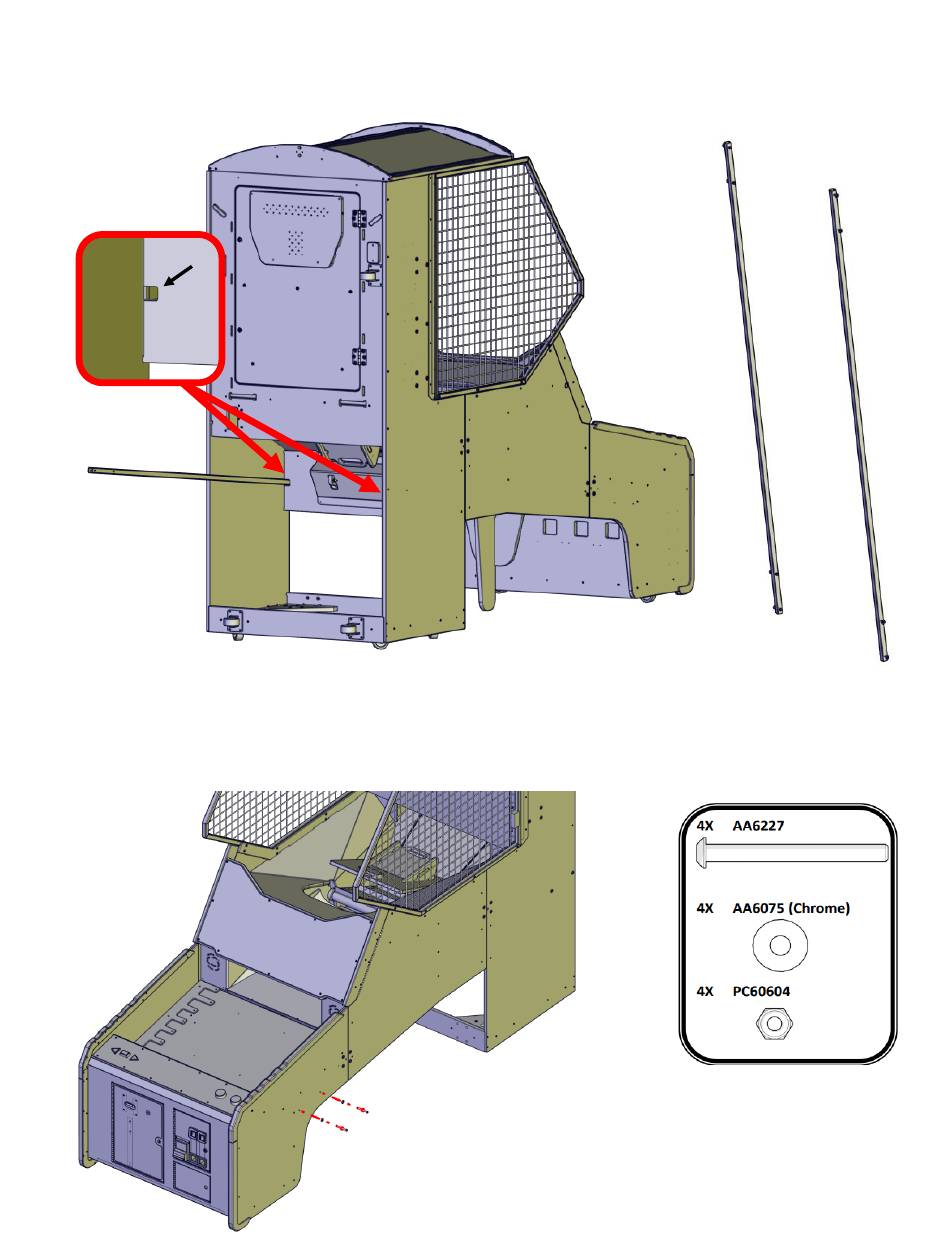

STEP 6:
At each side, slide one DB1034-P802 rail into each slot making sure the bolt holes are against the
side of the wall
Insert
here
DB1034-P802
STEP 7:
In both cabinets, Insert two AA6227 bolt and washer at the front, on the outside and two PC60604
nylon nuts on the inside. DO NOT TIGHTEN AT THIS TIME. LEAVE THEM LOOSE.
The bolt should go through the steel tube for both sides.
14
