Summary of Contents for Innovative Concepts in Entertainment Tons Of Tickets

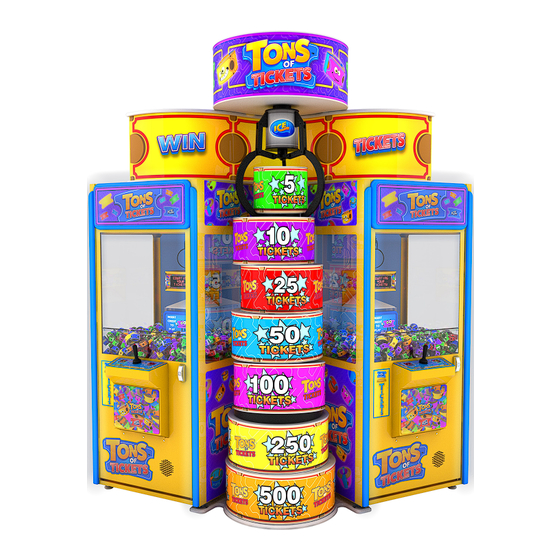

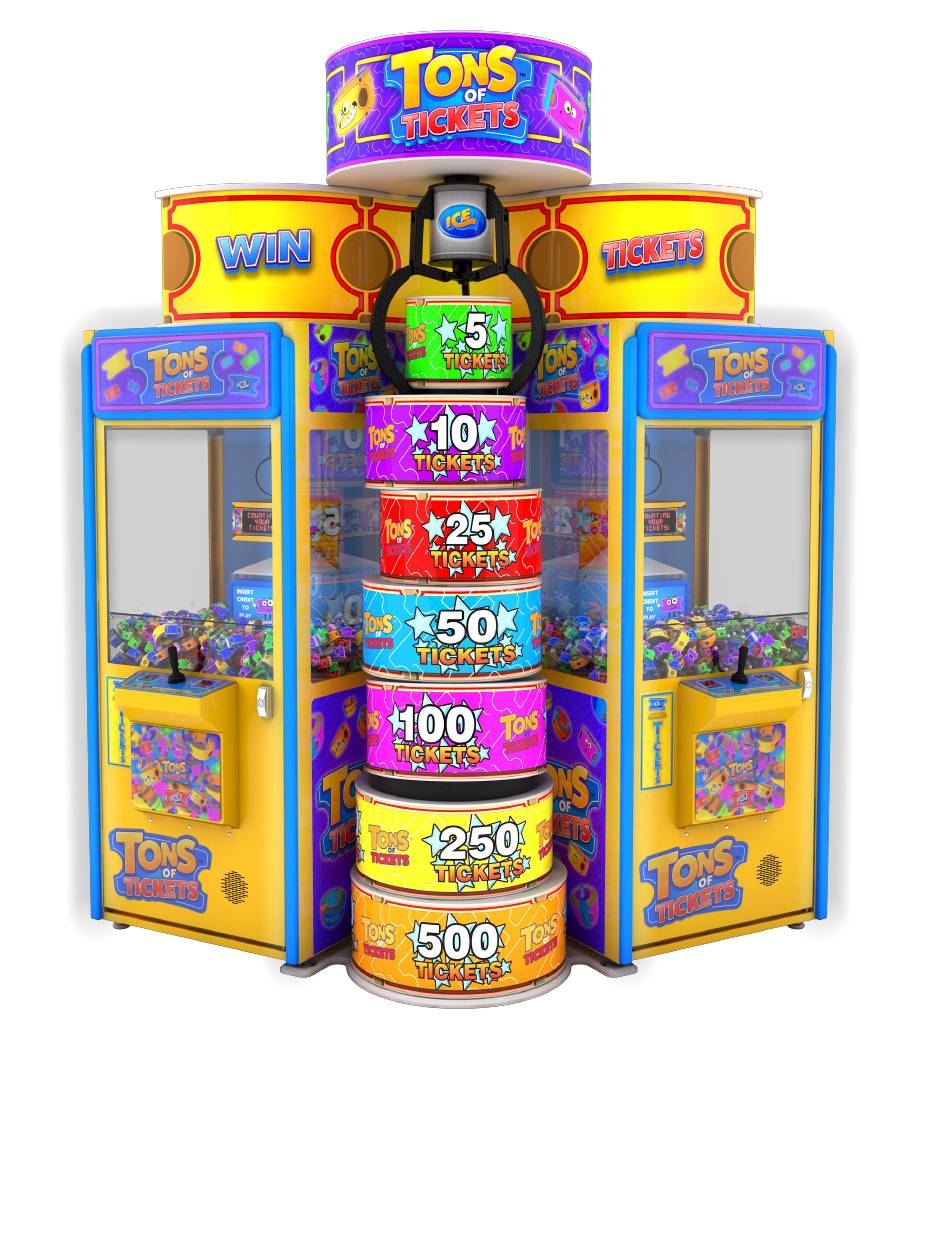

- Page 1 Service Manual Innovative Concepts in Entertainment 10123 Main Street Clarence, New York 14031...
-
Page 2: Table Of Contents
Table Of Contents SAFETY AND WARNINGS BEFORE YOU BEGIN AC Power Information Game Setup Assembling the Ticket Tower Programming Options Error codes Theory of Operation - How does the crane work? Crane PCB technical Details Testing the Coil Claw / Crane/ Wagon Part numbers Wagon Assemblies Crane Assemblies Claw Assemblies... -
Page 3: Safety And Warnings Before You Begin
SAFETY AND WARNINGS BEFORE YOU BEGIN WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS. -
Page 4: Game Setup
GAME SETUP Step 1: Located at the front of the crane usually attached to the joystick are the keys to the crane. The cash box contains any hardware kit and power cords. The manual is located here too. Step 2: Insert the key and turn. - Page 5 Step 3: The game includes a box full of ticket bundles. These bundles are specific to the cost of play. If you choose to change the cost of the game, you must also update the ticket bundles to match. When placing the bundles into the crane, it is recommended to level them as best as possible.
-
Page 6: Assembling The Ticket Tower
Assembling the Ticket Tower Step 1: Locate the center assembly and note that at the floor of the assembly are alignment holes to insert the crane’s castors. On the two castors that will go into the ticket tower, turn them so that they are all the way up again the bottom of the cabinet. - Page 7 Step 2: Place the Ribbon assembly top. Use three AA6004 bolts to attach each side of the ribbon assembly to the crane cabinets. Step 3: Place the topper assembly on top. Align the mounting holes at the back with the topper. Note the plug at the bottom, this plugs into the claw assembly.
- Page 8 Step 4: Use six 6584 Allen heads and six 6212 washers to attach the topper to the ribbon assembly. Step 5: Remove one side of the plastic graphic to unravel it to access the inside of the topper. Then using one AA6085 bolt and AA6075 washer attach the topper to the top of the large claw assembly on top of the ticket stack.
- Page 9 Step 7: Locate the AC power cord and plug this into the AC power module. Step 8: Plug the +12 volt supply connection from the main harness to the ribbon assembly.
-
Page 10: Programming
Programming Options Open the door to access the programing button. The Acct button is also located on this panel. The volume knob is located at the top of this panel. The AC power switch is located at the bottom of the AC cord. - Page 11 How to Program your Crane: Joystick Mode The crane must be powered on and in attract mode. It will not enter programming mode when in play. Next back Unlock and open the front door to access the control panel drawer and press the “PROG” button. The Option Number control panel display will show “PP”...
- Page 12 Programming Options for Tons Of Tickets Description Default Min Max Do not change - Factory setting Game Cost - How many pulses to start a game. MUST MATCH TICKET BUNDLE! Coin 2 Cost - How many more pulse coin line 2 is worth to coin line 1.
-
Page 13: Error Codes
ERROR CODES: 3 = L/R Motor ; Left and Right movement is not functioning. 4 = F/B Motor ; Forward and backwards movement is not functioning. 5 = Up ; Claw moving up movement not functioning or up switch not seen. 6 = Down ;... -
Page 14: Crane Pcb Technical Details
Crane Revision 7 - PCB Technical Details LED indicators: D4 - SDCARD’s write protect switch status. D5 - SDCARD present or not. D6 - Power to SDCARD. D17 - Central Processor’s heart beat. D18 - Indicates when it is reading the SDCARD. D19 - Not used. -
Page 15: Testing The Coil
Testing the coil Unscrew the claw harness counter-clock wise from the crane assembly and disconnect the harness. Looking at the plug on the cable, locate either pin 1 or 4. Place either probe in either pins. Use the other probe and insert this into either pin 3 or pin 2. -
Page 16: Claw / Crane/ Wagon Part Numbers
Wagon And Crane Assembly GG1255X Crane Assembly (part of the wagon assembly) Claw Assembly GG1078EX... -
Page 17: Wagon Assemblies
Wagon Assembly Part numbers CS2008 motor AA6365 stopper CS1050 pulley AA6341 CS3041 CS4001 bolt belts pulley CS3030 pulley CS3041 pulley AA6341 bolt SK624 CS2008 CS1050 motor CH1052 pulley magnet CH3002F Magnet cover CS4003 belts AA6434 Grub screw for CG2012 pulleys Sensor CS3041 CS3030... -
Page 18: Crane Assemblies
CS3032 Pulley WA4011 grummet CS2008 Motor E08422 Switch CH1052 magnet CS1037 Plate SK624 CH3002F Magnet cover... -
Page 19: Claw Assemblies
E08452 Switch CS1066 Spring AA6346 CS1036 Plate cs3033 Spindle AA6335 Bolt CS1033 AA6303 bolt Leveler... - Page 20 Crane Assembly Part Numbers AA6093 AA6004 AA6245 GG1078E-P800 CG3137...
- Page 21 AA6250 AA6245 AA6093 AA6093 GG1078E-p800 CG3137 AA6258...
- Page 22 AA6004 AA6004...
-
Page 25: Warranty
I.C.E. Inc. We cannot be responsible for the quality, suitability or safety of any non-I.C.E. part or modification (including labor) that is performed by such a distributor. Innovative Concepts in Entertainment 10123 Main St.
