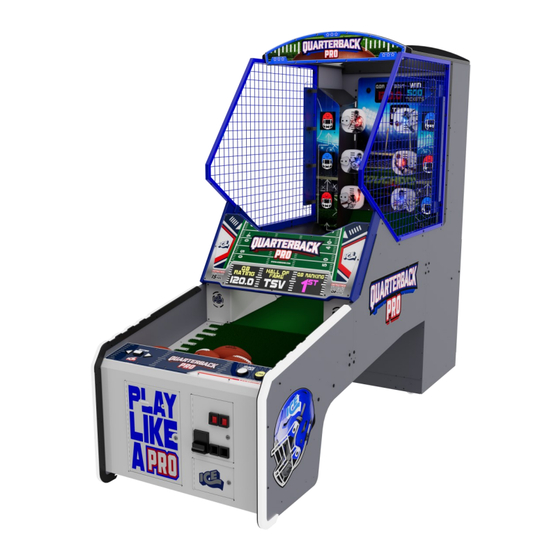

- Page 1 Quarterback Pro Manual Innovative Concepts in Entertainment 10123 Main Street Clarence, New York 14031 (716) 759-0360 Parts and Service WWW.ICEGAME.COM...
- Page 2 Table Of Contents SAFETY AND WARNINGS BEFORE YOU BEGIN AC Power Information UCL CONNECTION SINGLE GAME ASSEMBLY 5 - 10 TWO GAME ASSEMBLY WITH MARQUEE 11 - 26 VOLUME ADJUSTMENTS HOW TO ENTER PROGRAMMING PROGRAMMING OPTIONS 28 - 29 DIAGNOSTICS ACCESSING CONVEYOR CONTROL PCB AND TARGET PCB ASSEMBLIES 32 - 40...
- Page 3 SAFETY AND WARNINGS BEFORE YOU BEGIN WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS.
- Page 4 Universal Card link Connection See Wiring Insert for wire colors and which connections are used. Pin 1. +12v- Supply to Card System = Minimum of 2A available for the card systems and a Max of 3A. Pin 2. Coin 1 - input to the game PCB. Pin 3.
- Page 5 What is included? QB3050CX Podi- QB3090X Roof Service QB3024X Manual Wire cover (see step 2) QB9001 QTY10 FB3001L 8 for use in game 2 spares. CG2027 DB1034-P802 AA6105AF QTY 2 Wrench Hardware box QB6000X...
- Page 6 Single Game Install - NO MEGA MARQUEE! Step 1: MAKE SURE YOU HAVE REMOVED THE ROOF AND PODIUM FIRST! Remove the skid cleats that are around the wheels. Remove the temporary floor that held the podium to the cabinet during shipping. Then slide the cabinet off the skid. With a helper, stand the cabinet up right.
- Page 7 STEP 3: Attach the roof to the cabinet using two AA6220 Allen bolts and washers on each side as shown. STEP 4: Using the latch tool, turn both latches on the podium 1/4 turn each. Then place the podium onto the cabinet. The latch will hold it in place while you latch both sides. Latch both sides.
- Page 8 STEP 5: At each side, slide one DB1034-P802 rail into each slot making sure the bolt holes are against the side of the wall Insert here DB1034-P802 STEP 6: Insert two AA6227 bolt and washer at the front from the outside and two PC60604 nylon nuts on the inside.
- Page 9 STEP 7: Insert two AA6227 bolts and washers at the back on the outside and two PC60604 nylon nuts on the inside. The cabinet center will push down on the pole causing the back bolts to be very tight when installing. Have a helper lift up on the center of the cabinet (see below) or use a power driver to drive the back screws in slowly.
- Page 10 Attach the wire channel cover. The cover snaps into place. Connect roof power, route wires through conduit: Finished with assembly.
- Page 11 Two Game Install With MEGA MARQUEE! Step 1: MAKE SURE YOU HAVE REMOVED THE ROOF AND PODIUM FIRST! Remove the skid cleats that are around the wheels. Remove the temporary floor that held the podium to the cabinet during shipping. Then slide the cabinet off the skid. With a helper, stand the cabinet up right.
- Page 12 STEP 3: Remove the twelve Phillip screws holding the front marquee on the roof. Remove the marquee cover. Then remove the eleven Philips holding the LED plastic mounts. Then remove the LEDs. The two pin connector can be pushed inside the roof assembly.
- Page 13 STEP 4: Attach the roof to the cabinet using two AA6220 Allen bolts and washers on each side as shown. STEP 5: Using the latch tool, turn both latches on the podium 1/4 turn each. Then place the podium onto the cabinet. The latch will hold it in place while you latch both sides. Latch both sides.
- Page 14 STEP 6: At each side, slide one DB1034-P802 rail into each slot making sure the bolt holes are against the side of the wall Insert here DB1034-P802 STEP 7: In both cabinets, Insert two AA6227 bolt and washer at the front, on the outside and two PC60604 nylon nuts on the inside.
- Page 15 STEP 8: Remove the bolt and washer shown below on each cabinet. It is below the cage. A spacer will be installed later that will require this hole for mounting. STEP 9: Securing the outside bars (DO NOT install hardware to the insides yet! Position both cabinets close together.
- Page 16 STEP 10: Locate the U-Shape metal support bracket QB1350. Attach this to one of the cabinet’s back using two AA6227 bolts with washers on the inside of the bracket and on the inside of the cabinet use two PC60604 nylon nuts. Do not tighten the bolts holding the bracket at this time. Only tighten the front hardware holding the bar to the cabinet.
- Page 17 STEP 11: Slide the other cabinet so that you can install the back hardware onto the u-shape bracket. Use two AA6227 bolts and washers inside the bracket and two PC60604 nylon nuts on the inside. Tighten front hardware only! LEAVE BACK LOOSE! 2X AA6227 2X AA6075 2X PC60604...
- Page 18 STEP 12: Assembly the front spacer together using two AA6211 Allen bolts and AA6212 washers. STEP 13: Slide the spacer assembly between the front of the two cabinets.
- Page 19 STEP 14: At the front and from underneath the cabinets, insert one QB1351 Tie bolt and AA6212 washer through the inside front latches between the two cabinets. The nylon nut is attached to the bolt for shipping purposes. Undo the bolt before inserting it into the latch.
- Page 20 STEP 15: Reinstall the AA6220 Allen bolt and washer you removed in a previous step to both cabinets. STEP 16: Make all electrical connections between front and rear cabinets on both games. Each connector has a different number of conductors to discourage mix-ups. ***Do not forget the network cable***...
- Page 21 STEP 17: Attach the wire channel cover to both games. The cover snaps into place. Then connect the roof power and route wires through conduit:...
- Page 22 STEP 17: Install the marquee frame to the cabinet using eight AA6220 Allen bolts and eight AA6212 washers.
- Page 23 STEP 18: Install the main assembly to the cabinet using four AA6220 Allen bolts and eight AA6212 washers. STEP 19: Slide the top assembly onto the main assembly tabs shown below.
- Page 24 STEP 20: Secure the top assembly using one AA6220 Allen bolt and AA6212 washer. STEP 21: Attach the left and right helmets to the main assembly. Connect the two pin harness and ensure the latch engages when pushing down onto the hooks. The latch will lock them into place.
- Page 25 STEP 22: Lift the center display onto the slots. Connect the network cable, power and ground. STEP 23: Run both network lines from the marquee to both games at the front. Go through the backside of the podium. Stick tabs, clips, and wire wraps are provided to route the wires to the front podium.
- Page 26 STEP 24: Connect the other end of the network lines to each game’s main board. Use any open RJ-45 connector.
- Page 27 How to adjust the volume. Open the front door to access the amplifier board. The master volume control is at the opposite end of the on/ff switch. How to enter programming options. Open the front door to access the operator board. You will find four buttons shown below. To enable programming mode, Press the “Prog”...
- Page 28 Option Min Default Max Inc Description Attract Time Sets the time between attract sequence and silence. Channel1 Game/Voice sound volume adjustment. Channel2 Background music volume adjustment. Coin1 Cost of play in pulses. How many pulses the DBV outputs per dollar. Ticket Multiplier 0 = Tickets off, 1 = 1 for 1 ticket, 2 = 1/2 tickets.
- Page 29 How to configure different types of games. No money required to start a game. Coin 1 = 0 Disable tickets. Ticket Multiplier = 0 Pay out only 1/2 the tickets owed. Ticket Multiplier = 2 Free game instead of bonus tickets. Bonus tickets = 50 &...
- Page 30 Diagnostics and trouble shooting guide Your game comes with extensive diagnostics to aid you in keeping your game running correctly. To access the diagnostics, Press the “SELECT” and “DOWN” buttons at the same time in attract mode. GAME MUST BE IN ATTRACT MODE TO ENTER DIAGNOSTICS In diagnostics, the front display will show the various statics needed to diagnose your game.
- Page 31 Accessing the PS2033X - It controls the conveyor. Open the control panel by unlocking the lock at the side. Accessing the Target boards and motors Open the back door by unlocking the lock at the back. Dipswitches are shown for each target board location.
- Page 32 Electronics location and part numbers. DB2035X FE2006X E02010X - Fuse Board, 3 per game. DB2035X - Front operator board. DB2034X - Main board. FE2006X - Amplifier board.
- Page 33 Conveyor part numbers breakdown.
- Page 36 Target tower part numbers breakdown.
- Page 39 Target assemblies part numbers breakdown. QB1010X QB1011X...
- Page 43 I.C.E. Inc. We cannot be responsible for the quality, suitability or safety of any non-I.C.E. part or modification (including labor) that is performed by such a distributor. Innovative Concepts in Entertainment 10123 Main St.
